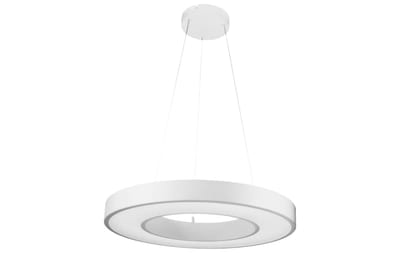

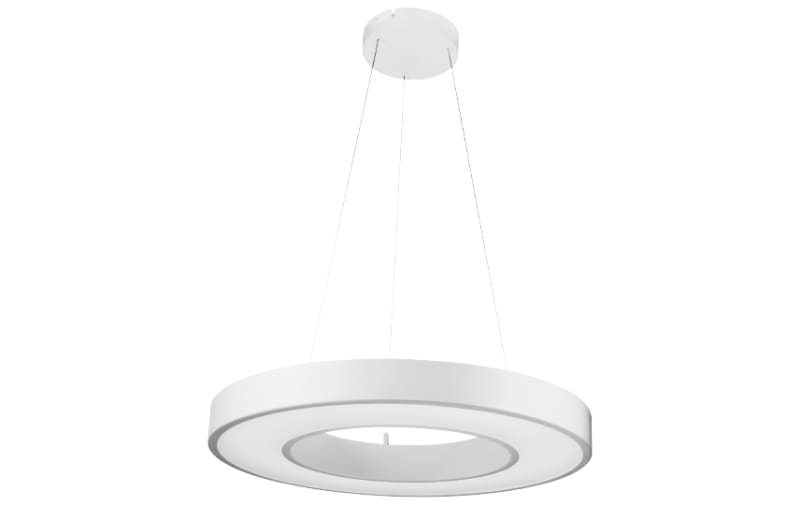

Circulus MAXI Pendant White 30W/840

SG Armaturen 214023 CIRCULUS MAXI PENDANT WHITE 4000K 26W, RA>80, Class In, IP20, L80/B20, SDCM 3, A++.

Manufacturer part number (MPN)

214023

EAN / GTIN

7021982140235

Sales unit

pcs

Package quantity

2 pcs

Power

30 W

Efficacy

132 lm/W

Lumen

3160lm

IP Class

IP20

Colour temperature

4000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L70/B10>

Mounting

Suspended, Indoor

System wattage

24W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 19, B16: 30, C10: 31, C16: 51

Type of light source

LED

Luminous flux

3160lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Opal

Beam angle

100°

UGR

UGR<25

Type

Trailing edge

Luminaire class

Class I

Contains light source of energy class

D/D

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Steel

Colour

White (RAL 9003)

Optics

Acrylic (PMMA)

Connection

Screwless terminal block

Height (mm) H

55

Diameter (mm) D

550

Weight (kg) gross/net

6.5 / 5.519

Packaging dimensions (mm)

570 x 557 x 83

Operation by Bluetooth

No

Device emplacement

Indoor positioning

Compatible with Casambi

No

With movement sensor

No

Nominal operation time

8–12

RAL-number

9003

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Glass opal

Type of grid

Matt

Voltage type

AC

Nominal voltage

220–240 V

Type of control gear

Not required

With control gear

No

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

Yes

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Light distributor

Refractor lens

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Direct-/indirect proportion separately controllable

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for lamp power

24 W

Max. system power

24 W

Rated luminous flux according to IEC 62722-2-1

3410 lm

Colour of light

White

Luminaire efficacy

114 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

22.9

Power factor

0.9

Constant light output (CLO)

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

550 mm

Height/depth

55 mm

Length

550 mm

Diameter

550 mm

With suspension

Yes

Pendant length

2000 mm

Type of wiring

Suitable for loop-through wiring

HS Code

9405.11

• EAN 7021982140235
• SAP 1200380760
• Code 82400013
