SG Armaturen

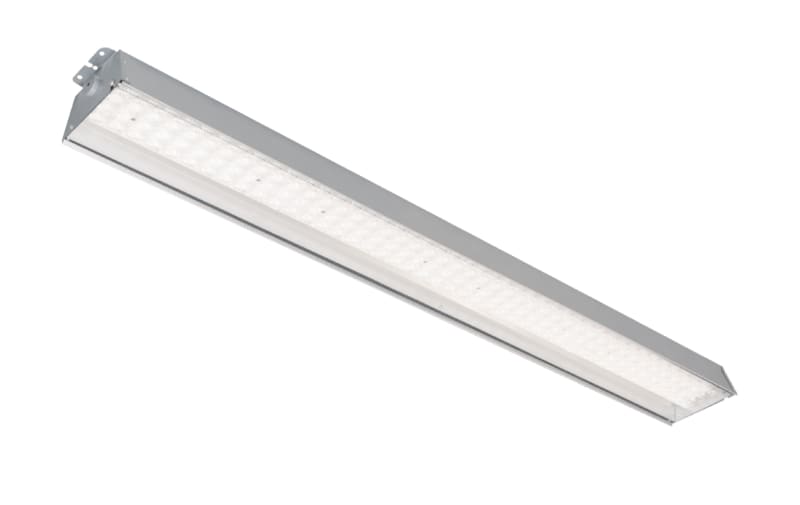

Arena ECO 1200 46W/840 WIDE DALI
Part number607016EAN / GTIN7021986070163HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 607016 ARENA ECO 1200 WIDE 7000lm 4000K DALI, 46W, Ra>80, SDCM:3, Class In, IP23, 100.000, L80/B20>.
Technical Specifications
- Manufacturer part number (MPN)
- 607016 EAN / GTIN: 7021986070163 Sales unit: pcs Package quantity: 4 pcs Power: 46 W Efficacy: 154 lm/W Lumen: 7100lm Wattage: 46W IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 46W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 40 Leakage current (mA): 0.30 Light source included: Yes Luminous flux: 7100lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Beam angle: 90° UGR: UGR<25 Photobiological safety: RG 1 Type: DALI-2 Luminaire class: Class I IK Class: IK10 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Steel Optics: Acrylic (PMMA) Module: 1200 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1184 Width (mm) W: 134 Height (mm) H: 72 Weight (kg) gross/net: 3.7 / 3.2 Packaging dimensions (mm): 1192 x 76 x 143 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986070163
- SAP 1200685154
- Code 83342519
Product Documentation
Document preview: Arena ECO 1200 46W/840 WIDE DALI (607016) — Specification sheet
More from SG Armaturen
SG Armaturen
Exclusive MIDI Black 26W/930 DALI
902629
SG Armaturen
NEMO Siriak 3000K (630075)
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320527)
SG Armaturen
Ecoline Office 1200 28W/840
8246089667
SG Armaturen
Jupiter PRO White 60° 25W/930 DALI
960310
SG Armaturen
Hovden MINI Corten 8W/8300 36°
630079
SG Armaturen
Tanto White 11,5W/830 IP65 Twilight
641544
SG Armaturen

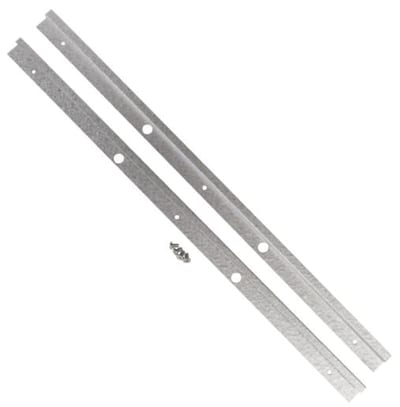

Sense Concealed ASYM Bracket T-RAIL
