SG Armaturen

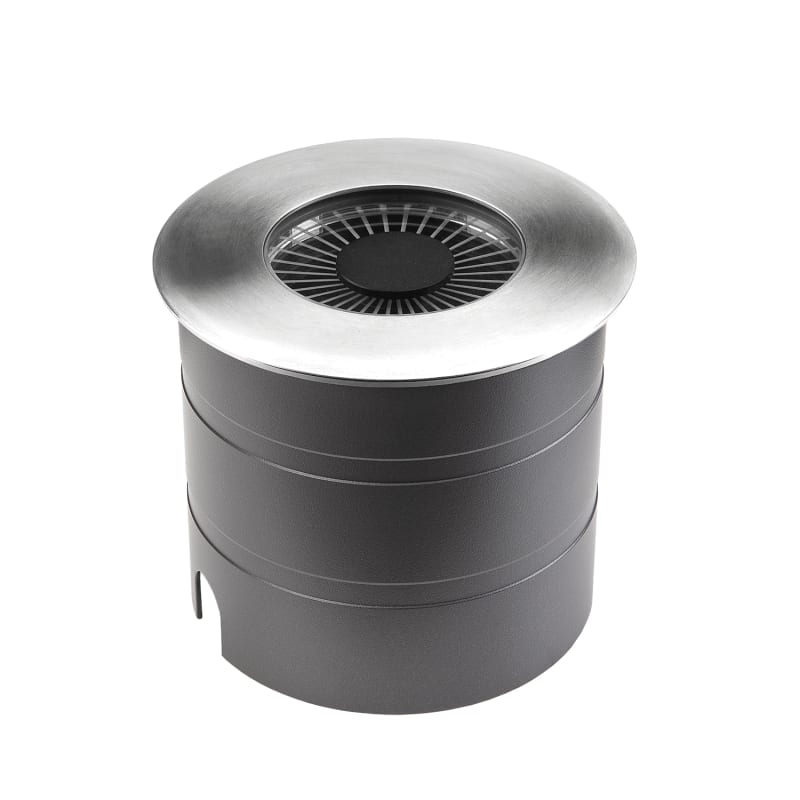

NEMO Siriak 3000K (630075)
Part number630075EAN / GTIN7021986300758HS code9405.42
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630075 NEMO SIRIAK 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 630075
- EAN / GTIN
- 7021986300758
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Colour temperature
- 3000 K
- Efficacy
- 6 lm/W
- Lumen
- 24lm
- IP Class
- IP67
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 4W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 115, B16: 184, C10: 115, C16: 184
- Type of light source
- LED
- Luminous flux
- 24lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Lens
- Visible flicker (PstLM)
- 0
- Stroboscopic flicker (SVM)
- 0.01
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK10
- Contains light source of energy class
- F
- Housing
- Aluminium and stainless steel
- Optics
- Glass
- Cable
- Cable 1m
- Height (mm) H
- 100
- Diameter (mm) D
- 110
- Cut-out (mm)
- 98
- Weight (kg) gross/net
- 1.111 / 1.01
- Packaging dimensions (mm)
- 120 x 120 x 120
- Protection class according to IEC 61140
- I
- Width
- 110 mm
- Outer diameter
- 110 mm
- Lamp holder
- None
- Conductor cross section
- 1 mm²
- Housing colour
- Anthracite
- Dimmable
- Yes
- Voltage type
- AC
- Suitable for lamp power
- 4 W
- Type of control gear
- LED operating device voltage-controlled
- Adjustable
- No
- Colour rendering index CRI
- 80-89
- Built-in diameter
- 98 mm
- Number of poles
- 3
- Height/depth
- 100 mm
- Lamp type
- LED not exchangeable
- Electrical connection with connector system
- No
- Impact strength
- IK10
- Over rollable
- Yes
- Max. surface temperature
- -25 °C
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP67
- With light source
- Yes
- Max. load
- 750 kg
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- 21-40° - Medium beam
- Max. system power
- 4 W
- Rated luminous flux according to IEC 62722-2-1
- 24 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Luminaire efficacy
- 6 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Dimming DALI-2
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Compatible with Casambi
- No
- Built-in height/depth
- 100 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986300758
- SAP 1200685134
- Code 83321673
Product Documentation
Document preview: NEMO Siriak 3000K (630075) — Specification sheet
