SG Armaturen

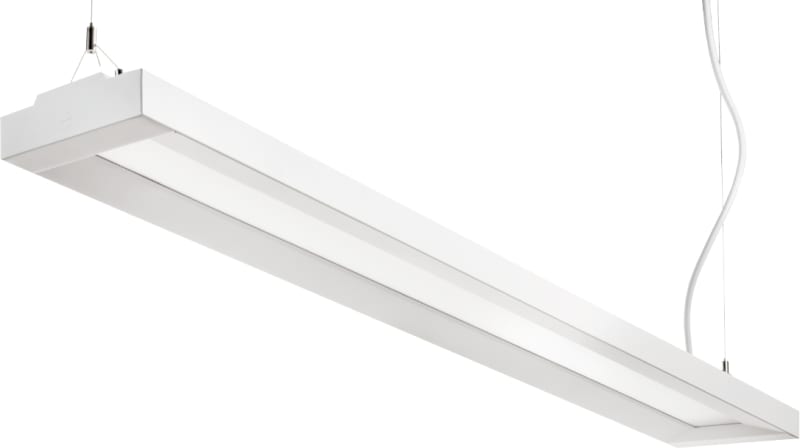

Ecoline 1600 D/In White 35W/840 DALI
Part number212807EAN / GTIN7021982128073HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212807 ECOLINE 1600 D/In WHITE 4000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 212807
- EAN / GTIN
- 7021982128073
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 35 W
- Efficacy
- 161 lm/W
- Lumen
- 5640lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0,07
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 5640lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 55/45%
- Optic
- Opal prismatic
- UGR
- UGR<16
- Visible flicker (PstLM)
- 1
- Stroboscopic flicker (SVM)
- 0,4
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1600
- Wire set
- 2x2m wire kit
- Cable
- Cable 5x0,75mm² 2,5m
- Length (mm) L
- 1600
- Width (mm) W
- 166
- Height (mm) H
- 58
- Weight (kg) gross/net
- 6.5 / 5.7
- Packaging dimensions (mm)
- 1620 x 180 x 72
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982128073
- SAP 1200855479
- Code 84076020
Product Documentation
Document preview: Ecoline 1600 D/In White 35W/840 DALI (212807) — Specification sheet
More from SG Armaturen
SG Armaturen
Place 28W/840 GREY Dynadim
8246088228
SG Armaturen
DISC 480 White 36W TW DALI DT8
606009
SG Armaturen
Stripline END CAP Round KIT RECESSED White
391462
SG Armaturen
Hovden MINI Graphite 4W/830 15°
630002
SG Armaturen
ZIP 1T Inspire 150 White 8W/930
300761
SG Armaturen
Circulus MAXI Pendant White 30W/840 DALI
214027
SG Armaturen
Arena ECO 1200 46W/840 WIDE DALI
607016
SG Armaturen

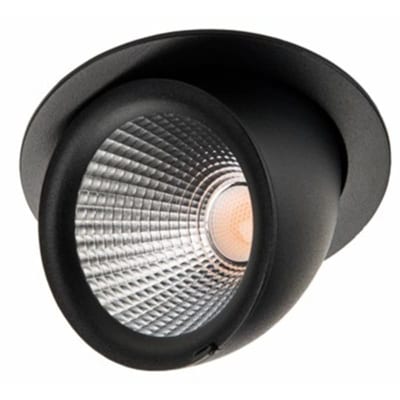

Exclusive MIDI Black 26W/930 DALI
