SG Armaturen

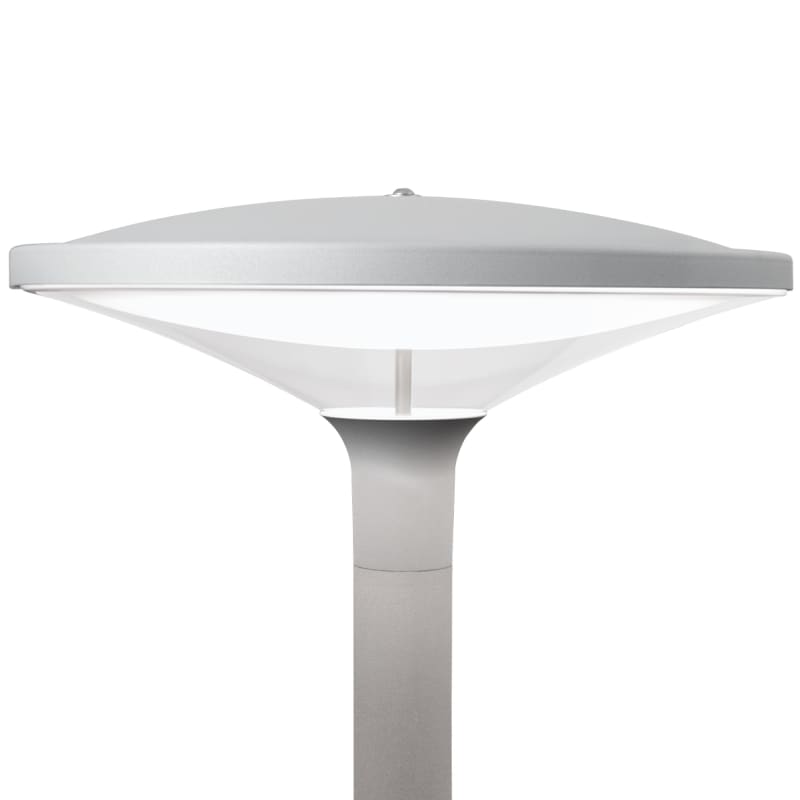

Place 28W/840 GREY Dynadim
Part number8246088228EAN / GTIN5703821168090HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246088228 L70/B10>100 000 hours, 2510lm, 90 lm/W, SDCM3, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 8246088228
- EAN / GTIN
- 5703821168090
- Sales unit
- pcs
- Power
- 28 W
- Efficacy
- 120 lm/W
- Lumen
- 2530lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Post - top (Ø60mm), Outdoor
- System wattage
- 21W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 10, B16: 17, C10: 16, C16: 27
- Type of light source
- LED
- Luminous flux
- 2530lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Type
- DYNADIM
- Luminaire class
- Class II
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- B
- Sunda Hus
- C+
- Housing
- Die-cast aluminium
- Colour
- Grey (structure 2150 sablé)
- Optics
- Polycarbonat (PC)
- Cable
- Cable 2x1mm² 6m
- Wind projected area
- 0,0775m² - Max 10 kg
- Height (mm) H
- 291
- Diameter (mm) D
- 600
- Weight (kg) gross/net
- 10 / 8
- Packaging dimensions (mm)
- 625 x 625 x 300
- Mounting method
- Post top
- Protection class according to IEC 61140
- II
- Width
- 600 mm
- Conductor cross section
- 1 mm²
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 5 m
- Number of poles
- 3
- Length
- 291 mm
- Height/depth
- 291 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Plastic, opal
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for number of light sources
- 1
- Max. system power
- 21 W
- Rated luminous flux according to IEC 62722-2-1
- 2510 lm
- Colour of light
- White
- Remote control
- None
- IFTTT support available
- No
- Type of wiring
- Ending
- Rated life time L90/B10 at 25 °C
- 50000 h
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming Touch and Dim
- No
- Dimming with push-button
- No
- No dim function
- No
- Luminaire efficacy
- 120 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Power factor
- 100
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 5703821168090
- SAP 1200056170
- Code 81904686
Product Documentation
Document preview: Place 28W/840 GREY Dynadim (8246088228) — Specification sheet
