SG Armaturen

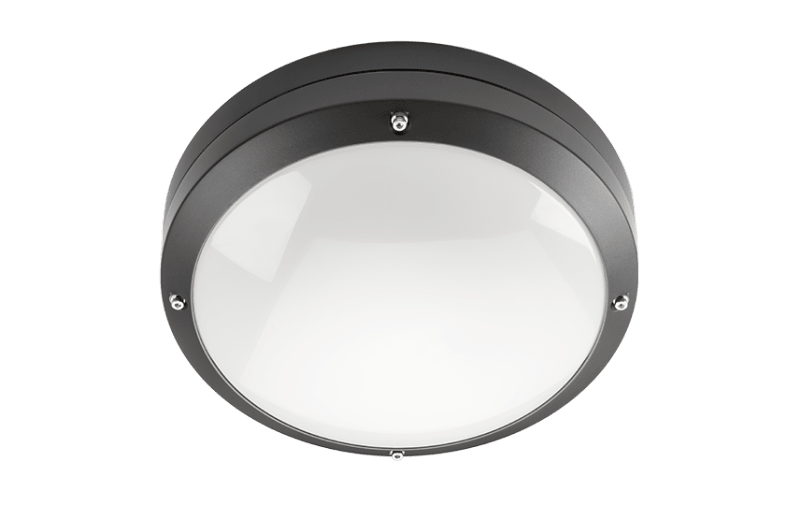

Canto Graphite 2000 19W/830 IP65
Part number643866EAN / GTIN7021986438666HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 643866 IP65 3000K KL.1.
Technical Specifications
- Manufacturer part number (MPN)
- 643866
- EAN / GTIN
- 7021986438666
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 19 W
- Efficacy
- 109 lm/W
- Lumen
- 1520lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 14W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1520lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 2000
- Connection
- Screwless terminal block
- Height (mm) H
- 120
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 2.35 / 1.94
- Packaging dimensions (mm)
- 340 x 340 x 120
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986438666
- SAP 1000704775
- Code 8189299
Product Documentation
Document preview: Canto Graphite 2000 19W/830 IP65 (643866) — Specification sheet
More from SG Armaturen
SG Armaturen
SG Armaturen Callisto 4 W 2700 K IP65 surface-mounted LED downlight, white
912012
SG Armaturen
Ecoline Connect 1600 36W/830
212098
SG Armaturen
Tovdal Cable 10M IP68
641910
SG Armaturen
Frame FOR Triple Socket Black
78177
SG Armaturen
Junistar Black/GOLD 7W/D2W
902236
SG Armaturen
Arena 1700 113W/840 WIDE
8246094801
SG Armaturen

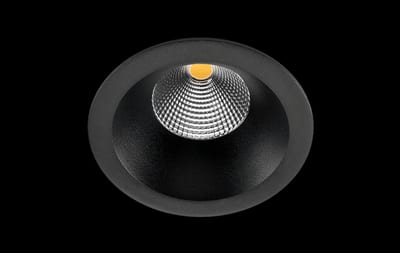

SOFT Black TW 2000-4000K
903323
SG Armaturen

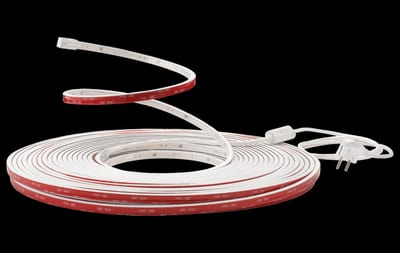

Stripline 230V OUT 40M 9W/927 1,5M CABLE
