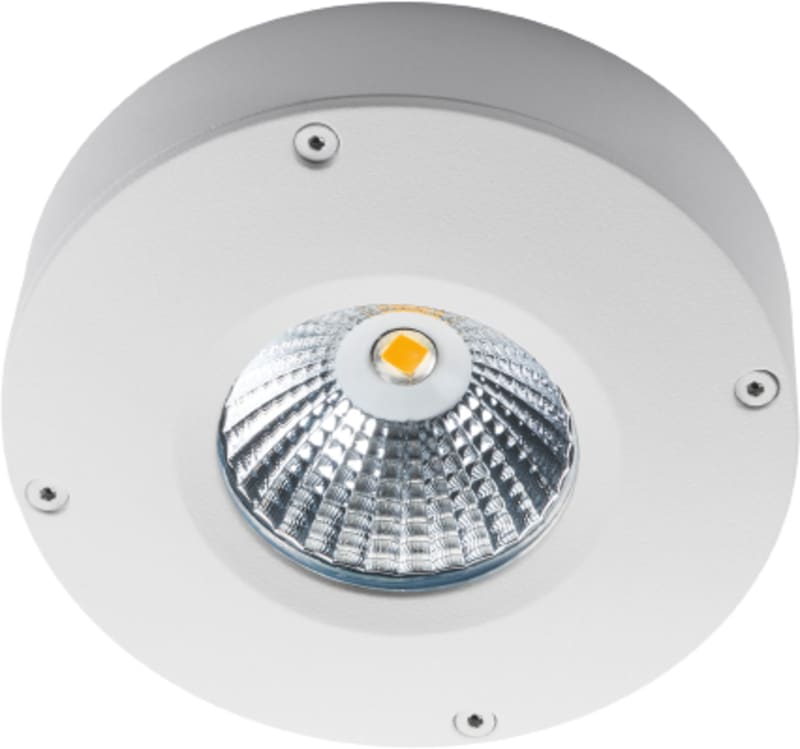

SG Armaturen Callisto 4 W 2700 K IP65 surface-mounted LED downlight, white

SG Armaturen 912012 is the Callisto low-profile surface-mounted LED downlight with IP65 ingress protection for indoor and outdoor use. It delivers 200 lm at 4 W (67 lm/W) in a 2700 K warm-white colour with Ra>80 rendering and a 65 deg beam distribution through a clear tempered glass optic. The Ø 110 x 33 mm aluminium housing is finished in matte white (RAL 9003) and terminates in a screwless block for 220-240 V mains; luminaire class II, IK06.

Manufacturer part number (MPN)

912012

EAN / GTIN

7021989120124

HS code

8543.70

Sales unit

pcs

Package quantity

20 pcs

IP rating

IP65

Power

4 W

Efficacy

67 lm/W

Lumen

200lm

Colour temperature

2700K

Colour rendering (Ra)

Ra>80

Lifetime

50,000 L70/B50>

Mounting

Surface, Indoor / Outdoor

System wattage

3W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 115, B16: 184, C10: 134, C16: 215

Type of light source

LED

Luminous flux

200lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Glass Clear

Beam angle

65°

UGR

UGR<22

ULOR (<1%)

Yes, when ceiling mounted

Type

Trailing edge

Luminaire class

Class II

IK Class

IK06

Contains light source of energy class

F

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

Matte white (RAL 9003)

Optics

Tempered glass

Connection

Screwless terminal block

Height (mm) H

33

Diameter (mm) D

110

Weight (kg) gross/net

0.324 / 0.27

Packaging dimensions (mm)

120 x 115 x 45

HS Code

8543.70

• EAN 7021989120124
• SAP 1200005589
• Code 8499660
