SG Armaturen

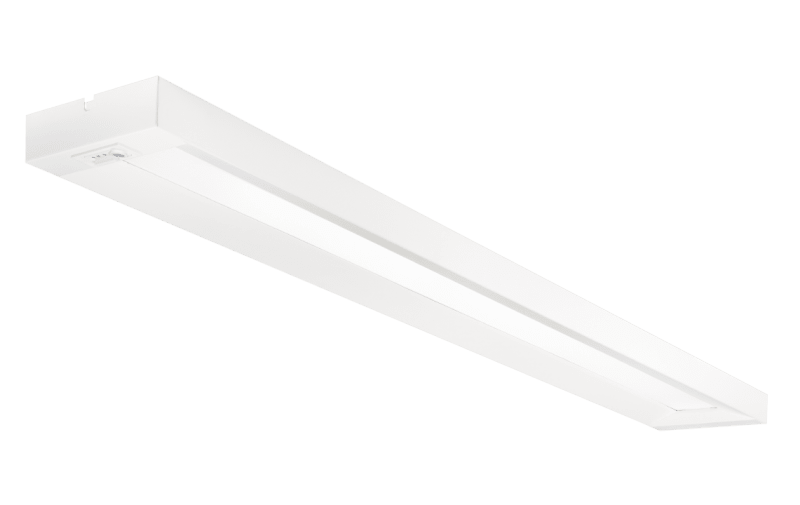

Ecoline Connect 1600 36W/830
Part number212098EAN / GTIN7021982120985HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212098 ECOLINE CONNECT 1600 3000K, 37W, 4960lm, L80/B20 100.000, Ra>80, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 212098
- EAN / GTIN
- 7021982120985
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 36 W
- Efficacy
- 136 lm/W
- Lumen
- 4880lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 36W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 24, C16: 40
- Leakage current (mA)
- 0.50
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 4880lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- UGR
- UGR<19
- Visible flicker (PstLM)
- 1
- Stroboscopic flicker (SVM)
- 0,4
- Photobiological safety
- RG 0
- Type
- Connect
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1600
- Connection
- 3-pole screwless terminal block with 3x1,5mm² coupling from center to end
- Length (mm) L
- 1600
- Width (mm) W
- 166
- Height (mm) H
- 55
- Weight (kg) gross/net
- 5.5 / 5
- Packaging dimensions (mm)
- 1620 x 180 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982120985
- SAP 1200722945
- Code 83857122
Product Documentation
Document preview: Ecoline Connect 1600 36W/830 (212098) — Specification sheet
