SG Armaturen

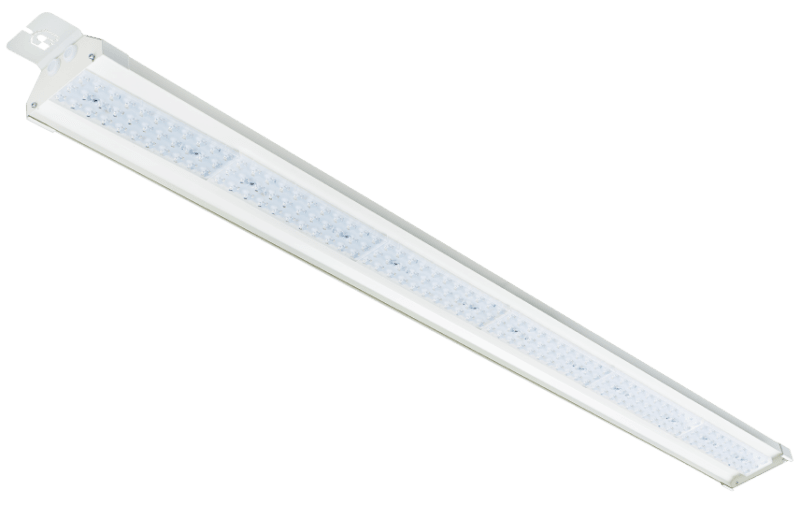

Arena 1700 113W/840 WIDE
Part number8246094801EAN / GTIN5703821178440HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094801 ARENA 1700 4000K 113W, 16830lm, RA80, IP23, A++.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094801 EAN / GTIN: 5703821178440 Sales unit: pcs Power: 113 W Efficacy: 149 lm/W Lumen: 16830lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 50,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 113W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 8, B16: 13, C10: 14, C16: 22 Leakage current (mA): 0.47 Type of light source: LED Luminous flux: 16830lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Wide Beam angle: Wide UGR: UGR<25 Photobiological safety: RG 1 Type: On/Off Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1700 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1842 Width (mm) W: 137 Height (mm) H: 59 Weight (kg) gross/net: 9.7 / 9.5 Packaging dimensions (mm): 1870 x 150 x 70 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821178440
- SAP 1200402609
- Code 82426081
Product Documentation
Document preview: Arena 1700 113W/840 WIDE (8246094801) — Specification sheet
