SG Armaturen

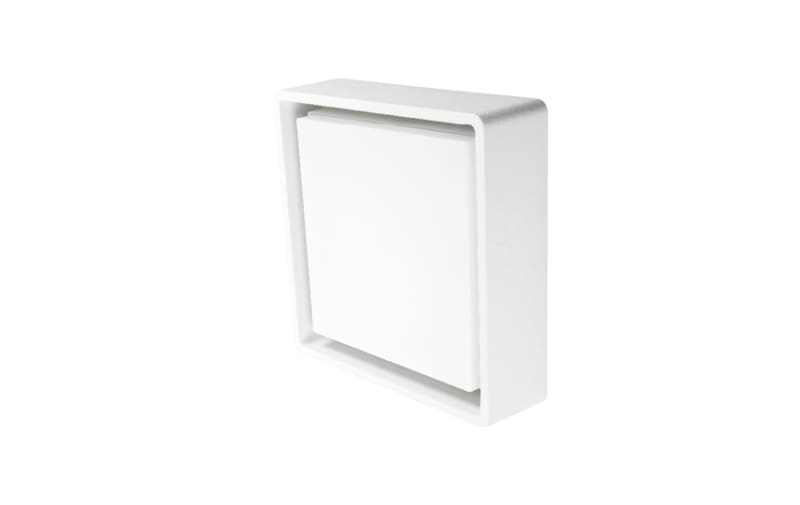

Frame SQ White 7W/830 Twilight
Part number605242EAN / GTIN7021986052428HS code8543.70
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605242 Vandalsikker (IK10) wall luminaire in modern design. Complete with energieffektiv LED with long service life.
Technical Specifications
- Manufacturer part number (MPN)
- 605242
- EAN / GTIN
- 7021986052428
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 7 W
- Efficacy
- 90 lm/W
- Lumen
- 630lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 630lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Twilight
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 240
- Width (mm) W
- 240
- Height (mm) H
- 77
- Weight (kg) gross/net
- 2.47 / 2.1
- Packaging dimensions (mm)
- 248 x 248 x 92
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021986052428
- SAP 1200118748
- Code 81974566
Product Documentation
Document preview: Frame SQ White 7W/830 Twilight (605242) — Specification sheet
