SG Armaturen

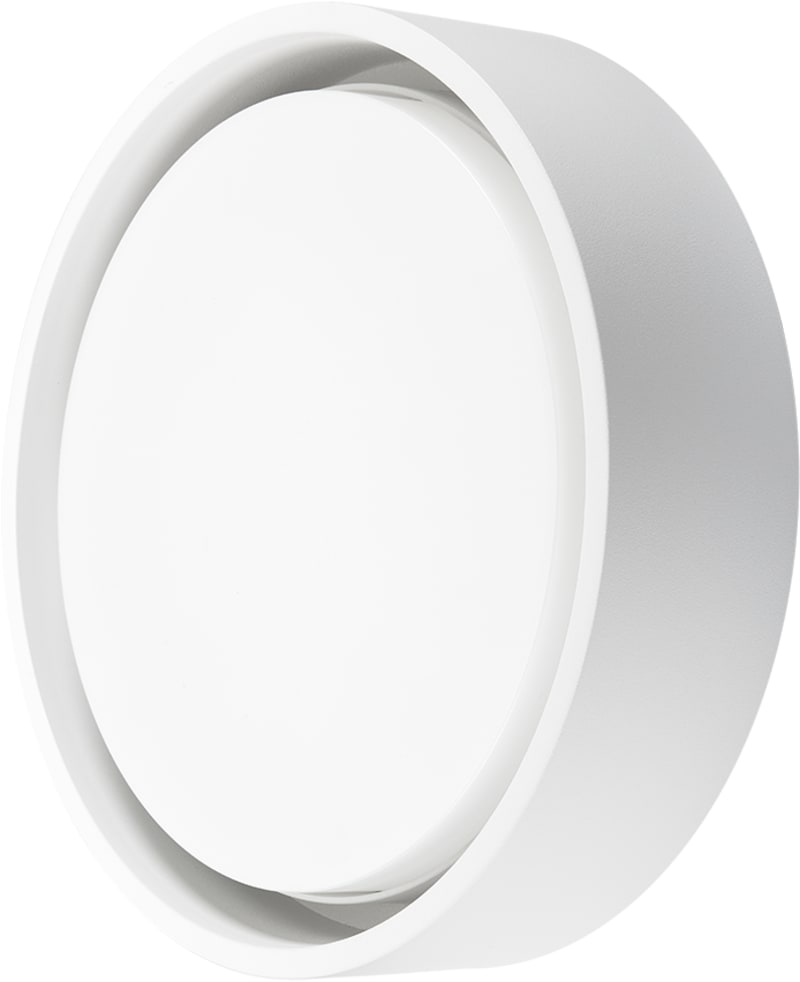

Frame Round MAXI White 19W/830 Sensor WI
Part number605144EAN / GTIN7021986051445HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605144 FRAME ROUND MAXI WHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605144
- EAN / GTIN
- 7021986051445
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 19 W
- Efficacy
- 122 lm/W
- Lumen
- 2320lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 19W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2320lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor Wireless
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 3.1 / 2.7
- Packaging dimensions (mm)
- 332 x 332 x 92
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986051445
- SAP 1200117328
- Code 81972268
Product Documentation
Document preview: Frame Round MAXI White 19W/830 Sensor WI (605144) — Specification sheet
More from SG Armaturen
SG Armaturen
SG Armaturen EcoLine Office Add-On Bracket Asymmetric/Panel
212048
SG Armaturen
ZIP TUBE Pendant Micro 490mm (320515)
SG Armaturen
Hurdal MAXI 1200 38W/840 DALI
113141
SG Armaturen
Ecoline Office Bracket
6049000874
SG Armaturen
ZIP TUBE Pendant MINI 385mm (320522)
SG Armaturen
RAX SOFT 150 Satin 1600 13W/840 DALI
212503
SG Armaturen
Place 28W/840 Black Dynadim
8246090614
SG Armaturen

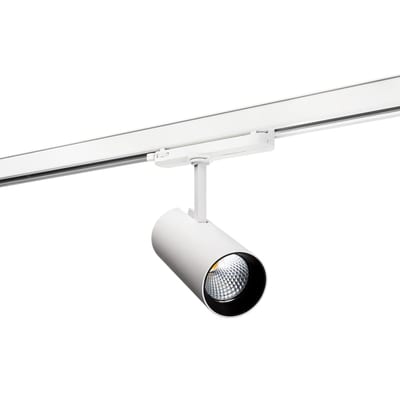

TUBE PRO 3T White 41W/930 32°
