SG Armaturen

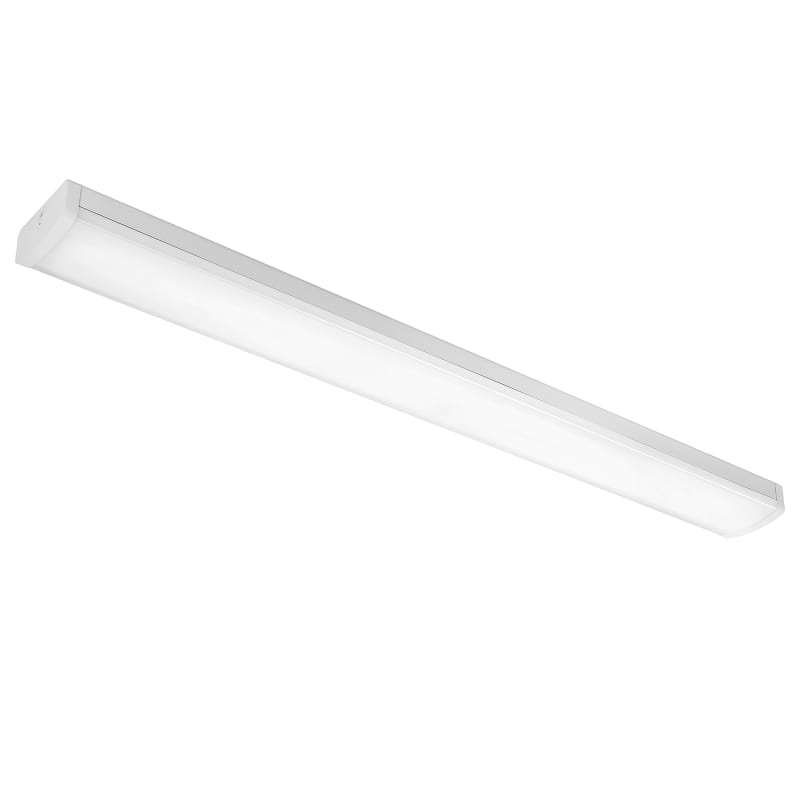

Hurdal MAXI 1200 38W/840 DALI
Part number113141EAN / GTIN7021981131418HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 113141 HURDAL MAXI 1200 4000K DALI, 38W, 5870lm, Ra>80, SDCM3, IK07, IP44, L80/B20> 100.000, L90> 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 113141
- EAN / GTIN
- 7021981131418
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 38 W
- Efficacy
- 154 lm/W
- Lumen
- 5870lm
- IP Class
- IP44
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Indoor
- System wattage
- 38W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 5870lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Optic
- Opal
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0,04
- Stroboscopic flicker (SVM)
- 0
- Type
- DALI-2
- Driver
- 1050mA
- Luminaire class
- Class I
- IK Class
- IK07
- Contains light source of energy class
- C
- Food Safety approved (IFS and HACCP)
- Yes
- Housing
- Steel
- Optics
- UV-stabilized polycarbonate
- Module
- 1200
- Connection
- 3-pole screwless terminal block with 3x2,5mm² through wiring
- Length (mm) L
- 1220
- Width (mm) W
- 151
- Height (mm) H
- 75
- Weight (kg) gross/net
- 3.5 / 3
- Packaging dimensions (mm)
- 1243 x 155 x 88
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981131418
- SAP 1200912156
- Code 84179081
Product Documentation
Document preview: Hurdal MAXI 1200 38W/840 DALI (113141) — Specification sheet
