SG Armaturen

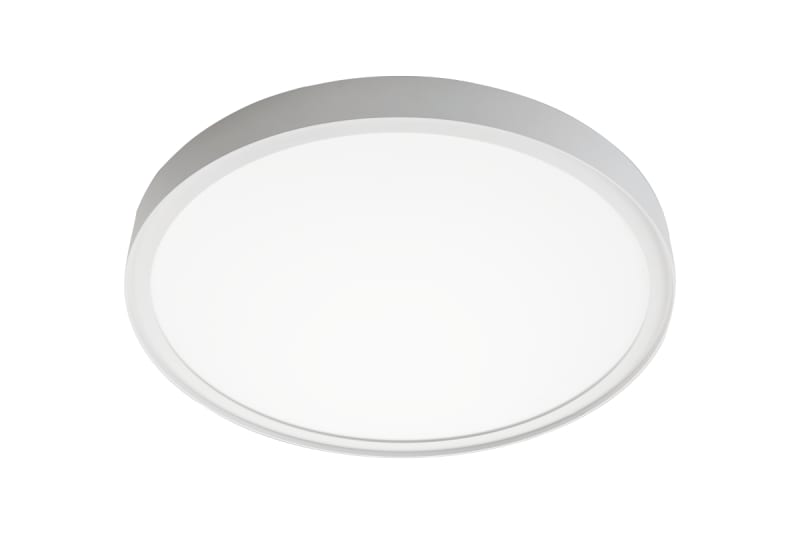

DISC 480 White 36W/840 DALI
Part number606008EAN / GTIN7021986060089HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606008 DISC 480 WHITE 4000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606008
- EAN / GTIN
- 7021986060089
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 126 lm/W
- Lumen
- 3790lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 30W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 55, C16: 80
- Type of light source
- LED
- Luminous flux
- 3790lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060089
- SAP 1200243995
- Code 82204927
Product Documentation
Document preview: DISC 480 White 36W/840 DALI (606008) — Specification sheet
More from SG Armaturen
SG Armaturen
Fenes Lens 2 35W/740 4710LM
212641
SG Armaturen
ZIP TUBE Pendant MINI 385mm (320519)
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320529)
SG Armaturen
DISC 480 Connect White 36W/840
606171
SG Armaturen
RAX SOFT 150 Satin 2200 18W/840 DALI
212509
SG Armaturen
RAX SOFT 150 Satin 3000 26W/840 DALI
212513
SG Armaturen

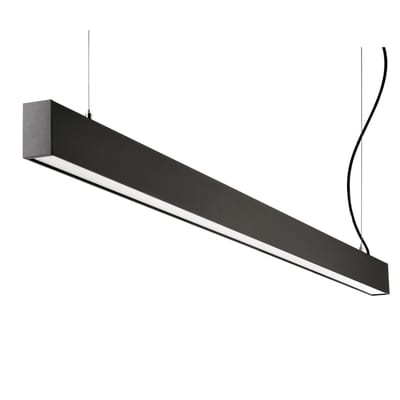

Inspire 1500 Black Prism 35W/830 DALI
212863
SG Armaturen

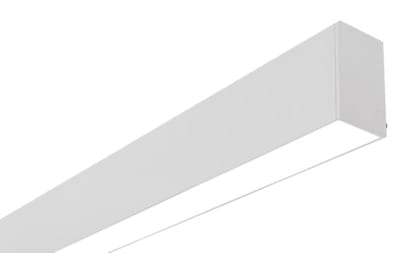

Lineal SURF 840 14W/840 White DALI
