SG Armaturen

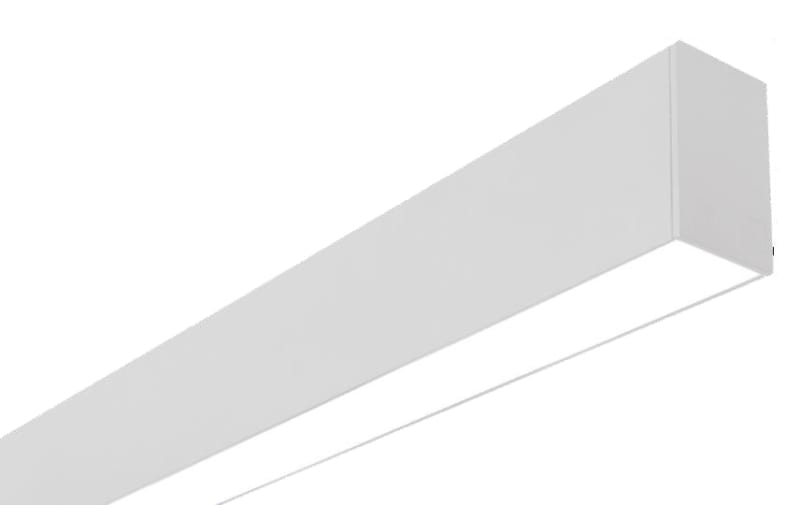

Lineal SURF 840 14W/840 White DALI
Part number8246095868EAN / GTIN5703821180382HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246095868 LINEAL SURF 840 WHITE 4000K DALI 14W, 1490lm, RA80, SDCM 3, L80/B10, Class In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 8246095868
- EAN / GTIN
- 5703821180382
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power
- 14 W
- Efficacy
- 112 lm/W
- Lumen
- 1450lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 25, C16: 41
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 1450lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<26
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Module
- 840
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 841
- Width (mm) W
- 42
- Height (mm) H
- 70
- Weight (kg) gross/net
- 2.2 / 2
- Packaging dimensions (mm)
- 1000 x 50 x 80
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821180382
- SAP 1200486554
- Code 82579107
Product Documentation
Document preview: Lineal SURF 840 14W/840 White DALI (8246095868) — Specification sheet
