SG Armaturen

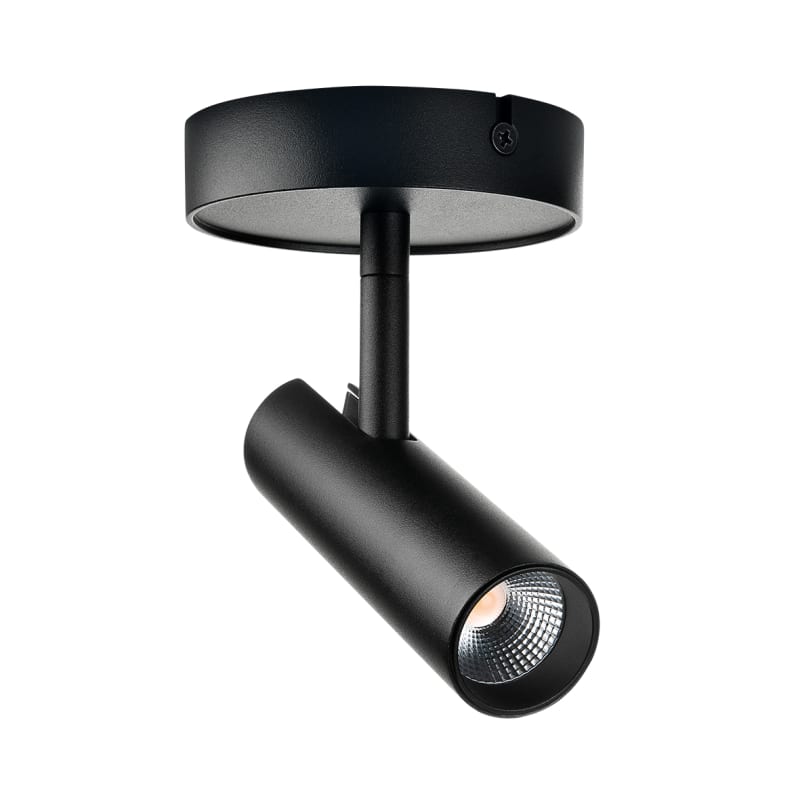

TUBE Micro S Black 7W/930 36°
Part number320810EAN / GTIN7021983208101HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320810 TUBE MICRO S BLACK 3000K, 7W, 370lm, 53lm/W, Ra 98, SDCM2, L90/B10>50000, KL II, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 320810
- EAN / GTIN
- 7021983208101
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Efficacy
- 53 lm/W
- Lumen
- 370lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 7W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 180, B16: 290, C10: 180, C16: 290
- Type of light source
- LED
- Luminous flux
- 370lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 36°
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0
- Stroboscopic flicker (SVM)
- 0.01
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Length (mm) L
- 39
- Width (mm) W
- 39
- Height (mm) H
- 135
- Diameter (mm) D
- 102
- Weight (kg) gross/net
- 0.523 / 0.428
- Packaging dimensions (mm)
- 106 x 106 x 185
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983208101
- SAP 1200621385
- Code 83024549
Product Documentation
Document preview: TUBE Micro S Black 7W/930 36° (320810) — Specification sheet
More from SG Armaturen
SG Armaturen
Circled M LENS 50W/740 5000LM (8246094160)
SG Armaturen
RAX SOFT 200 Satin 2200 18W/840
212522
SG Armaturen
Junistar LUX SQ Black 7W/940
902589
SG Armaturen
Herning MINI Pole Head Ø60 GREY CCT
623980
SG Armaturen
Ecoline Office 1500 35W/840 DALI
8246090562
SG Armaturen
RAX SOFT 200 Connect Wireless Satin 4K
212773
SG Armaturen
DISC 290 White 17W/840 DALI
606042
SG Armaturen
DISC 290 White TW DALI DT8 2700-6500K
606086
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 320810?
- 320810 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 320810.
- What is the HS code for 320810?
- The customs tariff (HS) code for 320810 is 9405.11.
- Who manufactures 320810?
- 320810 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 320810?
- Yes — the 320810 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 320810?
- The minimum order quantity is 1.
- Is 320810 available?
- Yes — 320810 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
