SG Armaturen

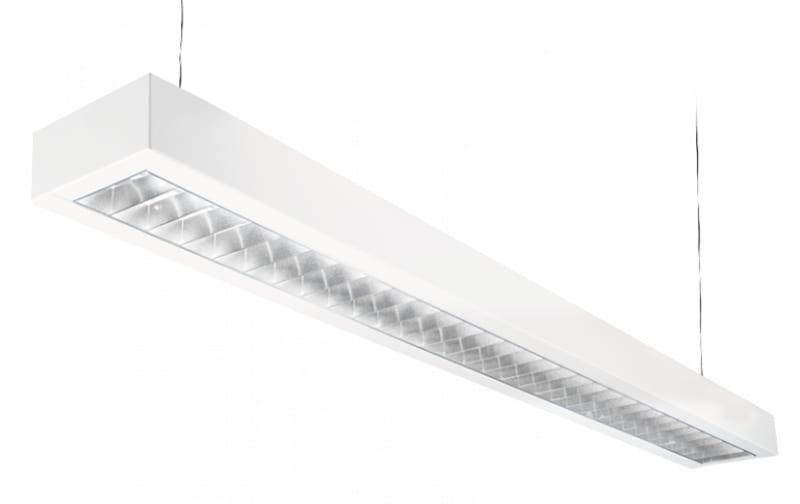

Ecoline Office 1500 35W/840 DALI
Part number8246090562EAN / GTIN5703821172493HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246090562 EcoLine Office 1500 39W 4K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 8246090562
- EAN / GTIN
- 5703821172493
- Sales unit
- pcs
- Power
- 35 W
- Efficacy
- 135 lm/W
- Lumen
- 4710lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0.08
- Type of light source
- LED
- Luminous flux
- 4710lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Double parabolic louvre, diffuse
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0.02
- Stroboscopic flicker (SVM)
- 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Colour
- White (Pure white, 25% gloss)
- Optics
- Aluminium
- Module
- 1500
- Connection
- Screwless terminal block
- Length (mm) L
- 1500
- Width (mm) W
- 142
- Height (mm) H
- 63
- Weight (kg) gross/net
- 5.4 / 5.1
- Packaging dimensions (mm)
- 1515 x 146 x 68
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821172493
- SAP 1200117383
- Code 81973871
Product Documentation
Document preview: Ecoline Office 1500 35W/840 DALI (8246090562) — Specification sheet
