SG Armaturen

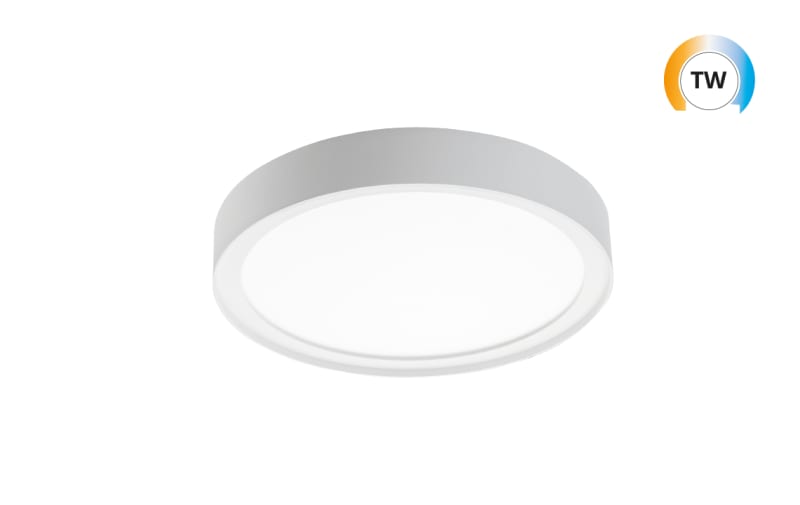

DISC 290 White TW DALI DT8 2700-6500K
Part number606086EAN / GTIN7021986060867HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606086 DISC 290 white TW DALI DT8.
Technical Specifications
- Manufacturer part number (MPN)
- 606086
- EAN / GTIN
- 7021986060867
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Colour temperature
- 6500 K
- Efficacy
- 111 lm/W
- Lumen
- 1890lm (@6500K)
- Wattage
- 17W
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 22, B16: 36, C10: 37, C16: 61
- Type of light source
- LED
- Luminous flux
- 1890lm (@6500K)
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Type
- TW DALI Type 8
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 288
- Weight (kg) gross/net
- 2.005 / 1.846
- Packaging dimensions (mm)
- 308 x 303 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060867
- SAP 1200705547
- Code 83627505
Product Documentation
Document preview: DISC 290 White TW DALI DT8 2700-6500K (606086) — Specification sheet
More from SG Armaturen
SG Armaturen

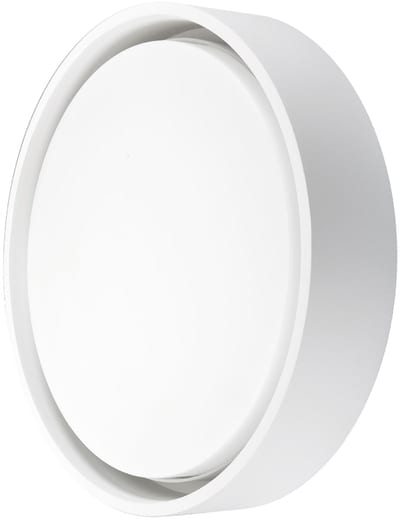

Frame Round MAXI White 19W/830 Twilight
605142
SG Armaturen

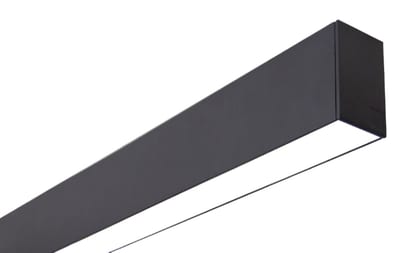

Lineal SURF 840 14W/830 Black DALI
8246095800
SG Armaturen

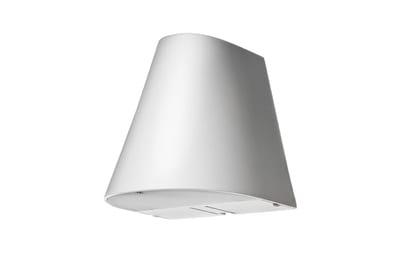

Spike White 11W/830 Twilight
611920
SG Armaturen
Tanto Graphite 11,5W/830 IP65 Twilight
643544
SG Armaturen

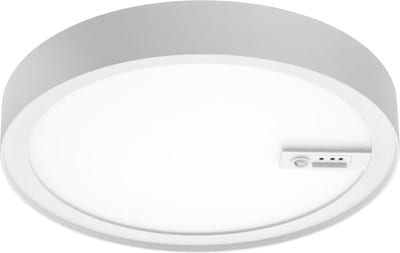

DISC 290 Connect White 17W/840
606173
SG Armaturen

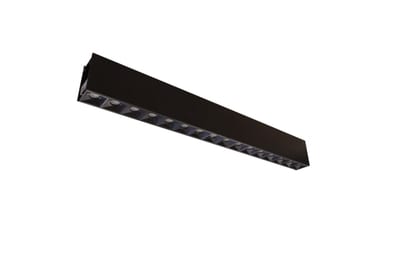

Lineal Cubic 840 Black 27W/830 DALI
8246095758
SG Armaturen

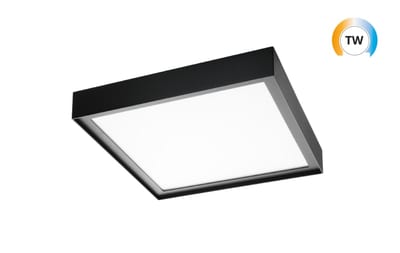

DISC 285X285 Black TW Jointim
606079
SG Armaturen

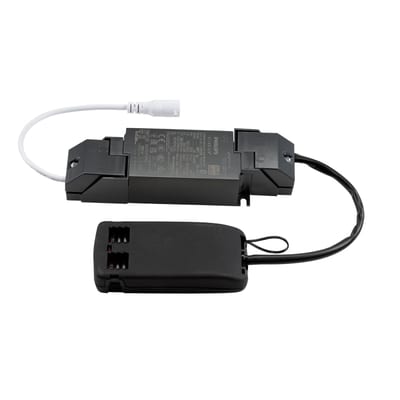

Connect Driver KIT Wireless 800MA
