SG Armaturen

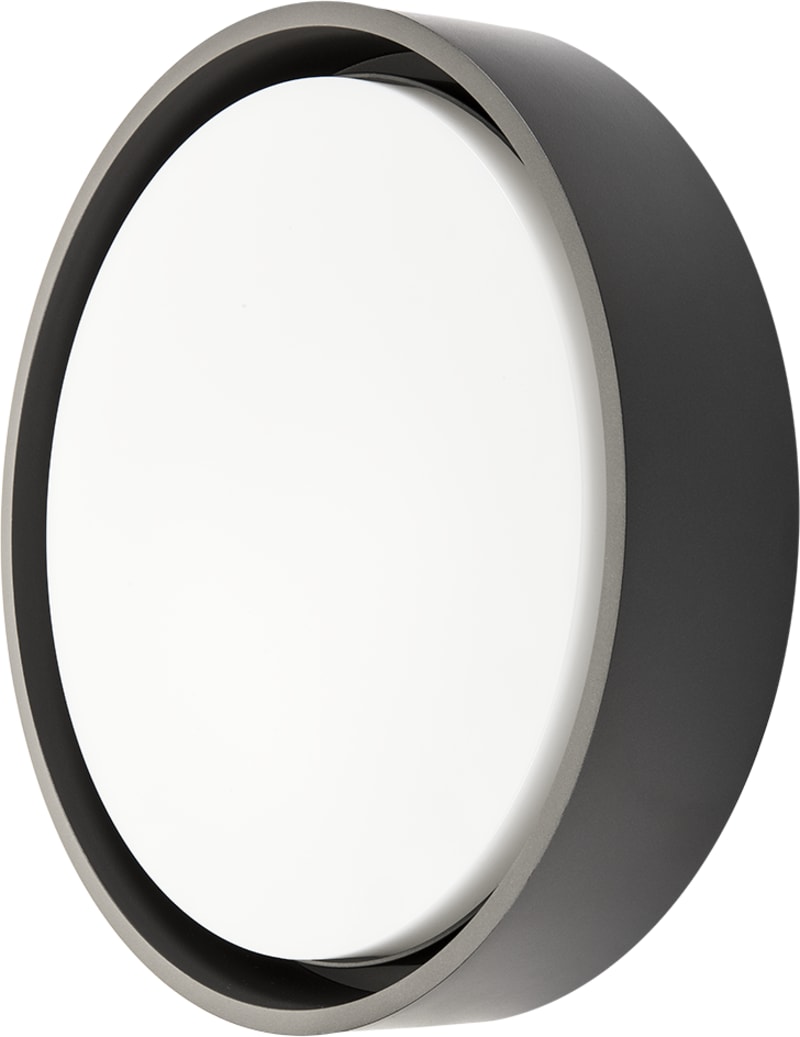

Frame Round MAXI Graphite 17W/830 Sensor
Part number605163EAN / GTIN7021986051636HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605163 FRAME ROUND MAXI GRAPHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605163
- EAN / GTIN
- 7021986051636
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 17 W
- Efficacy
- 118 lm/W
- Lumen
- 2010lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2010lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 3.1 / 2.7
- Packaging dimensions (mm)
- 332 x 332 x 92
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986051636
- SAP 1200117317
- Code 81971403
Product Documentation
Document preview: Frame Round MAXI Graphite 17W/830 Sensor (605163) — Specification sheet
More from SG Armaturen
SG Armaturen

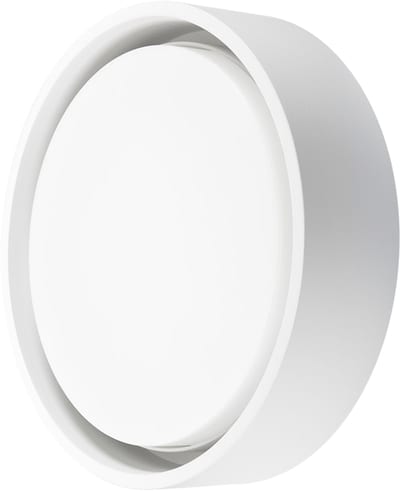

Frame Round MAXI White 19W/830 Sensor WI
605144
SG Armaturen

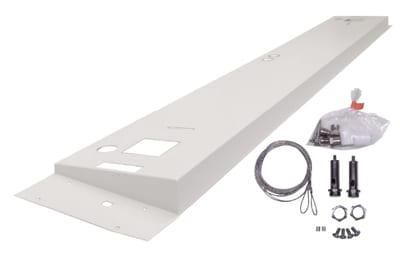

SG Armaturen EcoLine Office Add-On Bracket Asymmetric/Panel
212048
SG Armaturen

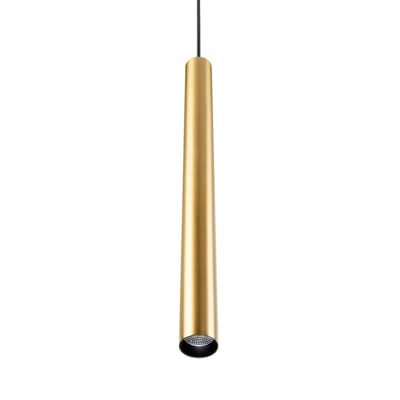

ZIP TUBE Pendant Micro 490mm (320515)
SG Armaturen

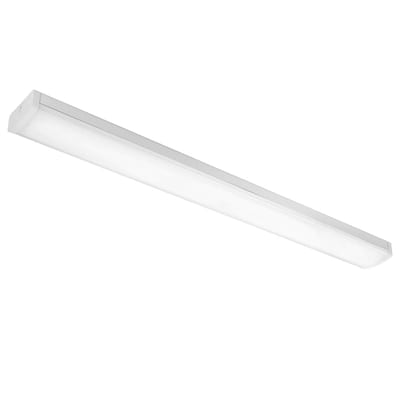

Hurdal MAXI 1200 38W/840 DALI
113141
SG Armaturen

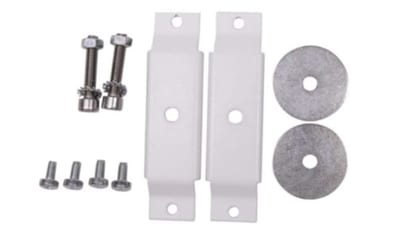

Ecoline Office Bracket
6049000874
SG Armaturen

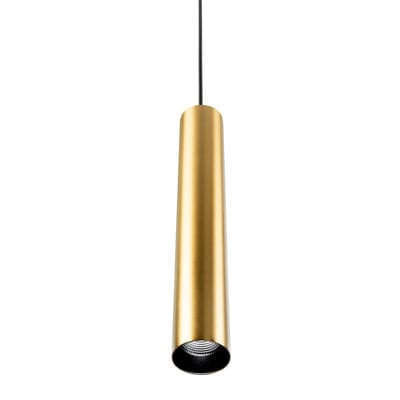

ZIP TUBE Pendant MINI 385mm (320522)
SG Armaturen

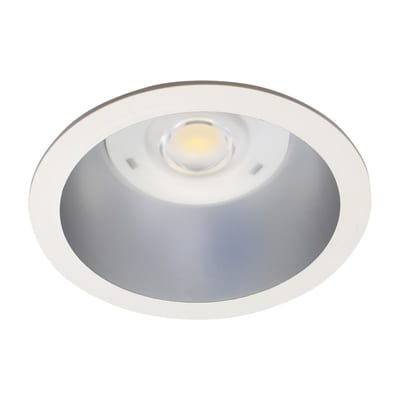

RAX SOFT 150 Satin 1600 13W/840 DALI
212503
SG Armaturen

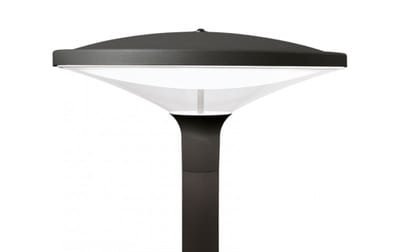

Place 28W/840 Black Dynadim
