SG Armaturen

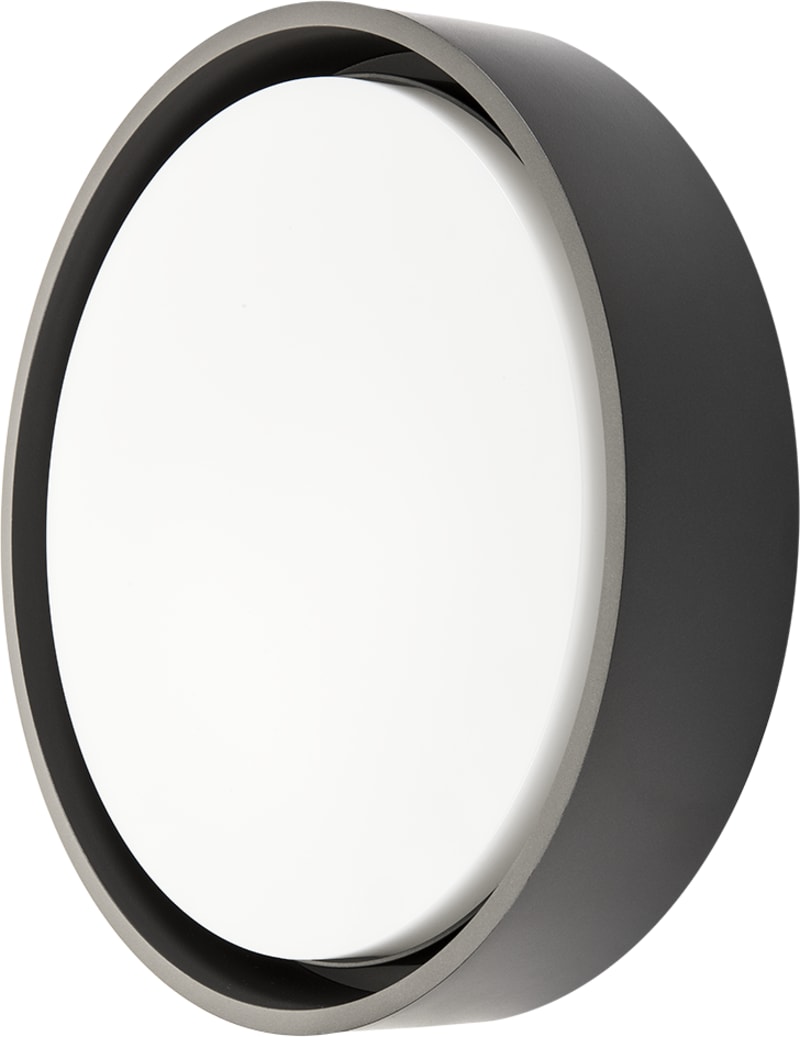

Frame Round MAXI Graphite 19W/830
Part number605161EAN / GTIN7021986051612HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605161 FRAME ROUND MAXI GRAPHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605161
- EAN / GTIN
- 7021986051612
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 19 W
- Efficacy
- 105 lm/W
- Lumen
- 1990lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 19W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 1990lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 3.1 / 2.7
- Packaging dimensions (mm)
- 332 x 332 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986051612
- SAP 1200117284
- Code 81972252
Product Documentation
Document preview: Frame Round MAXI Graphite 19W/830 (605161) — Specification sheet
More from SG Armaturen
SG Armaturen

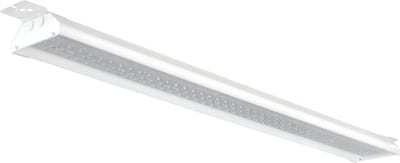

Arena 1200 57W/840 WIDE
8246094212
SG Armaturen

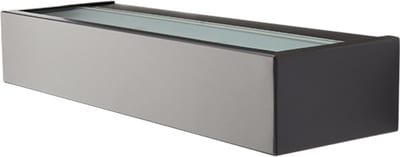

EDGE Graphite 10W/827 IP65
623350
SG Armaturen

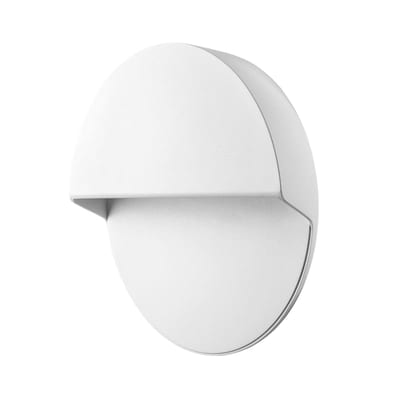

Arlon Round White 10W/827
653602
SG Armaturen

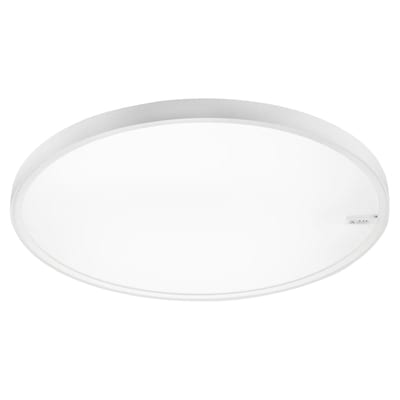

DISC 760 Connect White 3000/4000K
606234
SG Armaturen

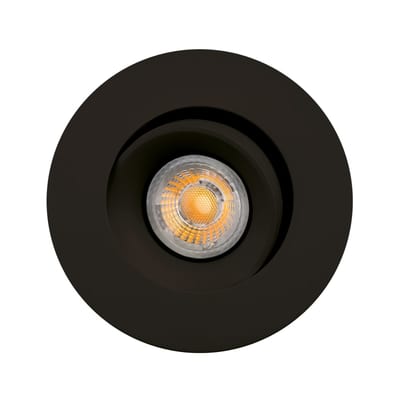

Junistar BIO Black 490LM 5W/930
905254
SG Armaturen

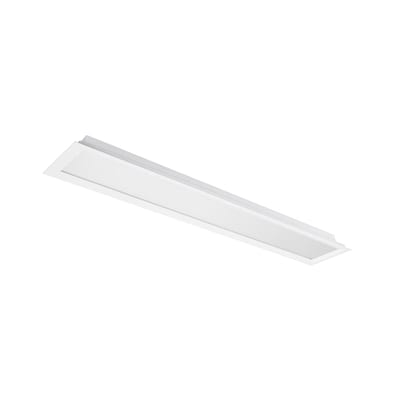

Sense LINE 120X600 9W/830 Linect
212690
SG Armaturen

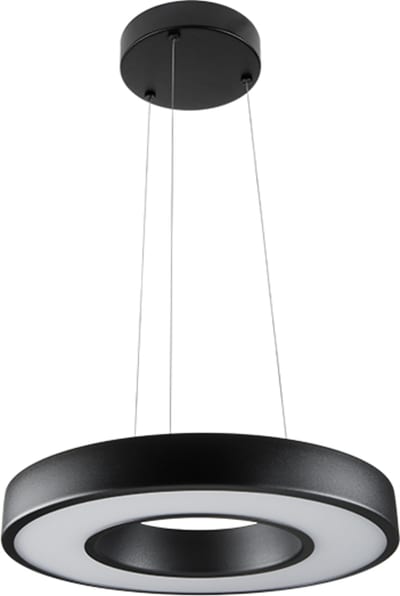

SG Armaturen 214005 Circulus Pendant Black 19 W 2700 K
SG Armaturen

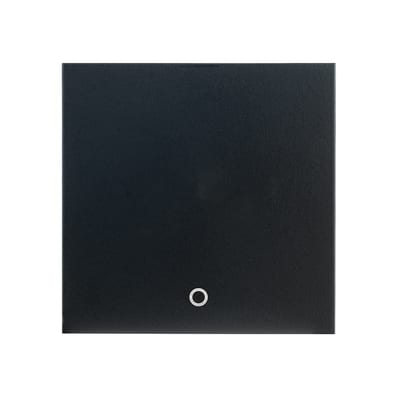

Switch Button 2 POLE Black
