SG Armaturen 214005 Circulus Pendant Black 19 W 2700 K
Pricing
Request a quote
We reply within 24 hours
Product Description

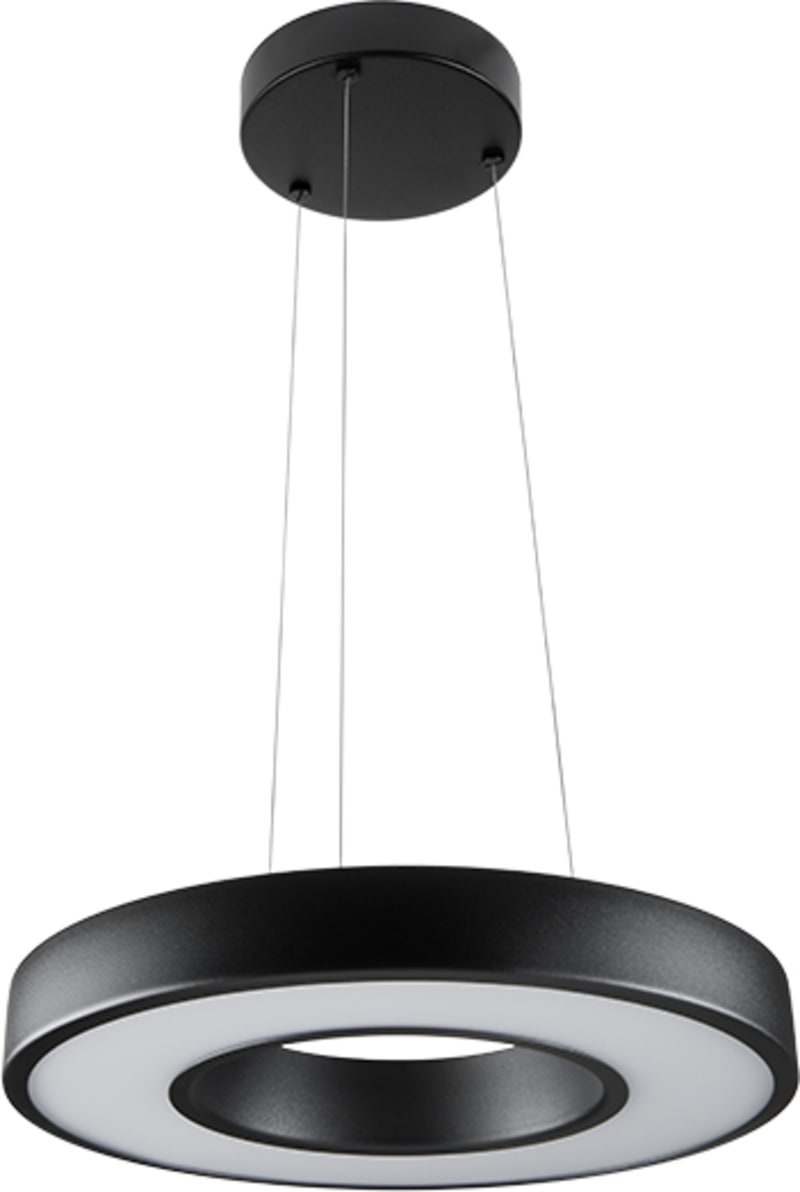

SG Armaturen 214005 Circulus is a suspended LED pendant with a black steel housing (RAL 9004) and acrylic (PMMA) opal optic, Ø360 x 280 mm. The luminaire supplies 1420 lm at 15 W system load, 2700 K, Ra>80, UGR<25, with direct light distribution and a 110° beam angle. Includes a 2 m suspension wire that also carries the supply current so no separate cable is required, IP20, Class I, screwless terminal connection for indoor mounting.
Technical Specifications
- Manufacturer part number (MPN)
- 214005
- EAN / GTIN
- 7021982140051
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Lifecycle status
- Phased out
- Power
- 19 W
- Efficacy
- 95 lm/W
- Lumen
- 1420lm
- Wattage
- 15W
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 15W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 68, C16: 110
- Type of light source
- LED
- Luminous flux
- 1420lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Colour
- Black (RAL 9004)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 280
- Diameter (mm) D
- 360
- Weight (kg) gross/net
- 3 / 2.3
- Packaging dimensions (mm)
- 370 x 370 x 95
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7021982140051
- SAP 1200036844
- Code 81553751
Product Documentation
More from SG Armaturen
SG Armaturen
Switch Button 2 POLE Black
76965
SG Armaturen
DISC 480 Black 36W/830
606018
SG Armaturen
VIEW 900 Black 30W/927 IP44
114430
SG Armaturen
RAX 200 Plate Ø200mm SOFT Ceiling
8249038725
SG Armaturen
Sense Basic Surface Connect 300X1200 32W
212705
SG Armaturen

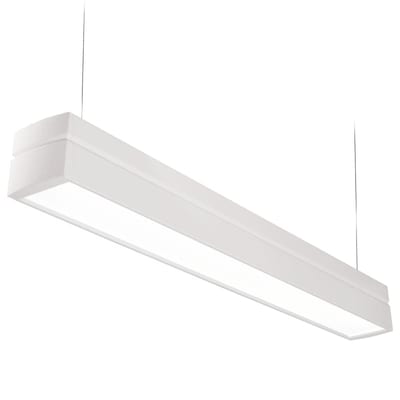

Facet II 1200 D/A White 18W/830 DALI
8246090737
SG Armaturen

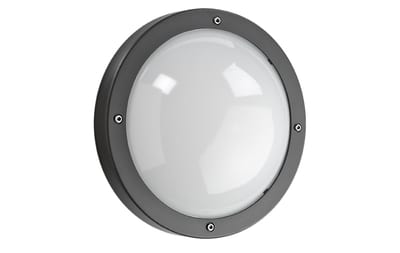

Primo Graphite 11,5W/830 IP65 Sensor
643571
SG Armaturen

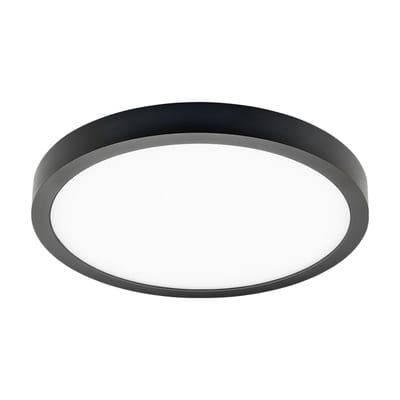

Farsund SLIM 300 Black 900LM 7,5W/840
