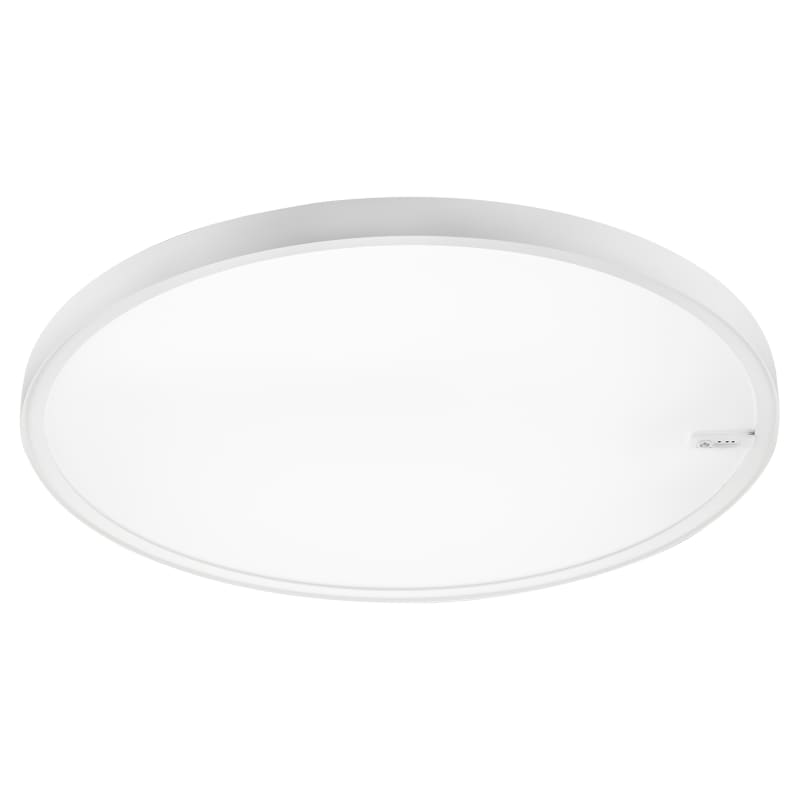

DISC 760 Connect White 3000/4000K
Part number606234EAN / GTIN7021986062342HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606234 DISC 760 CONNECT WHITE 3000/4000K, 48W, 5990lm/6340lm, Ra>80, DSCM3, L80/B20 100.000, IP20, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 606234
- EAN / GTIN
- 7021986062342
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour temperature
- 4000 K
- Efficacy
- 125/132lmW
- Lumen
- 5990/6340lm
- Wattage
- 48W
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- System wattage
- 48W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 17, B16: 27, C10: 28, C16: 45
- Type of light source
- LED
- Luminous flux
- 5990/6340lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<19
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- C/D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 760
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 760
- Weight (kg) gross/net
- 11.1 / 10.7
- Packaging dimensions (mm)
- 775 x 775 x 63
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062342
- SAP 1200888906
- Code 84131587
Product Documentation
Document preview: DISC 760 Connect White 3000/4000K (606234) — Specification sheet
More from SG Armaturen
SG Armaturen
Junistar BIO Black 490LM 5W/930
905254
SG Armaturen
Sense LINE 120X600 9W/830 Linect
212690
SG Armaturen
SG Armaturen 214005 Circulus Pendant Black 19 W 2700 K
SG Armaturen
Switch Button 2 POLE Black
76965
SG Armaturen

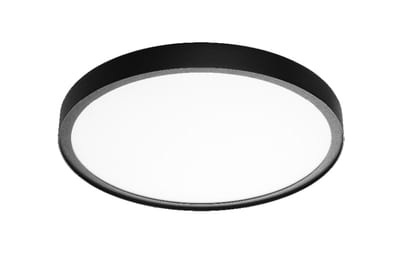

DISC 480 Black 36W/830
606018
SG Armaturen

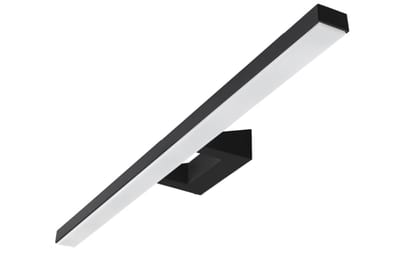

VIEW 900 Black 30W/927 IP44
114430
SG Armaturen

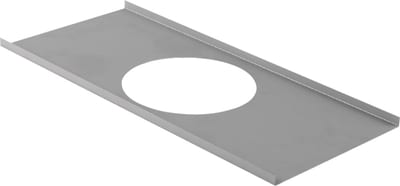

RAX 200 Plate Ø200mm SOFT Ceiling
8249038725
SG Armaturen

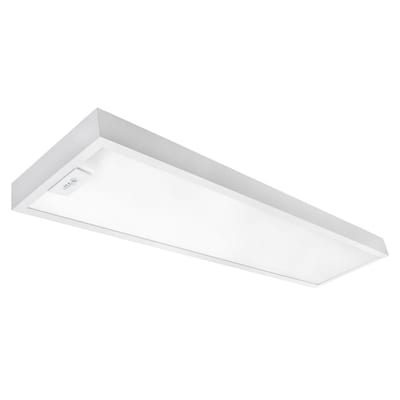

Sense Basic Surface Connect 300X1200 32W
212705
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 606234?
- 606234 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 606234.
- What is the HS code for 606234?
- The customs tariff (HS) code for 606234 is 9405.11.
- Who manufactures 606234?
- 606234 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 606234?
- Yes — the 606234 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 606234?
- The minimum order quantity is 1.
- Is 606234 available?
- Yes — 606234 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
