SG Armaturen

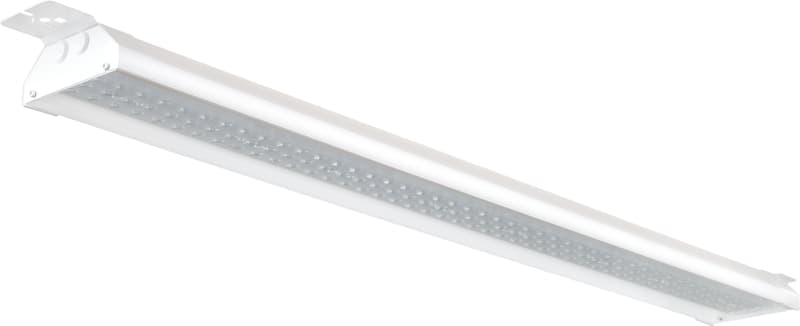

Arena 1200 57W/840 WIDE
Part number8246094212EAN / GTIN5703821177030HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094212 Arena 1200 White 63W LED 4000K Ra>80.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094212 EAN / GTIN: 5703821177030 Sales unit: pcs Power: 57 W Efficacy: 158 lm/W Lumen: 8980lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 57W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 16, B16: 26, C10: 27, C16: 44 Leakage current (mA): 0.54 Type of light source: LED Luminous flux: 8980lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Wide Beam angle: Wide UGR: UGR<25 Photobiological safety: RG 1 Type: On/Off Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1194 Width (mm) W: 138 Height (mm) H: 63 Weight (kg) gross/net: 3.8 / 3.6 Packaging dimensions (mm): 1285 x 148 x 65 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177030
- SAP 1200108074
- Code 81965522
Product Documentation
Document preview: Arena 1200 57W/840 WIDE (8246094212) — Specification sheet
