SG Armaturen

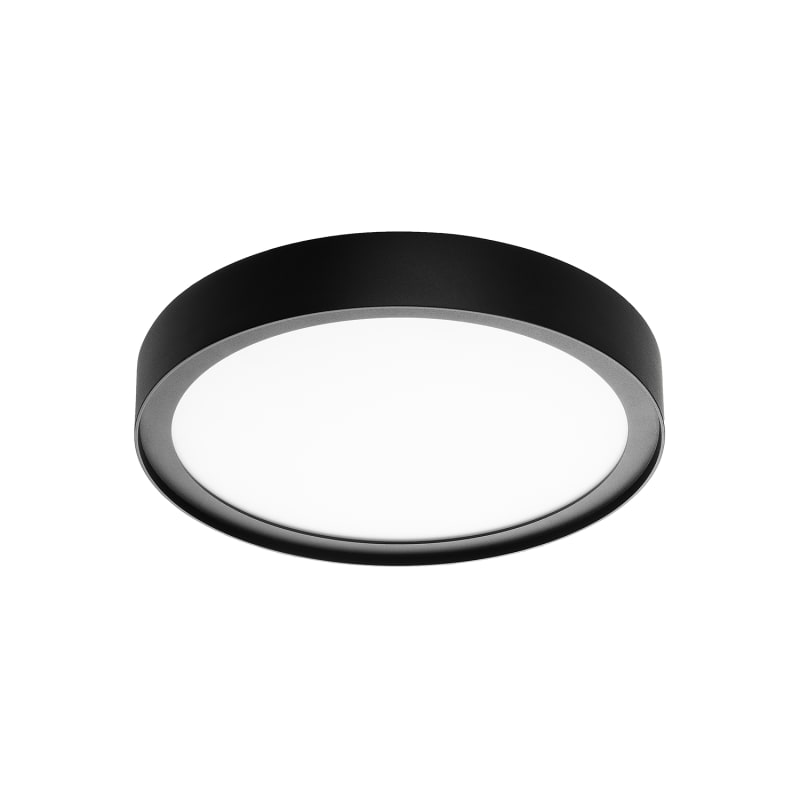

DISC 290 D/In Black 18W 3K/4K DALI
Part number606207EAN / GTIN7021986062076HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606207 DISC 290 D/In BLACK 3000/4000K DALI, 18W, 1970lm, SDCM3, L80/B20 100.000, IP20, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 606207
- EAN / GTIN
- 7021986062076
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 18 W
- Efficacy
- 102 lm/W
- Lumen
- 1840/1970lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 1840/1970lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,08
- Stroboscopic flicker (SVM)
- 0,03
- Type
- DALI-2
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C/D/C/C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 290
- Weight (kg) gross/net
- 1.6 / 1.45
- Packaging dimensions (mm)
- 308 x 303 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062076
- SAP 1200880687
- Code 84120018
Product Documentation
Document preview: DISC 290 D/In Black 18W 3K/4K DALI (606207) — Specification sheet
More from SG Armaturen
SG Armaturen
Lineal S Corner White 18W/830 DALI
8246094746
SG Armaturen

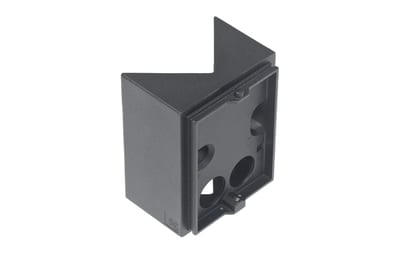

Corner Bracket Black FOR ECHO AND Metro
614207
SG Armaturen

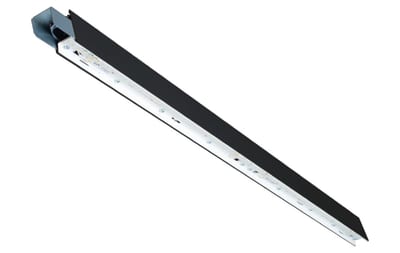

Lineal S 1400 Black 37W/830 DALI
8246094649
SG Armaturen

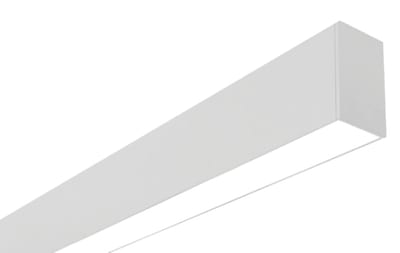

Lineal SURF 1120 18W/830 White DALI
8246095871
SG Armaturen

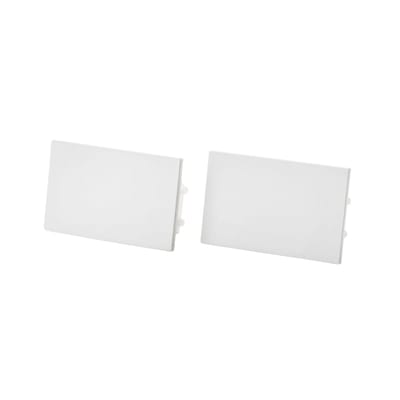

Stripline END CAP KIT Surface-Mounted (391502)
SG Armaturen

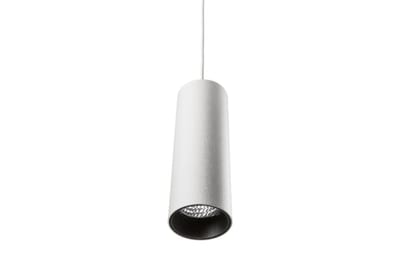

TUBE ECO Pendant White 23W/927 DALI
314488
SG Armaturen

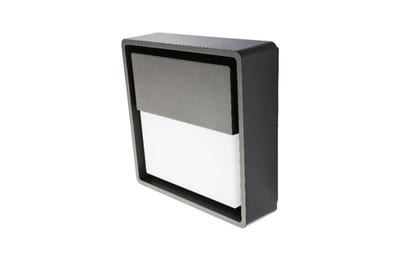

Frame SQ WALL Graphite 7W/830
