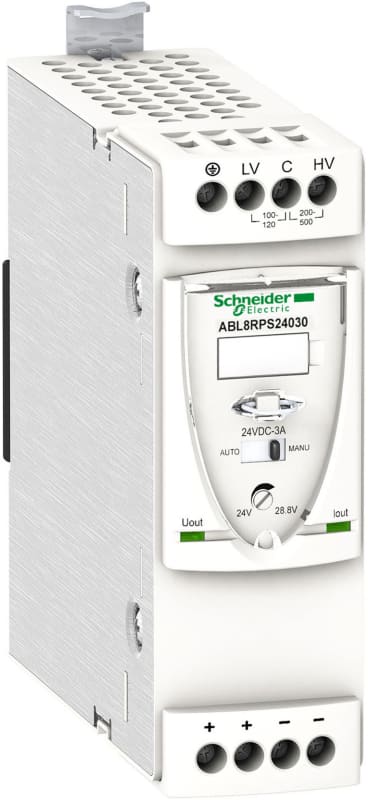

Schneider Phaseo ABL8 Power Supply 24V DC 3A 72W

Schneider Electric ABL8RPS24030 Phaseo ABL8 regulated switch-mode power supply, 100-240V AC input, 24V DC / 3A / 72W output, single-phase. DIN rail mount.

Series

Phaseo ABL8 RPS, Input Voltage: 100-240V AC, 1-phase, 50/60Hz, Output Voltage: 24V DC regulated, Output Current: 3A, Output Power: 72W, Efficiency: Approx 89%, Protections: Short-circuit, overcurrent, over-temperature, overvoltage, Mounting: 35mm DIN rail, Ip Rating: IP20

Voltage

24 V

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Nominal input voltage

100...120 V AC single phase, terminal(s): N-L1; 200...500 V AC phase to phase, terminal(s): L1-L2

Rated power in W

72 W

Output voltage

24 V DC

Power supply output current

3 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

Low frequency harmonic currents

Input voltage limits

170...550 V AC; 85...132 V AC

Inrush current

30 A

Power factor

0.51 at 240 V AC; 0.59 at 120 V AC

Efficiency

87 %

Output voltage adjustment

24...28.8 V adjustable

Power dissipation in W

7.8 W

Provided equipment

Power factor correction filter conforming to IEC 61000-3-2

Output protection type

Against overload, protection technology: manual or automatic reset; Against overvoltage, protection technology: 30...32 V, manual reset; Against short-circuits, protection technology: manual or automatic reset; Against undervoltage, protection technology: tripping if U < 21.6 V; Thermal, protection technology: automatic reset

Connections - terminals

Screw type terminals: 3 x 0.5...3 x 4 mm², (22 AWG...12 AWG) for input connection; Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for input ground connection; Screw type terminals: 4 x 0.5...4 x 4 mm², (22 AWG...12 AWG) for output connection; Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for output ground connection

Status LED

1 LED (green and red) output voltage; 1 LED (green, red and orange) output current

Depth

125 mm

Height

125 mm

Width

45 mm

Product weight

0.3 kg

Output coupling

Parallel; Series

Marking

CE

Mounting support

35 x 15 mm symmetrical DIN rail; 35 x 7.5 mm symmetrical DIN rail

Operating position

Vertical

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

3500 V with between input and ground; 4000 V with between input and output; 500 V with between output and ground

Standards

CSA C22.2 No 60950-1; UL 508; EN/IEC 62368-1

Product certifications

CCSAus; EAC; UL; RCM; KC

Environmental characteristic

EMC conforming to IEC 61000-6-1; EMC conforming to IEC 61000-6-3; EMC conforming to IEC 61000-6-2; EMC conforming to IEC 61000-6-4; EMC conforming to EN/IEC 61204-3; Safety conforming to IEC 60950-1; Safety conforming to EN/IEC 61204-3

Operating altitude

2000 m

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

50…60 °C with derating factor mounting position A < 2000 m; -25…50 °C without derating mounting position A < 2000 m

Number of Units in Package 1

1

Number of Units in Package 2

120

Country of origin

PH

Warranty (in months)

18

EAN

3389119405607

Standard

IEC 61204; EN 60950-1

Classification / Approval

CE, UL, CSA, RCM, EAC

HS Code

8504.40
