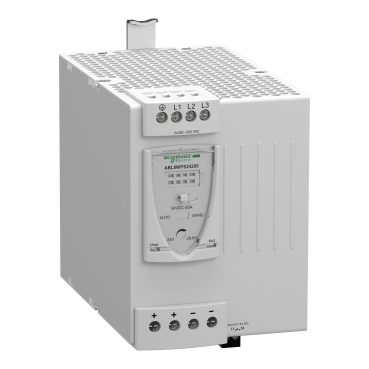

Schneider Phaseo ABL8 3-Phase Power Supply 24V DC 20A 480W

Schneider Electric ABL8WPS24200 Phaseo ABL8 regulated SMPS, 380-500V AC three-phase input, 24V DC / 20A / 480W output. DIN rail mount, electronic protections.

Series

Phaseo ABL8 WPS, Input Voltage: 380-500V AC, 3-phase, 50/60Hz, Output Voltage: 24V DC regulated, Output Current: 20A, Output Power: 480W, Efficiency: Approx 92%, Protections: Short-circuit, overcurrent, over-temperature, overvoltage, Mounting: 35mm DIN rail / panel, Ip Rating: IP20

Voltage

24 V

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Nominal input voltage

380...500 V AC three phase, terminal(s): L1, L2, L3

Rated power in W

480 W

Output voltage

24 V DC

Power supply output current

20 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

Low frequency harmonic currents

Input voltage limits

320...550 V AC

Inrush current

25 A

Power factor

0.65 at 24 V DC

Efficiency

92 %

Output voltage adjustment

24...28.8 V adjustable

Power dissipation in W

38.4 W

Provided equipment

Power factor correction filter conforming to IEC 61000-3-2

Output protection type

Against overload, protection technology: manual or automatic reset; Against overvoltage, protection technology: 30...32 V, manual reset; Against short-circuits, protection technology: manual or automatic reset; Against undervoltage, protection technology: tripping if U < 21.6 V; Thermal, protection technology: automatic reset

Connections - terminals

Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay; Screw type terminals: 3 x 0.5...3 x 4 mm², (22 AWG...12 AWG) for input connection; Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for input ground connection; Screw type terminals: 4 x 0.5...4 x 10 mm², (22 AWG...8 AWG) for output connection

Status LED

1 LED (green and red) output voltage; 1 LED (green, red and orange) output current

Depth

160 mm

Height

143 mm

Width

96 mm

Product weight

1.6 kg

Output coupling

Series; Parallel

Marking

CE

Mounting support

35 x 7.5 mm symmetrical DIN rail; 35 x 15 mm symmetrical DIN rail

Operating position

Vertical

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

3500 V with between input and ground; 4000 V with between input and output; 500 V with between output and ground

Standards

CSA C22.2 No 60950-1; UL 508; EN/IEC 62368-1

Product certifications

CCSAus; EAC; UL; RCM

Environmental characteristic

EMC conforming to IEC 61000-6-1; EMC conforming to IEC 61000-6-3; EMC conforming to EN 55024; EMC conforming to IEC 61000-6-4; EMC conforming to EN/IEC 61204-3; Safety conforming to EN 61204-4; Safety conforming to IEC 60950-1

Operating altitude

2000 m

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

50…60 °C with derating factor mounting position A < 2000 m; -25…50 °C without derating mounting position A < 2000 m

Number of Units in Package 1

1

Number of Units in Package 2

45

Country of origin

PH

Warranty (in months)

18

EAN

3389119405645

Standard

IEC 61204; EN 60950-1

Classification / Approval

CE, UL, CSA, RCM, EAC

HS Code

8504.40
