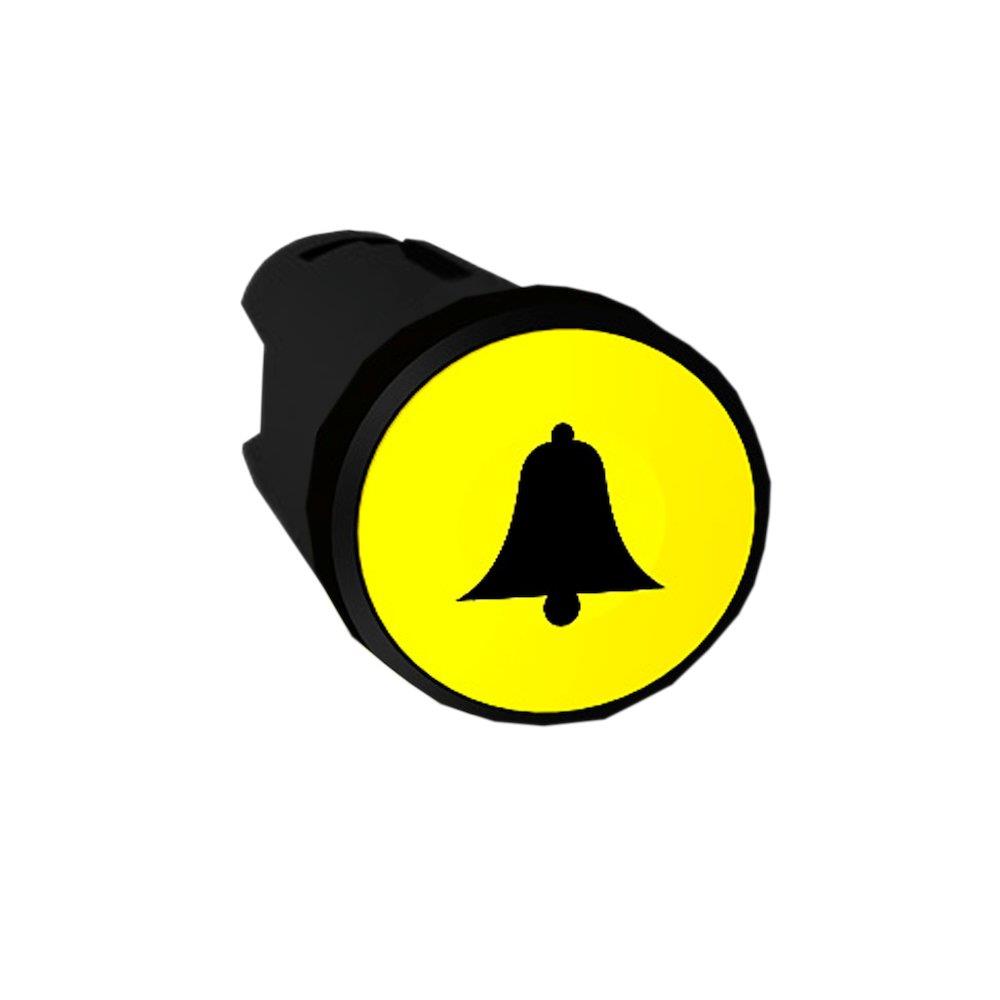

Schneider ZB5 Push Button - Harmony XB5, yellow
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB5 Push Button. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB5, color Yellow. Supplied under manufacturer part number ZB5AA551, EAN 3389119023887, HS code 3926.90, country of origin France.
Technical Specifications
- Product type
- Push buttons
- Product group
- Push buttons and signal units
- Series
- Harmony XB5
- Color
- Yellow
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 0.1051 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 39269097
- HS code
- 3926.90
- Manufacturer part number
- ZB5AA551
- Range of product
- Harmony XALF
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Yellow flush, bell symbol (white)
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 28 mm
- Product weight
- 0.018 kg
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; EN 81-1
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Warranty (in months)
- 18
- EAN
- 3389119023887
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3389119023887
- MPN ZB5AA551
