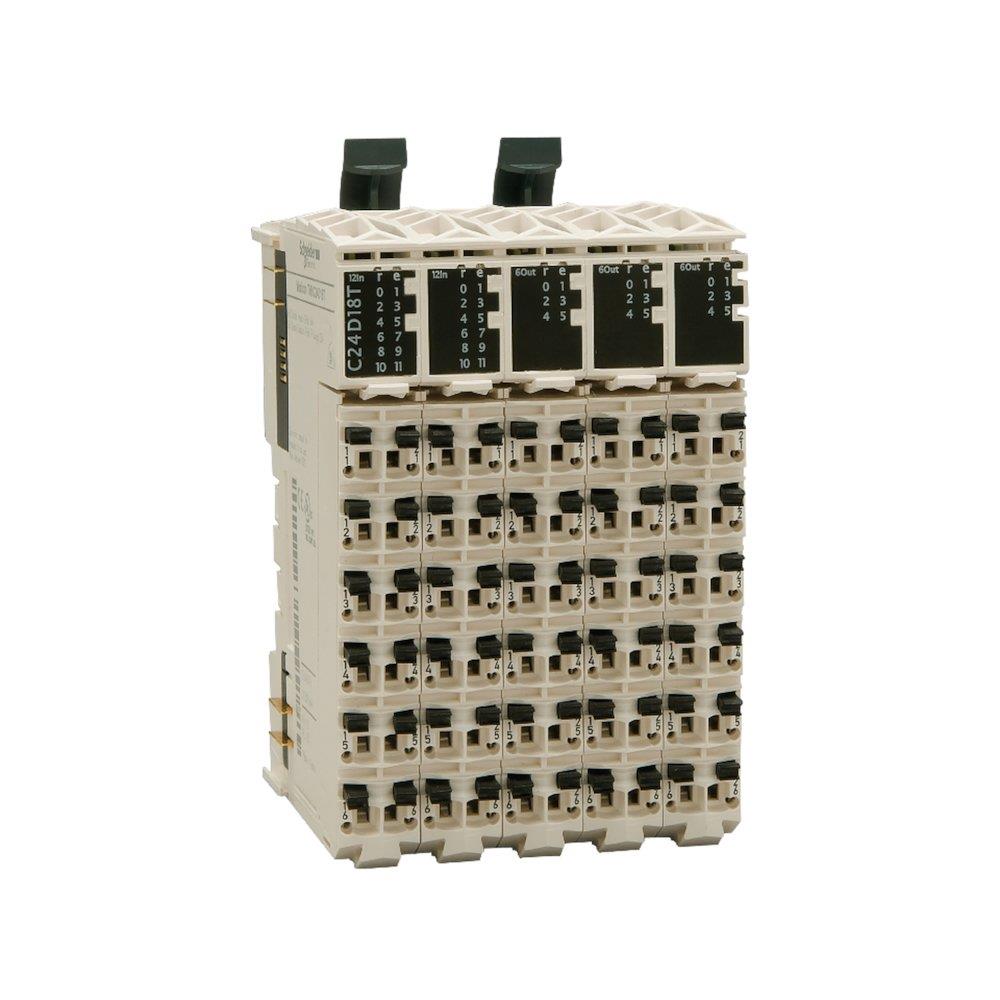

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V, number of digital inputs 12. Supplied under manufacturer part number TM5C12D8T, EAN 3595864074368, HS code 8536.90, country of origin Austria.

Product type

Distributed I/O Product group: Industry and automation Supply voltage: 24 V Number of digital inputs: 12 Carbon footprint (EPD): 2.3804 kg CO2e per pcs Country of origin: Austria Customs tariff code (EU CN): 85369095 HS code: 8536.90 Manufacturer part number: TM5C12D8T Range of product: Modicon TM5 Product or component type: Compact I/O expansion block Discrete input number: 12 Discrete input voltage: 24 V DC (voltage limits: 20.4...28.8 V) Discrete input logic: Sink Discrete output number: 8 Discrete output logic: Source Discrete output voltage: 24 V DC (20.4...28.8 V) Enclosure material: Plastic Colour: White Input/output number: 20 Input/output number of splitter box: 12 I + 8 O Number of modules: digital input: 3 module(s) x 4; digital output: 2 module(s) x 4 Discrete output function: 1 NO Response time: <= 300 µs from state 0 to state 1 for output; <= 300 µs from state 1 to state 0 for output minimum switching current: 10 mA at 5 V DC Max current: 1000 mA sensor supply; 1500 mA actuator supply; 4000 mA loads on I/O power segment Sensor power supply: 24 V, 500 mA for all channels with overload, short-circuit and reverse polarity protection Discrete input compatibility: 12 at 24 V DC Discrete input current: 3.75 mA at 24 V DC Voltage state 1 guaranteed: >= 15 V Voltage state 0 guaranteed: <= 5 V Input impedance: 6.4 kOhm Input filtering: <= 100 ms hardware; <= 25 ms configurable by software Discrete output current: 0.5 A per output Maximum leakage current: 5 µA when switched off Maximum voltage drop: <0.3 V at 500 mA for output Typical current consumption: 68 mA at 5 V DC; 80 mA at 24 V DC for inputs/outputs Electrical connection: Removable spring terminal block Power dissipation in W: 2.36 W Isolation between channels: None Isolation between channels and bus: 500 Vrms AC Local signalling: 5 LEDs (green) for power supply; 5 LEDs (red) for power supply; 12 LEDs (green) for input status; 8 LEDs (yellow) for output status Mounting support: DIN rail Height: 99 mm Width: 12.5 mm Depth: 75 mm Product weight: 0.24 kg IP degree of protection: IP20 Marking: CE Product certifications: C-Tick; GOST-R; CSA; CULus Standards: IEC 61131-2; UL 508; CSA C22.2 No 213; CSA C22.2 No 142 Ambient air temperature for operation: -10…50 °C (vertical installation); -10…60 °C (horizontal installation) Ambient air temperature for storage: -40…70 °C Relative humidity: 5…95 % without condensation Operating altitude: 0...2000 m Pollution degree: 2 Vibration resistance: 1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail Shock resistance: 15 gn for 11 ms Warranty (in months): 18 EAN: 3595864074368
