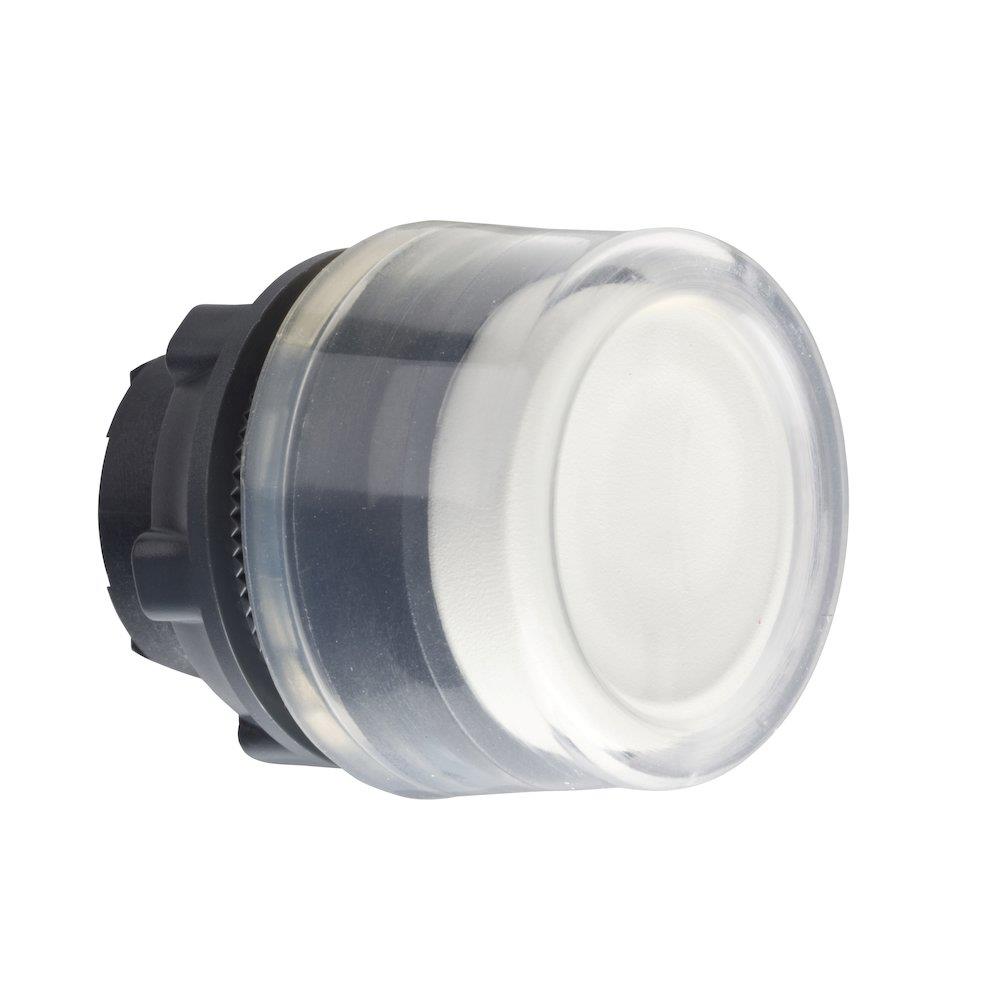

Schneider ZB5 Push Button Head with clear silicone cap and spring return - Harmony XB5, white
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB5 Push Button Head with clear silicone cap and spring return. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB5, color White. Supplied under manufacturer part number ZB5APA1, EAN 3389110966374, HS code 3926.90, country of origin France.
Technical Specifications
- Product type
- Push buttons
- Product group
- Push buttons and signal units
- Series
- Harmony XB5
- Color
- White
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 0.1317 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 39269097
- HS code
- 3926.90
- Manufacturer part number
- ZB5APA1
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Product compatibility
- Not compatible with legend holder
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- White flush, unmarked
- Operator additional information
- Clear boot
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 37 mm
- Product weight
- 20 kg
- Mechanical durability
- 10000000 cycles
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653
- Enclosure Type
- UL type 4X/13
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60947-1; JIS C8201-1
- Product certifications
- CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 200
- Number of Units in Package 3
- 1600
- Warranty (in months)
- 18
- EAN
- 3389110966374
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3389110966374
- MPN ZB5APA1
Product Documentation
