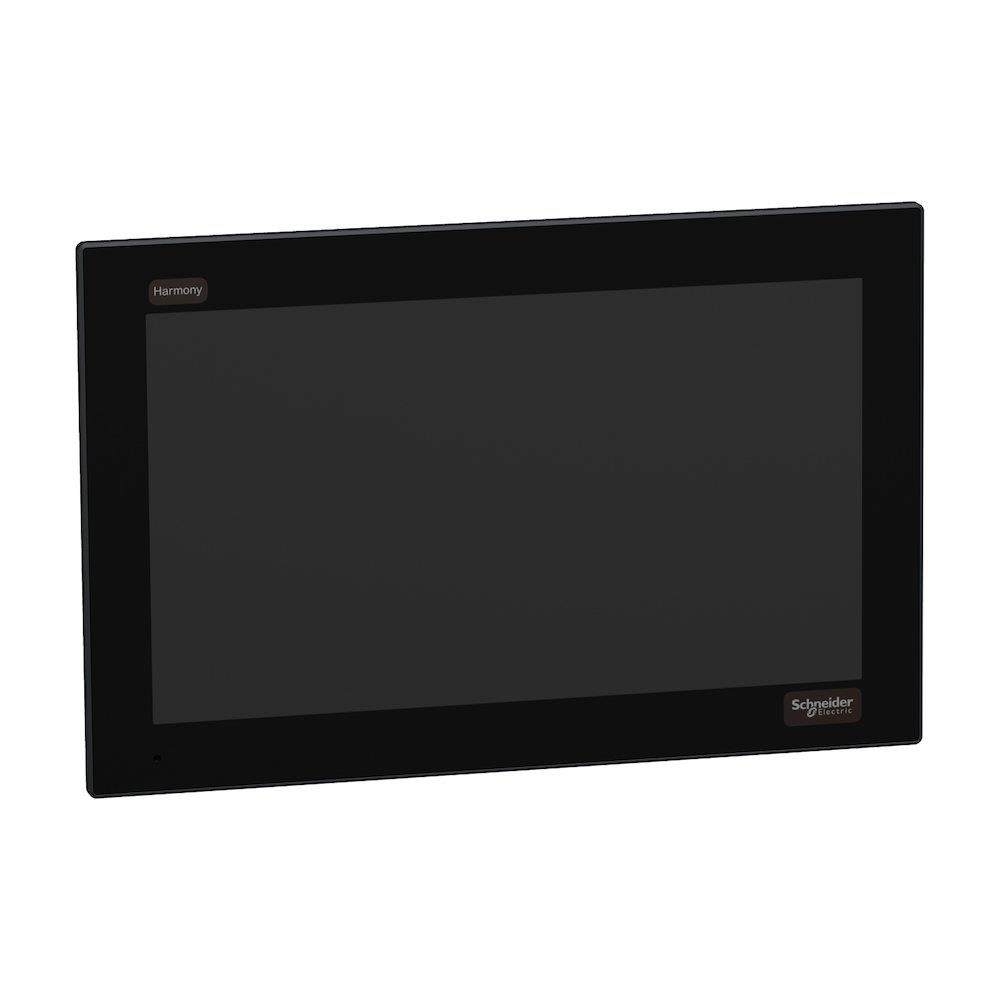

Schneider Harmony FP6 Flat Screen - HMIFP6700WCD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Harmony FP6 Flat Screen. Industrial PC (Electrical Engineering / Industry and automation). Principal data: type HMIFP6700WCD. Supplied under manufacturer part number HMIFP6700WCD, EAN 3606481808271, HS code 8528.52, country of origin Indonesia.
Technical Specifications
- Product type
- Industrial PC
- Product group
- Industry and automation
- Type
- HMIFP6700WCD
- REACH SVHC substance above 0.1%
- Lead-monoxide, Lead, DME, Diboron-trioxide
- Carbon footprint (EPD)
- 58.6584 kg CO2e per pcs
- Country of origin
- Indonesia
- Customs tariff code (EU CN)
- 85285291
- HS code
- 8528.52
- Manufacturer part number
- HMIFP6700WCD
- Range of product
- Harmony FP6
- Product or component type
- Touch panel screen
- Display size
- 15.6 inch
- Aspect ratio
- 16:9
- Display resolution
- 1366 x 768 pixels FWXGA
- Display colour
- 16 million colours
- Pixel resolution
- 1366 x 768
- Backlight lifespan
- 50000 hours at 25 °C
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- DVI-D video port; USB type B USB 2.0
- Inrush current
- 30 A
- Power consumption in W
- 20.0 W
- Type of cooling
- Natural
- Device mounting
- Panel mounting; Direct mounting VESA
- Display type
- LED
- Touch panel
- Multi-touch projected capactive technology (PCT)
- Cut-out dimensions
- 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
- Width
- 408 mm
- Depth
- 67.5 mm
- Height
- 264 mm
- Product weight
- 5.3 kg
- IP degree of protection
- IP66f; IP67f; Type 1; Type 4X; Type 12; Type 13
- Ambient air temperature for operation
- 0…55 °C
- Pollution degree
- 2
- Vibration resistance
- 1 gn (f = 5…9 Hz) - single amplitude - conforming to IEC 61131-2; 1 gn (f = 9…150 Hz) - fixed amplitude - conforming to IEC 61131-2; 1 gn - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
- Standards
- CE; FCC part 15; UL 61010-2-201; CSA C22.2 No 61010-2-201
- Product certifications
- RCM; UKCA; DNV (except 22" wide display); ATEX zone 2; ATEX zone 22 dust; CULus Class 1 Division 2; IECEx zone 2 (DC model, front USB cover must be locked with screw); IECEx zone 22 (DC model, front USB cover must be locked with screw)
- Ambient air temperature for storage
- -20…60 °C
- Operating altitude
- 2000 m
- Shock resistance
- 147 m/s² conforming to IEC 61131-2; 147 m/s² 3 shocks in each direction X, Y and Z
- Electromagnetic compatibility
- Electrostatic discharge immunity test 6 kV contact discharge conforming to IEC 61000-4-2 level 3; Electrostatic discharge immunity test 8 kV air discharge conforming to IEC 61000-4-2 level 3; Electrical fast transient/burst immunity test 2 kV power ports conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test 1 kV signal ports conforming to IEC 61000-4-4
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- EAN
- 3606481808271
Standards & Compliance
- HS Code
- 8528.52
Cross References
- EAN 3606481808271
- MPN HMIFP6700WCD
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Spacial CRN Wall cabinet - 1000 x 600mm, 400mm
NSYCRN106400T
Schneider Electric
Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 13A, 1P, D
M9F23113
Schneider Electric
Schneider ZBY Sign Holder - 30 x 40mm, 8 x 27mm, without Text, Black / Red
ZBY2H101
Schneider Electric
Schneider ZB5 Holder - Harmony XB5
ZB5AZ079
Schneider Electric

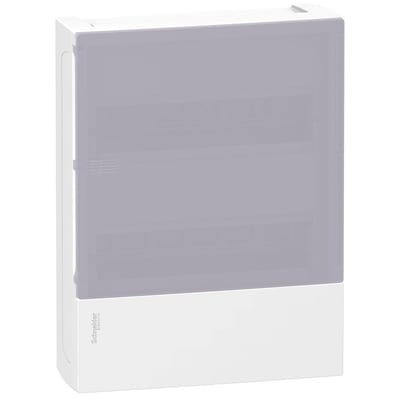

Schneider RESI9 MP Group Panel clear - 2 x 12
MIP10212T
Schneider Electric
Schneider CA4K Control Relay - TeSys K, 3NO - 1NC, 48 DCV
CA4KN31EW3
Schneider Electric

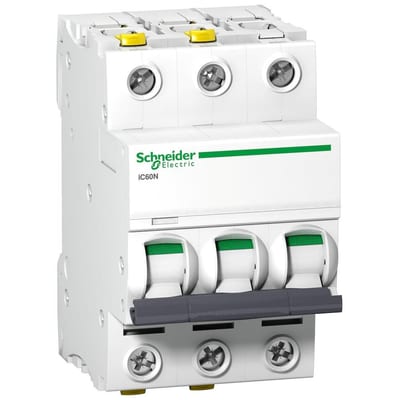

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 63A, 3P, B
A9F03363
Schneider Electric

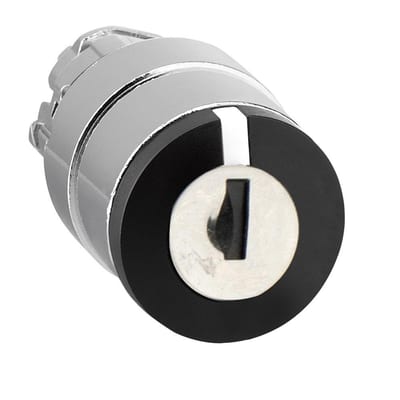

Schneider ZB4 Key Handle - Harmony XB4, 3PCS 3389110651874
