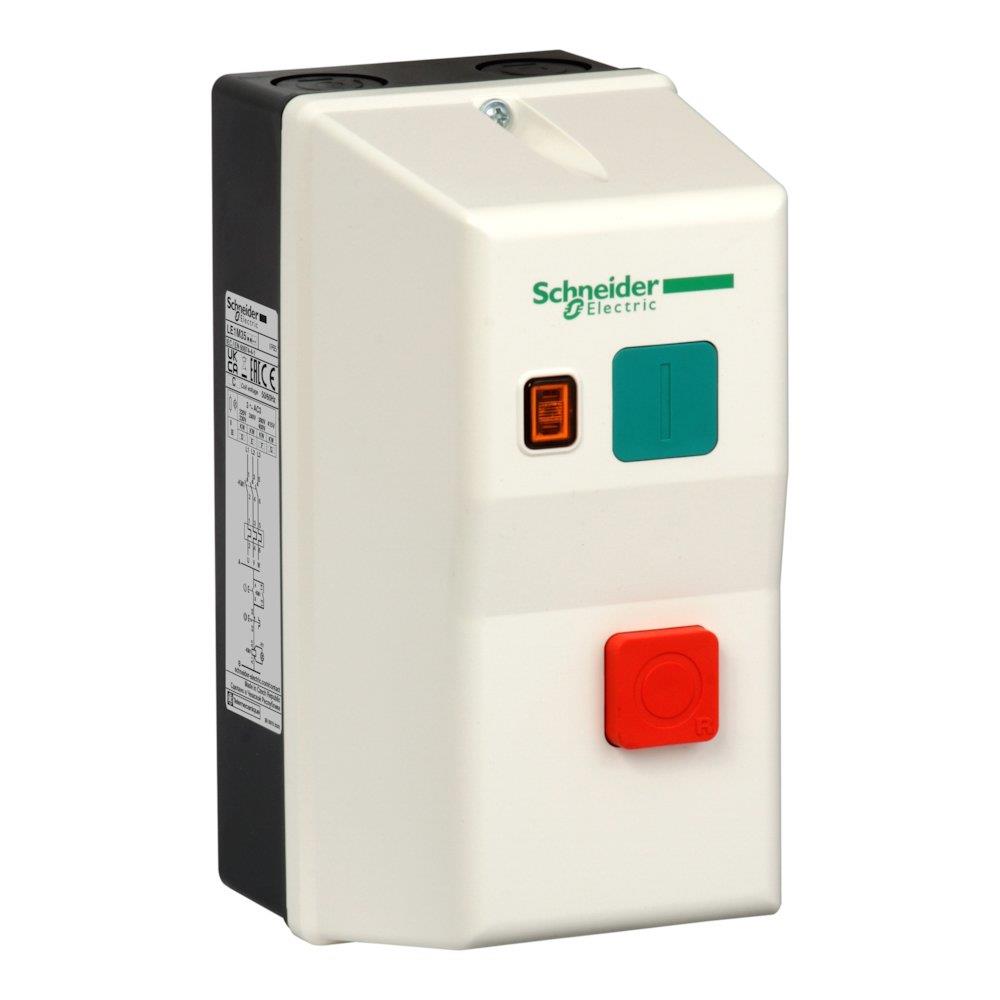

Schneider LE1M Motor Starter - 380V, 0.25kW, 65

Schneider LE1M Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 380 V, power 0.25 kW, protection class (ip) 65. Supplied under manufacturer part number LE1M35Q705, EAN 3389110765700, HS code 8537.10, country of origin Czechia.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

380 V

Power

0.25 kW

Protection class (IP)

65

REACH SVHC substance above 0.1%

Cyclopentamethicone, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxane

Carbon footprint (EPD)

5.7777 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

LE1M35Q705

GTIN (EAN)

3389110765700

Range

TeSys

Product name

TeSys LE

Device short name

LE1M

Product or component type

Enclosed DOL starter

Device application

Standard

Utilisation category

AC-3

Device composition

Contactor; Earth terminal; Neutral terminal; Thermal overload relay

Thermal protection adjustment range

0.54…0.8 A

Motor power kW

0.12 kW at 240 V AC 50/60 Hz; 0.25 kW at 415 V AC 50/60 Hz; 0.12 kW at 220/230 V AC 50/60 Hz; 0.25 kW at 380/400 V AC 50/60 Hz

[Uc] control circuit voltage

380 V AC 50/60 Hz

Control type

Push-button start green I; Push-button stop/reset red O

Local signalling

Operating: LED (yellow)

Cable entry number

2 ISO20 top; 2 ISO25 top; 2 Pg 13 top; 2 Pg 21 top; 2 ISO20 bottom; 2 ISO25 bottom; 2 Pg 13 bottom; 2 Pg 21 bottom; 2 Pg 16 top; 2 Pg 16 bottom

Width

78 mm

Height

160 mm

Depth

108 mm

Product weight

0.6 kg

Material

ABS (acrylonitrile butadiene-styrene)

IP degree of protection

IP65 conforming to IEC 60529

Standards

IEC 60947-4-1

Ambient air temperature for operation

-5…40 °C

Environmental characteristic

Standard environment

Product certifications

UKCA

Warranty (in months)

18

HS Code

8537.10

• EAN 3389110765700
• MPN LE1M35Q705
