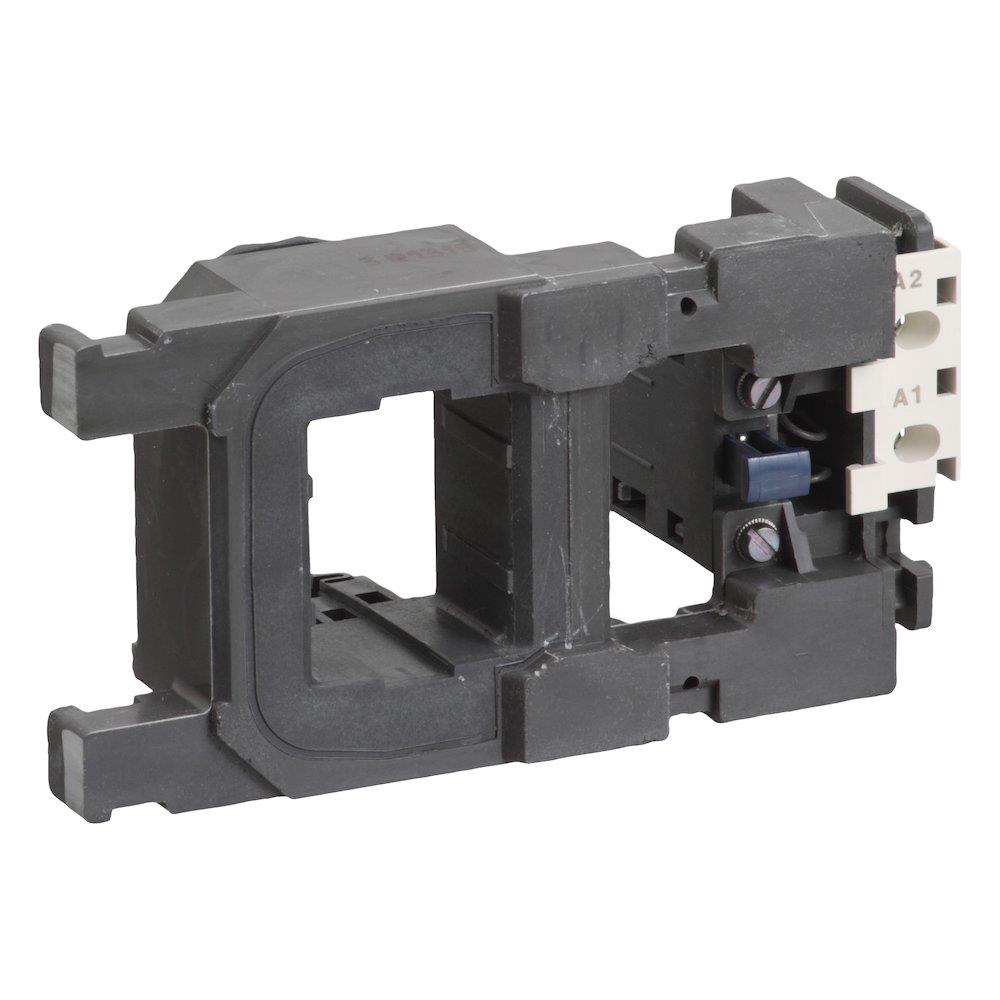

Schneider LX4FH Coil - TeSys F

Schneider LX4FH Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys F. Supplied under manufacturer part number LX4FH024, EAN 3389110083552, HS code 8504.50, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys F

Carbon footprint (EPD)

4.2232 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85045000

HS code

8504.50

Manufacturer part number

LX4FH024

Range

TeSys

Product or component type

Contactor coil

Device short name

LX4FH

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F265; LC1F330

Control circuit type

DC low consumption

[Uc] control circuit voltage

24 V DC

Inductance of closed circuit

26.3 H

Average resistance

0.9 Ohm inrush at 20 °C; 192 Ohm holding at 20 °C

Operating time

40...50 ms closing; 40...65 ms opening

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.15...0.2 Uc (at 55 °C)

Inrush power in W

750 W (at 20 °C)

Hold-in power consumption in W

5 W at 20 °C

Ambient air temperature for operation

-5…55 °C

Product weight

0.74 kg

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

EAN

3389110083552

HS Code

8504.50
