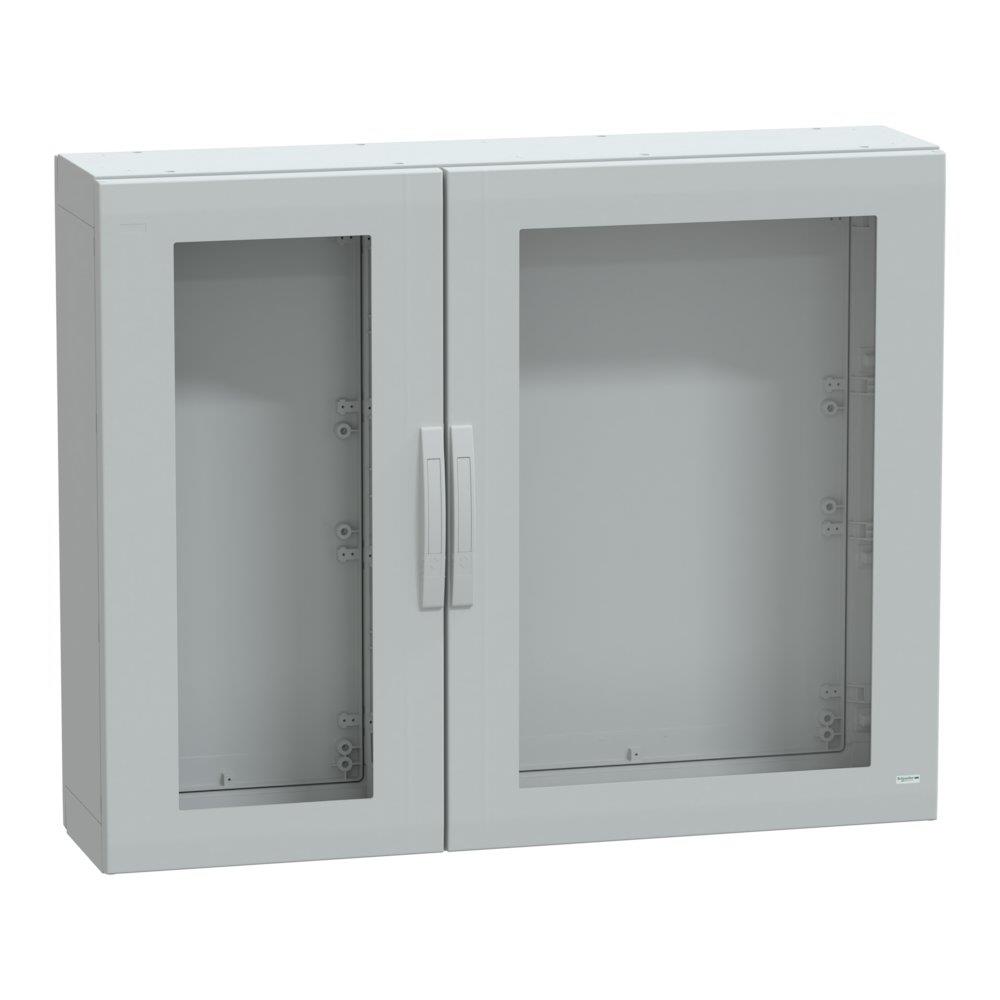

Schneider Thalassa PLA Floor Cabinet - 1000 x 1250mm, 320mm 3606480774409
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Thalassa PLA Floor Cabinet. Floor cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 1000 x 1250 mm, depth 320 mm. Supplied under manufacturer part number NSYPLA10123TG, EAN 3606480774409, HS code 9403.70, country of origin Spain.
Technical Specifications
- Product type
- Floor cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 1000 x 1250 mm
- Depth
- 320 mm
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 126.0000 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94037000
- HS code
- 9403.70
- Manufacturer part number
- NSYPLA10123TG
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLA
- Nominal height
- 1000 mm
- Nominal width
- 1250 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel
- Body type
- Sealed top and bottom part assembled with side parts
- Door type
- Transparent front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (120 °)
- Lock type
- 4 points lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL 508 A
- NEMA degree of protection
- NEMA 2; NEMA 1; NEMA 13; NEMA 12
- Product certifications
- UL/cUL listed; DNV Marine; Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP65 conforming to IEC 60529 (completely sealed)
- IK degree of protection
- IK08 conforming to IEC 62262 (glazed door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Warranty (in months)
- 18
- EAN
- 3606480774409
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480774409
- MPN NSYPLA10123TG
