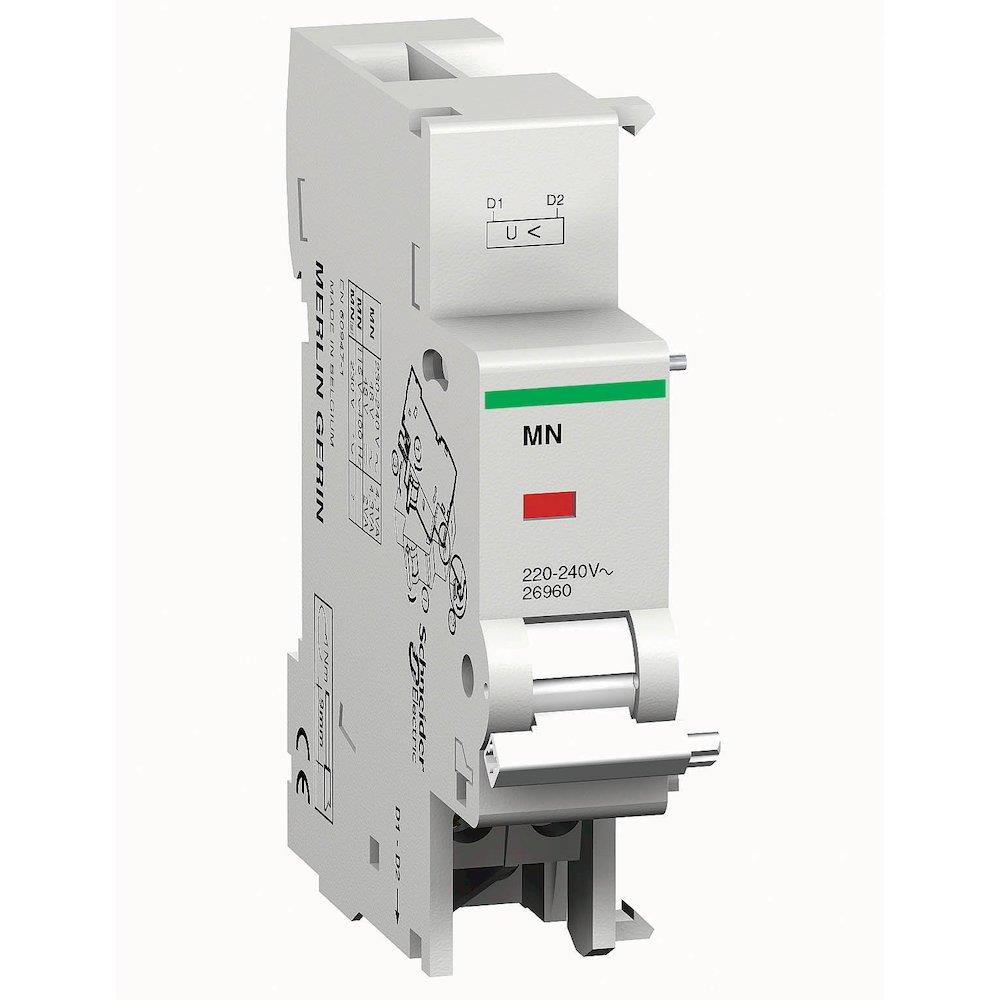

Schneider MULTI9 C60 MN Undervoltage Coil - 3606480639173
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Multi9 C60 MN Undervoltage Coil. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number M9A27108, EAN 3606480639173, HS code 8536.50, country of origin Belgium.
Technical Specifications
- Product type
- Accessories for fuses
- Product group
- Components for panels and boxes
- REACH SVHC substance above 0.1%
- Lead, Diboron-trioxide, Lead-monoxide
- Carbon footprint (EPD)
- 0.4970 kg CO2e per pcs
- Country of origin
- Belgium
- Customs tariff code (EU CN)
- 85365080
- HS code
- 8536.50
- Manufacturer part number
- M9A27108
- range of product
- Multi9
- Product or component type
- Undervoltage release
- Device short name
- MN
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz; 24 V DC
- Control type
- Standard
- 9 mm pitches
- 2
- Range compatibility
- Multi9 C60BP; Multi9 C60BPR; Multi9 C60SP; Multi9 GFP; Multi9 C60H-DC
- Local signalling
- Action indicator
- mounting mode
- Fixed
- Mounting support
- DIN rail
- Comb busbar and distribution block compatibility
- Top: YES
- Height
- 82.5 mm
- Width
- 18 mm
- Depth
- 68 mm
- Product weight
- 0.066 kg
- Connections - terminals
- Clamp terminal (bottom) - 1 cable(s) 2.5 mm² (14 AWG) - rigid; Clamp terminal (bottom) - 2 cable(s) 1.5 mm² (16 AWG) - rigid
- Wire stripping length
- 9 mm for bottom connection
- Tightening torque
- 1 N.m bottom
- Standards
- EN/IEC 60947-2
- Product certifications
- PCT; UR; UL
- Pollution degree
- 3
- Ambient air temperature for operation
- -25…50 °C
- Ambient air temperature for storage
- -40…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 32
- Warranty (in months)
- 18
- EAN
- 3606480639173
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480639173
- MPN M9A27108
Product Documentation
