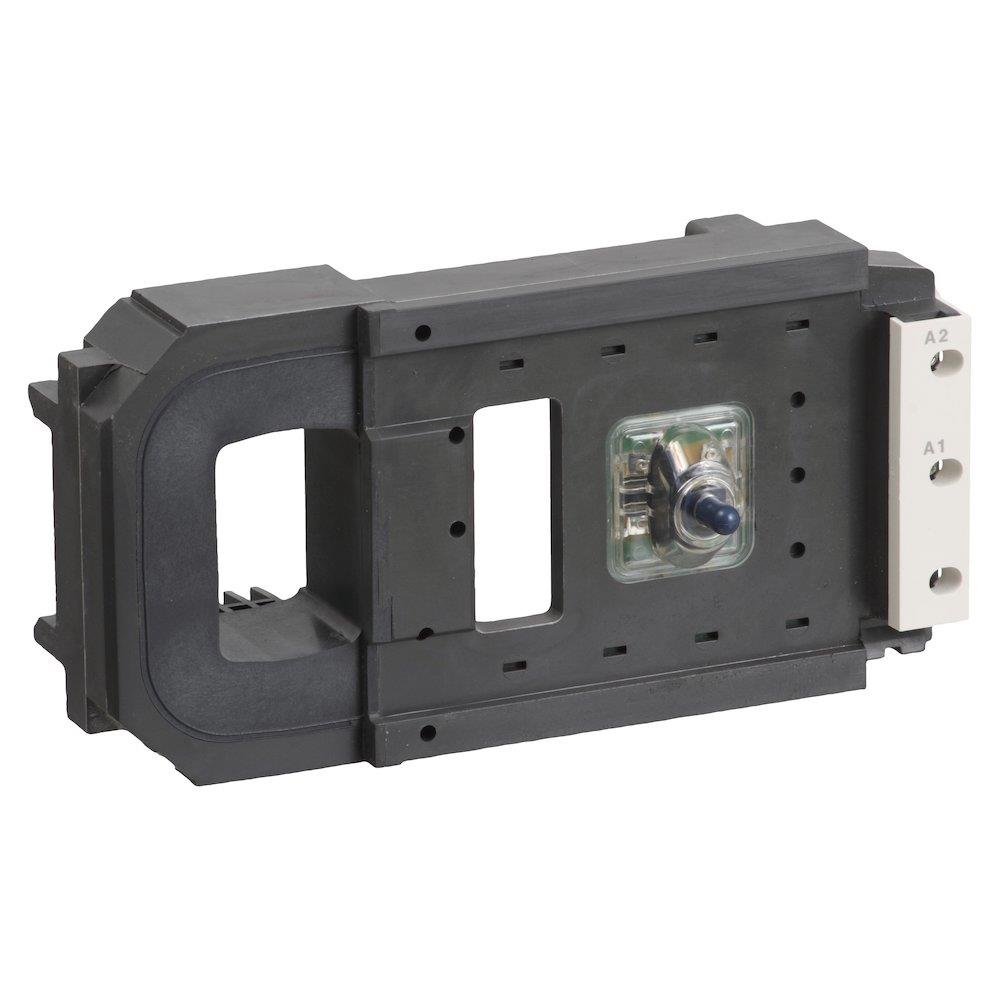

Schneider LX4F Coil - TeSys F

Schneider LX4F Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys F. Supplied under manufacturer part number LX4F8QW, EAN 3389118114647, HS code 8504.50, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys F

Carbon footprint (EPD)

4.8879 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85045000

HS code

8504.50

Manufacturer part number

LX4F8QW

Range

TeSys

Product or component type

Contactor coil

Device short name

LX4F8

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F800

Control circuit type

DC low consumption

[Uc] control circuit voltage

380...400 V DC

Operating time

40...50 ms opening; 60...80 ms closing

Mechanical durability

5 Mcycles

Maximum operating rate

600 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.3...0.5 Uc (at 55 °C)

Inrush power in W

1900 W (at 20 °C)

Hold-in power consumption in W

12 W at 20 °C

Ambient air temperature for operation

-5…55 °C

Product weight

1.65 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Warranty (in months)

18

EAN

3389118114647

HS Code

8504.50

• EAN 3389118114647
• MPN LX4F8QW
