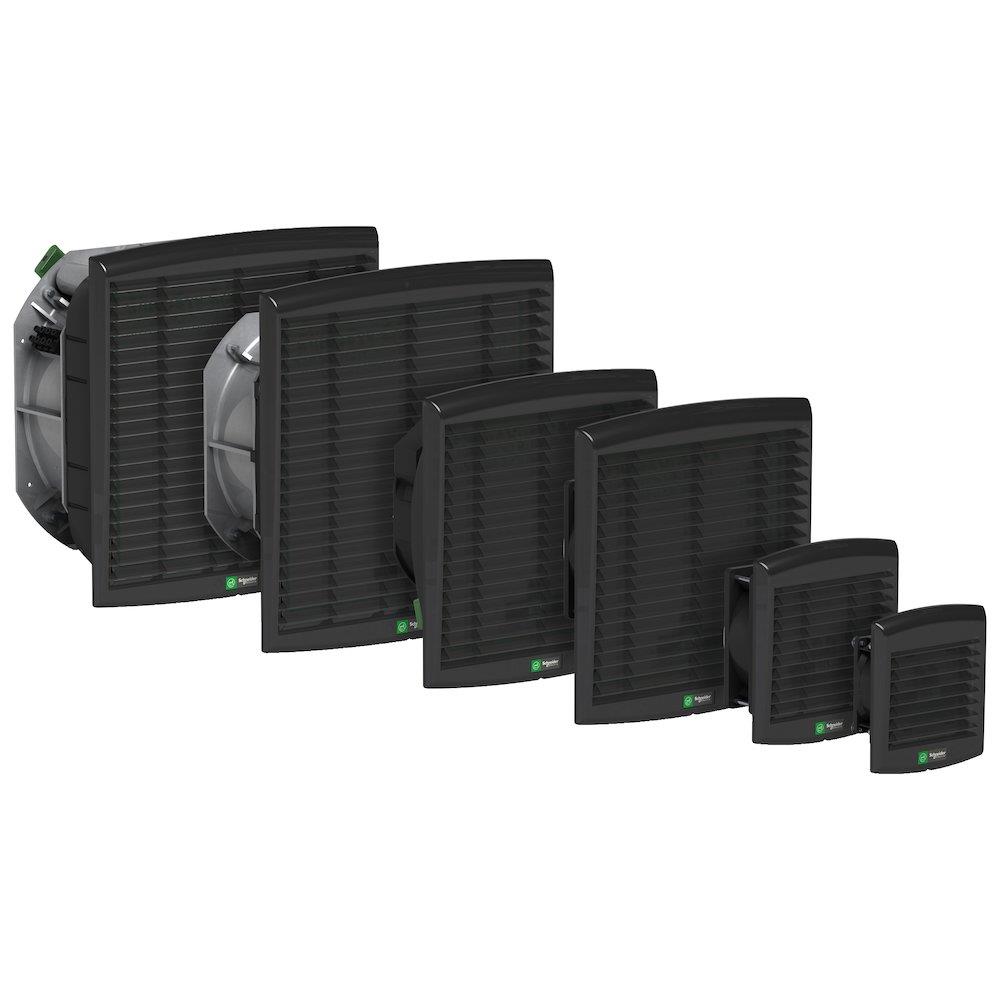

Schneider ClimaSys CV Fan - 165mm, 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ClimaSys CV Fan. Climate control (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: installation dimension 165 mm, supply voltage 230 V. Supplied under manufacturer part number NSYCVF165M230DG, EAN 3606481369758, HS code 8414.59, country of origin France.
Technical Specifications
- Product type
- Climate control
- Product group
- Tables, cabinets, and boxes
- Installation dimension
- 165 mm
- Supply voltage
- 230 V
- REACH SVHC substance above 0.1%
- Lead, 2-(2H-benzotriazol-2-yl)-4.6-d
- Carbon footprint (EPD)
- 4.0727 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 84145925
- HS code
- 8414.59
- Manufacturer part number
- NSYCVF165M230DG
- Range compatibility
- Spacial; Thalassa
- Type of filter
- G2
- Flow rate
- Free flow rate with standard filter: 165 m3/h at 50 Hz; Free flow rate with standard filter: 193 m3/h at 60 Hz
- Input voltage
- 230 V 50/60 Hz
- Certification
- CE; EAC; EMC directive 89/336 EEC
- Absorbed power
- 15.5 W 50 Hz; 14.4 W 60 Hz
- [In] rated current
- 0.2 A 50 Hz; 0.18 A 60 Hz
- Bearing type
- Ball
- Height
- External: 268 mm
- Width
- External: 248 mm
- Depth
- External : 104 mm
- Cut-out dimensions
- 223 x 223 mm
- Product weight
- 1.4 kg
- Material
- Outlet grille: injected thermoplastic (PC); Motor support: injected thermoplastic (ASA PC)
- Colour
- Outlet grille: smoked black (RAL 9005); Motor support: black (RAL 9005)
- Ambient air temperature for operation
- -20…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Maximum pressure
- 50 Pa flow rate 0 m³/h
- Connections - terminals
- Faston connector
- Device composition
- 1 axial motor; 1 external protective transparent smoked grille: front; 1 smart filter with dust sensor; 1 fan sensor ready to be mounted: rear of outlet grille; 1 cable gland; 1 cut-out template
- Condition of use
- Filter must be cleaned and replaced regularly; Flow rates depends on the work point, see ProClima software; Overfrequent filter replacement should be avoided; Surrounding environment must be relatively clean; Outside temperature must be 5 °C lower than inside temperature
- Warranty (in months)
- 18
- EAN
- 3606481369758
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606481369758
- MPN NSYCVF165M230DG
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60H-DC Circuit breaker - MULTI9 C60, 63A, 2P, C 3606480741715
M9U21163
Schneider Electric
Schneider Harmony P6 Screen - HMIDM6800WC
Schneider Electric

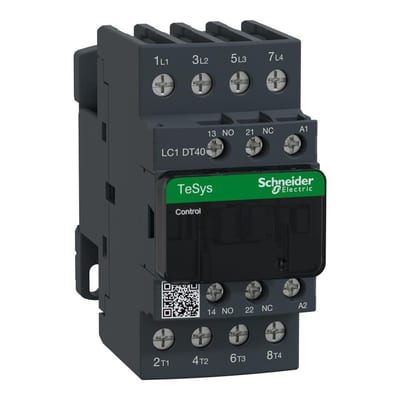

Schneider LC1D Contactor - TeSys D, 40A, 4P 3389110673722
LC1DT40D7
Schneider Electric

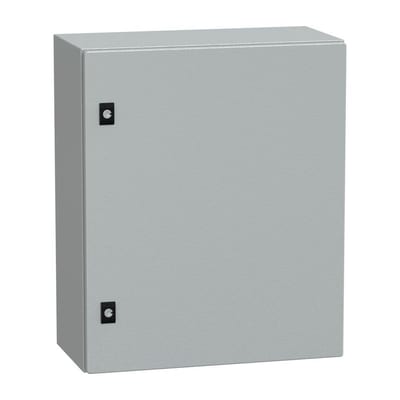

Schneider Spacial CRN Wall cabinet - 600 x 500mm, 250mm
NSYCRN65250P
Schneider Electric

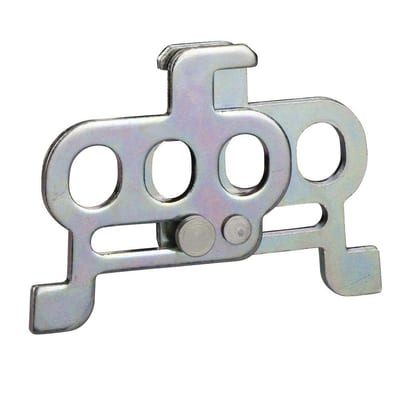

Schneider NSX Locking Bracket
44936
Schneider Electric

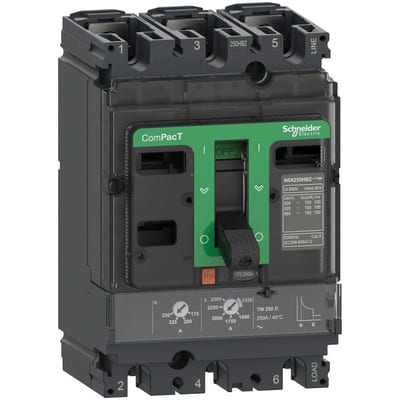

Schneider NSX250F Maximum breaker - 3606481997111
C25F3TM125
Schneider Electric

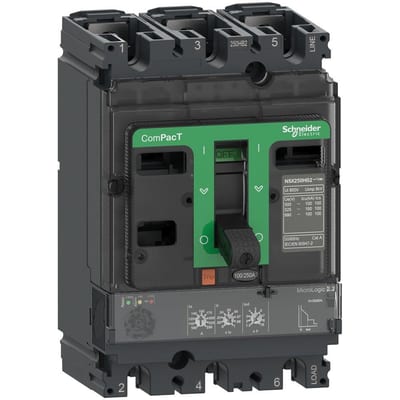

Schneider NSX250F Maximum breaker - 3606481997210
C25F32D250
Schneider Electric

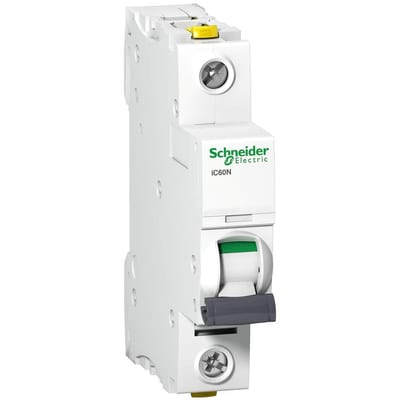

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 40A, 1P, C
