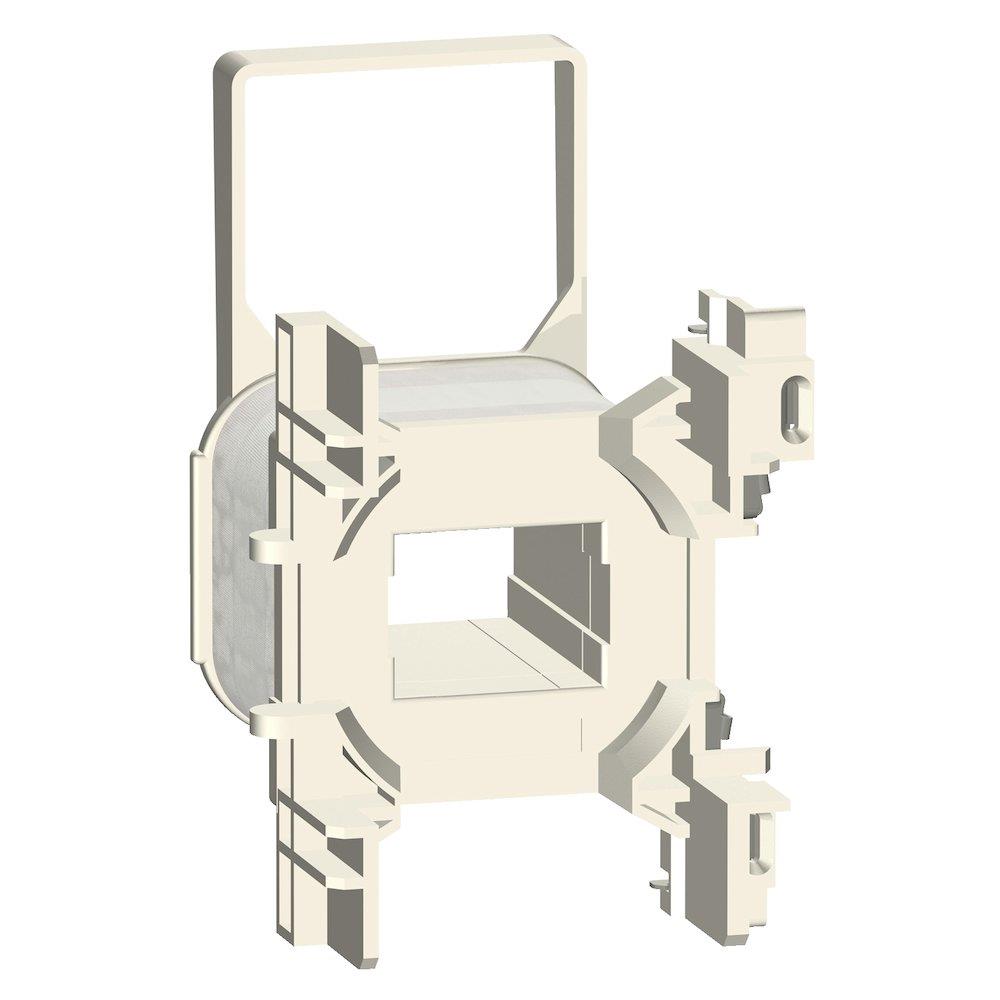

Schneider LXD3 Coil - TeSys D 3389118332713

Schneider LXD3 Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LXD3C7, EAN 3389118332713, HS code 8504.50, country of origin France.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

REACH SVHC substance above 0.1%

None

Carbon footprint (EPD)

1.0683 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85045000

HS code

8504.50

Manufacturer part number

LXD3C7

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD3

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

32 V AC 50/60 Hz

Average resistance

3.76 Ohm at 20 °C

Inductance of closed circuit

0.22 H

Product compatibility

LC1DT60A; LC1DT80A; LC1D40A...D65A

Mechanical durability

6 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

160 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

15 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4…5 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Number of Units in Package 1

1

Warranty (in months)

18

EAN

3389118332713

HS Code

8504.50

• EAN 3389118332713
• MPN LXD3C7
