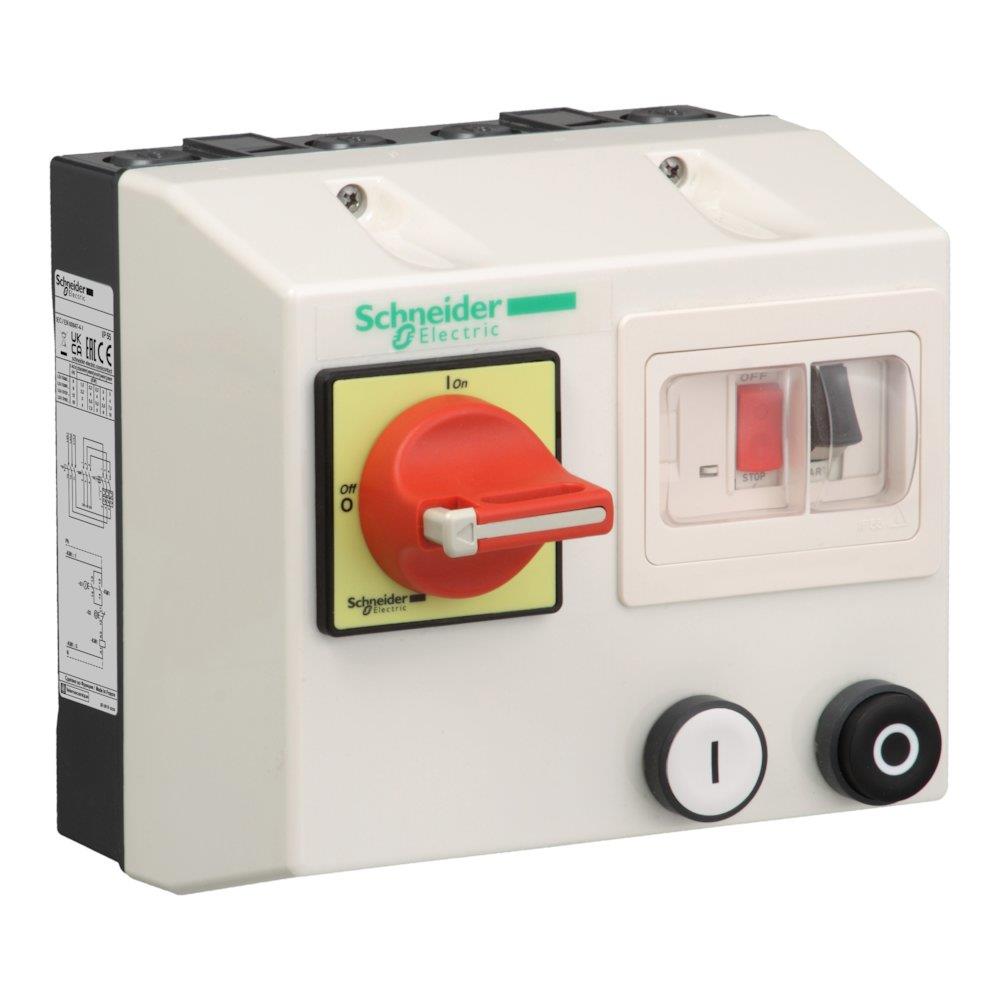

Schneider LG1K Motor Starter - 230V, 0.75kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LG1K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, power 0.75 kW, protection class (ip) 65. Supplied under manufacturer part number LG1K065P707, EAN 3389110087376, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 230 V
- Power
- 0.75 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 16.4124 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG1K065P707
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG1K
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Switch disconnector; Circuit-breaker
- Motor power kW
- 0.37 kW at 220/230 V AC 50/60 Hz; 0.75 kW at 400/415 V AC 50/60 Hz; 1.1 kW at 440 V AC 50/60 Hz
- Thermal protection adjustment range
- 1.6…2.5 A
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Rotary handle emergency stop red
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Width
- 175 mm
- Height
- 165 mm
- Depth
- 165 mm
- Product weight
- 0.97 kg
- Standards
- IEC 60204-1; IEC 60947-4-1
- Product certifications
- CE; UKCA
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110087376
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110087376
- MPN LG1K065P707
More from Schneider Electric
Schneider Electric
Schneider XVBC Siren - Harmony XVB Universal, 12 - 48 AC/DCV, black, 70mm
XVBC9B
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 1250 x 750mm, 320mm 3606480775291
NSYPLAT1273G
Schneider Electric
Schneider ComPact NS Connection - 3303430331292
Schneider Electric
Schneider TPSCON Spreader set - 3606485952772
TPSCON39
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 50A, 2P, B
A9F03250
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 500 x 1000mm, 420mm
NSYPLA5104G
Schneider Electric
Schneider RESI9 CX Door - white, 13
R9H13421
Schneider Electric

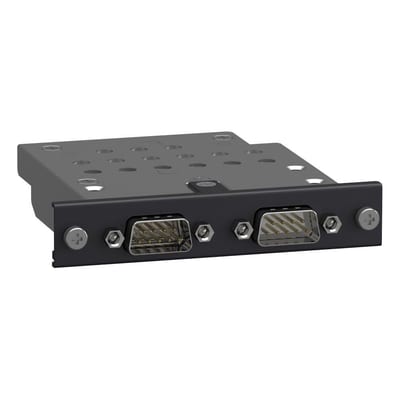

Schneider Harmony P6 Interface Card - HMIYP6MPR42P2
