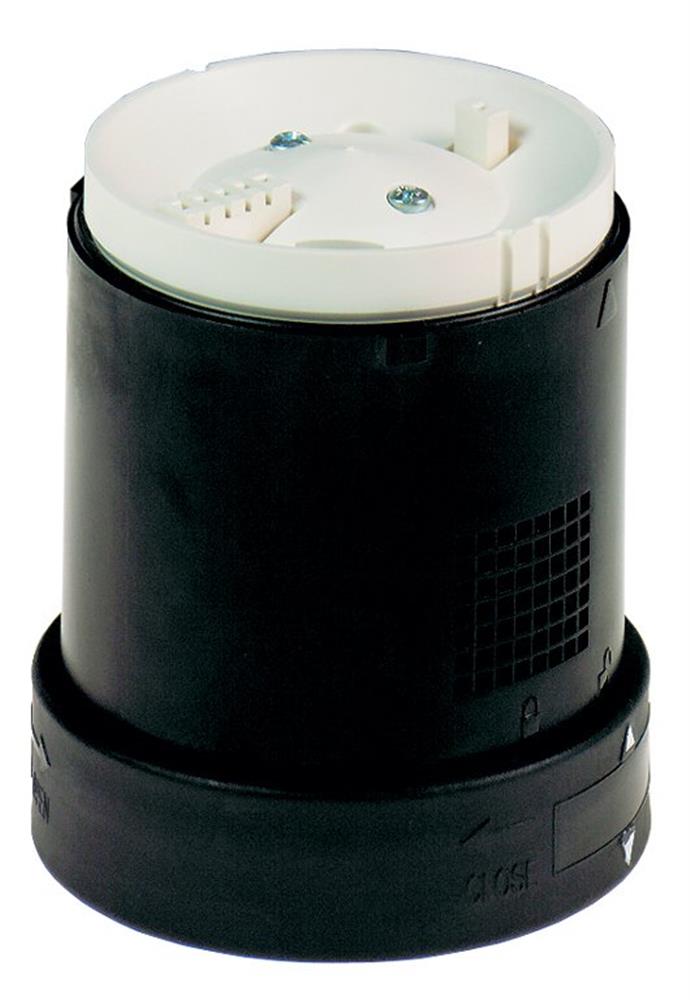

Schneider XVBC Siren - Harmony XVB Universal, 12 - 48 AC/DCV, black, 70mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XVBC Siren. Signal units (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XVB Universal, voltage 12 -48 V AC/DC, color Black, diameter 70 mm. Supplied under manufacturer part number XVBC9B, EAN 3389110845969, HS code 8531.90, country of origin Indonesia.
Technical Specifications
- Product type
- Signal units
- Product group
- Push buttons and signal units
- Series
- Harmony XVB Universal
- Voltage
- 12 -48 V AC/DC
- Color
- Black
- Diameter
- 70 mm
- Type
- Adjustable
- REACH SVHC substance above 0.1%
- Lead, Lead tetroxide, Lead-monoxide, Diboron-trioxide
- Sales unit
- Carton
- Carbon footprint (EPD)
- 1.0958 kg CO2e per pcs
- Country of origin
- Indonesia
- Customs tariff code (EU CN)
- 85319000
- HS code
- 8531.90
- Manufacturer part number
- XVBC9B
- Range of product
- Harmony XVB Universal
- Product or component type
- Indicator bank
- Beacon or indicator bank unit type
- Audible unit
- Mounting diameter
- 70 mm
- Component name
- XVBC
- Noise level
- 70…90 dB at 1 m
- [Us] rated supply voltage
- 12...48 V AC/DC
- Signalling type
- Continuous or intermittent buzzer
- Assembly style
- Customer assembly, up to 5 units
- Connections - terminals
- Screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Ui] rated insulation voltage
- 250 V conforming to IEC 60947-1
- Nominal voltage limit
- 0.85...1.1 Un conforming to IEC 60947-5-1
- Current consumption
- < 15 mA
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to IEC 60947-1
- Fundamental frequency
- 2.8 kHz
- CAD overall width
- 70 mm
- CAD overall height
- 63 mm
- CAD overall depth
- 70 mm
- Product weight
- 0.17 kg
- Product certifications
- CCC; EAC; CSA C22-2 No 14; UL 508
- Standards
- IEC 60947-5-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…50 °C
- Electrical shock protection class
- Class I on support tube conforming to IEC 61140; Class II on base unit conforming to IEC 61140
- IP degree of protection
- IP65 on fixing base XVBZ0. conforming to IEC 60529; IP66 on base unit conforming to IEC 60529
- NEMA degree of protection
- UL type 4X conforming to UL (indoor)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Number of Units in Package 3
- 288
- Warranty (in months)
- 18
- EAN
- 3389110845969
