Schneider LR97 Thermal Relay - TeSys D 8809755436384

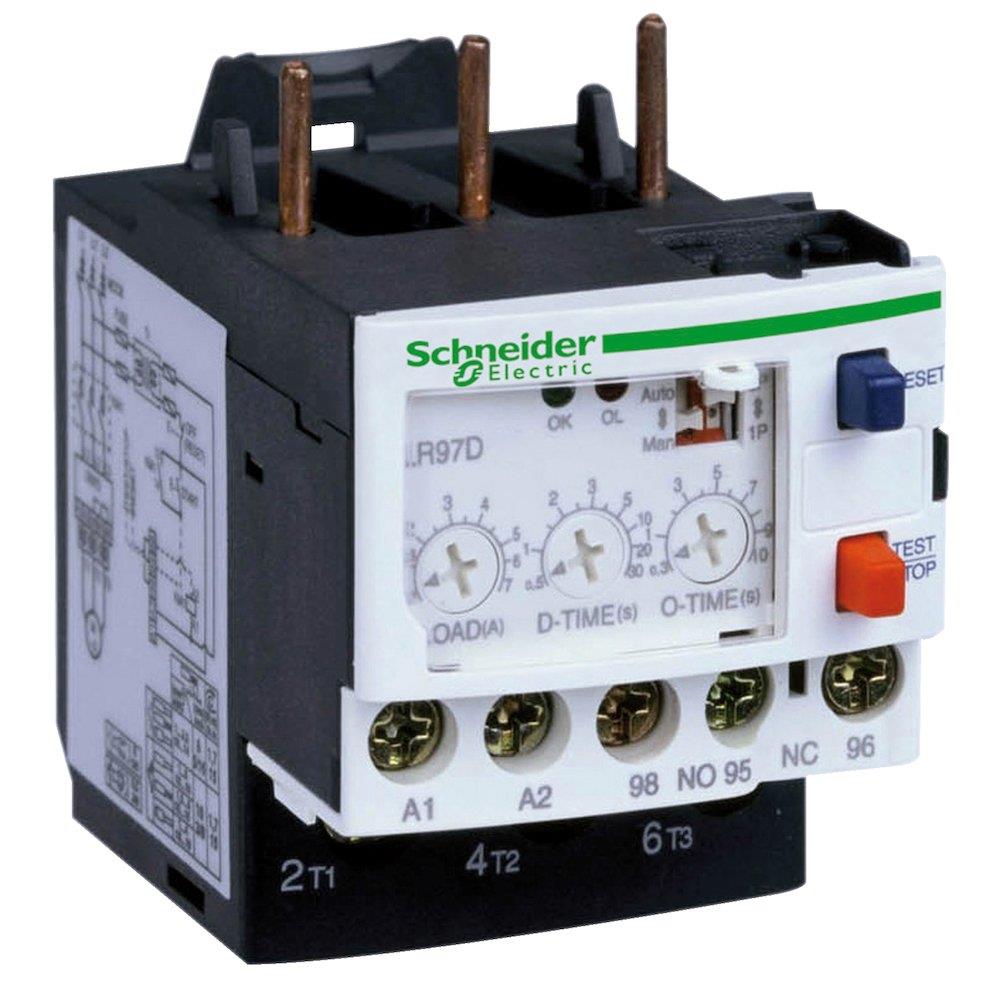

Schneider LR97 Thermal Relay. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LR97D38E, EAN 8809755436384, HS code 8536.49, country of origin South Korea.

Product type

Contactors and thermal relays motor control Product group: Components for panels and boxes Series: TeSys D REACH SVHC substance above 0.1%: Diboron-trioxide Carbon footprint (EPD): 1.7262 kg CO2e per pcs Country of origin: South Korea Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: LR97D38E Device short name: LR97 Product or component type: Electronic overcurrent relay Device application: Protection Relay application: Sensitivity to phase failure; Locked rotor, mechanical jamming I > 3 x Isetting; Overload Imax > Isetting Product compatibility: LC1D25...D38 Network type: AC; DC [Us] rated supply voltage: 48 V AC/DC Thermal protection adjustment range: 20…38 A [Ue] rated operational voltage: 600 V AC 50/60 Hz for power circuit conforming to CSA; 600 V AC 50/60 Hz for power circuit conforming to UL; 690 V AC 50/60 Hz for power circuit conforming to IEC 60947-4-1 Quantity per set: Set of 10 Network frequency: 50...60 Hz Mounting support: Direct on contactor; Rail Tripping threshold: 20...34 A Surge withstand: 6 kV conforming to IEC 61000-4-5 Contacts type and composition: 1 C/O [Ith] conventional free air thermal current: 3 A for control circuit Protection type: BS fuse 3 A - for control circuit; GB2 circuit breaker 3 A - for control circuit; GG fuse 3 A - for control circuit Maximum power: 28 W at 110 V DC conforming to IEC 60947; 28 W at 220 V DC conforming to IEC 60947; 55 W at 24 V DC conforming to IEC 60947; 55 W at 48 V DC conforming to IEC 60947; 140 VA at 48 V AC conforming to IEC 60947; 360 VA at 110 V AC conforming to IEC 60947; 360 VA at 220 V AC conforming to IEC 60947; 70 VA at 24 V AC conforming to IEC 60947 [Ui] rated insulation voltage: Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1 [Uimp] rated impulse withstand voltage: 6 kV Phase failure sensitivity: < 3 s Reset: Automatic reset 120 s fixed; Electrical by interruption of power supply for minimum 0.1 s; Manual reset Time range: 0.2...10 s - O-time knob; 0.3...10 s - O-time knob; 0.5..30 s - D-time knob Signalling function: 2 LEDs Connections - terminals: Control circuit: cable 1 x 1…25 mm²flexible with cable end; Control circuit: cable 1 x 1…25 mm²flexible without cable end; Control circuit: cable 2 x 1…25 mm²flexible without cable end; Control circuit: lug-clamp 1 x 1…25 mm²flexible with cable end; Control circuit: lug-clamp 1 x 1…25 mm²flexible without cable end; Control circuit: lug-clamp 2 x 1…25 mm²flexible with cable end; Control circuit: lug-clamp 2 x 1…25 mm²flexible without cable end; Control circuit: cable 2 x 1…25 mm²; Power circuit: cable 1 x 1…6 mm²flexible without cable end; Power circuit: cable 1 x 2.5…10 mm²flexible with cable end; Power circuit: lug-clamp 1 x 1…6 mm²flexible without cable end; Power circuit: lug-clamp 1 x 2.5…10 mm²flexible with cable end Tightening torque: Control circuit: 0.6...1.2 N.m on lug-clamp; Power circuit: 2 N.m on cable Height: 67.5 mm Width: 45 mm Depth: 67.5 mm Product weight: 0.172 kg Standards: IEC 60255-6; IEC 60947 Product certifications: GOST; UL; CSA Protective treatment: TH conforming to IEC 60068 IP degree of protection: IP20 conforming to IEC 60529 Ambient air temperature for operation: -25…60 °C conforming to IEC 60947-4-1 Ambient air temperature for storage: -30…80 °C Operating altitude: 2000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-7 Vibration resistance: 4 gn conforming to IEC 60068-2-6 Dielectric strength: 2 V 50 Hz conforming to IEC 60255-5 Resistance to electrostatic discharge: 6 kV in indirect mode; 8 kV in air Resistance to radiated fields: 10 V/m level 3 Resistance to fast transients: 2 kV Disturbance radiated/conducted: 10 V conforming to EN 61000-4-6; Class A conforming to EN 55011 Number of Units in Package 1: 1 Number of Units in Package 2: 24 Number of Units in Package 3: 384 Warranty (in months): 18 EAN: 8809755436384

HS Code

8536.49

• EAN 8809755436384
• MPN LR97D38E
