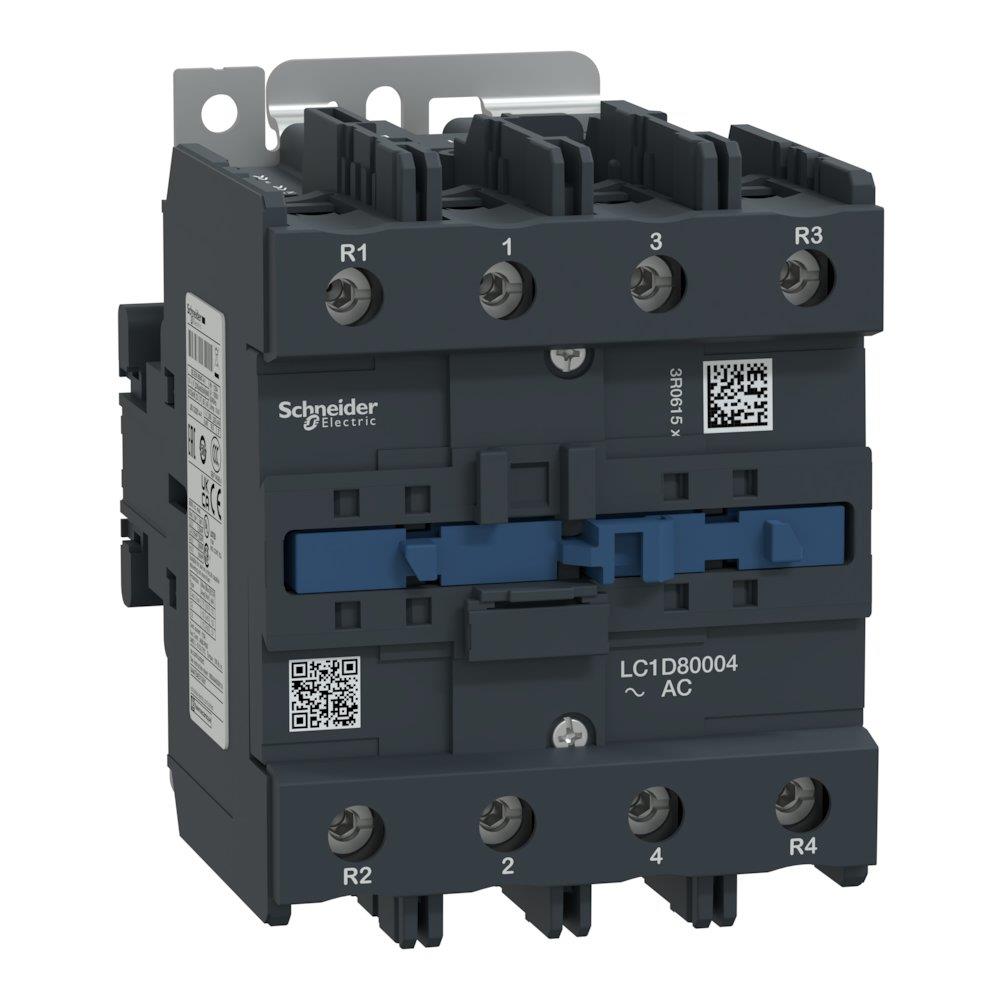

Schneider LC1D Contactor - TeSys D, 80A, 4P, 24 ACV

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 80 A, number of poles 4P, voltage 24 V AC. Supplied under manufacturer part number LC1D80004B7, EAN 3389110074130, HS code 8536.41, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

Current

80 A

Number of poles

4P

Voltage

24 V AC

Carbon footprint (EPD)

11.8588 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85364190

HS code

8536.41

Manufacturer part number

LC1D80004B7

Range

TeSys

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

[Ue] rated operational voltage

Power circuit: <= 300 V DC 25...400 Hz; Power circuit: <= 690 V AC

[Ie] rated operational current

125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit; 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit; 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit

[Uc] control circuit voltage

24 V AC 50/60 Hz

Motor power kW

22 kW at 220...230 V AC 50/60 Hz; 37 kW at 380...400 V AC 50/60 Hz; 45 kW at 660...690 V AC 50/60 Hz; 55 kW at 500 V AC 50/60 Hz; 45 kW at 415...440 V AC 50/60 Hz

Compatibility code

LC1D

Pole contact composition

4 NO

Protective cover

Without

[Ith] conventional free air thermal current

125 A (at 60 °C) for power circuit

Irms rated making capacity

1100 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1100 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

640 A 40 °C - 10 s for power circuit; 990 A 40 °C - 1 s for power circuit; 135 A 40 °C - 10 min for power circuit; 320 A 40 °C - 1 min for power circuit

Associated fuse rating

200 A gG at <= 690 V coordination type 1 for power circuit; 160 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

0.8 mOhm - Ith 125 A 50 Hz for power circuit

Power dissipation per pole

12.5 W AC-1

[Ui] rated insulation voltage

Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

3

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

4 Mcycles

Electrical durability

0.8 Mcycles 125 A AC-1 at Ue <= 440 V

Control circuit type

AC at 50/60 Hz

Coil technology

Without built-in suppressor module

Control circuit voltage limits

0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz; 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz; 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz

Inrush power in VA

245 VA 60 Hz cos phi 0.75 (at 20 °C); 245 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

26 VA 60 Hz cos phi 0.3 (at 20 °C); 26 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

6…10 W at 50/60 Hz

Operating time

20...35 ms closing; 6...20 ms opening

Maximum operating rate

3600 cyc/h at 60 °C

Connections - terminals

Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end; Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end; Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: solid without cable end; Power circuit: connector 2 4…25 mm² - cable stiffness: solid without cable end

Tightening torque

Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm; Power circuit: 12 N.m - on connector hexagonal screw head 4 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Mounting support

Plate; Rail

Standards

EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; CSA C22.2 No 14; UL 60947-4-1; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; IEC 60335-1:Clause 30.2

Product certifications

CCC; UL; CB Scheme; CSA; CE; UKCA; Marine; EAC

IP degree of protection

IP20 front face conforming to IEC 60529

Protective treatment

TH conforming to IEC 60068-2-30

Climatic withstand

conforming to IACS E10 exposure to damp heat

Permissible ambient air temperature around the device

-40…60 °C; 60…70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Vibrations contactor open (2 Gn, 5...300 Hz) ; Shocks contactor open (8 Gn for 11 ms) ; Vibrations contactor closed (3 Gn, 5...300 Hz) ; Shocks contactor closed (10 Gn for 11 ms)

Height

127 mm

Width

96 mm

Depth

125 mm

Product weight

1.76 kg

Warranty (in months)

18

EAN

3389110074130

HS Code

8536.41

• EAN 3389110074130
• MPN LC1D80004B7
