Schneider GV2ME Motor Protection - TeSys D, 9-14A

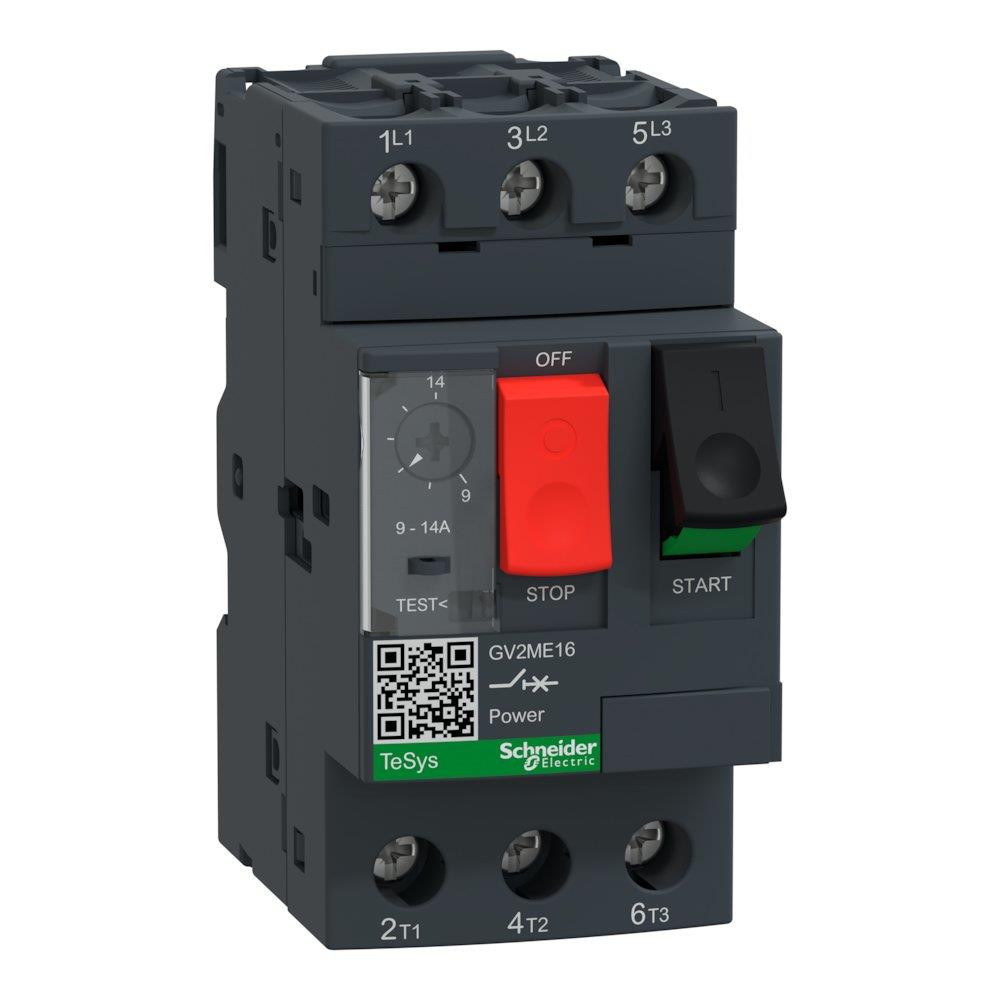

Schneider GV2ME Motor Protection. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, setting range 9 to 14 A. Supplied under manufacturer part number GV2ME16TQ, EAN 3389110343182, HS code 8536.20, country of origin France.

Product type

Motor protection and accessories

Product group

Components for panels and boxes

Series

TeSys D

Setting range

9 to 14 A

REACH SVHC substance above 0.1%

Lead, Octrizole

Sales unit

Pack

Carbon footprint (EPD)

1.6605 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

GV2ME16TQ

Range

TeSys Deca

Product name

TeSys GV2

Product or component type

Motor circuit breaker

Device short name

GV2ME

Device application

Motor protection

Trip unit technology

Thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

5.5 kW at 400/415 V AC 50/60 Hz; 7.5 kW at 500 V AC 50/60 Hz; 9 kW at 690 V AC 50/60 Hz; 11 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Push-button

[In] rated current

14 A

Thermal protection adjustment range

9…14 A conforming to IEC 60947-2

Magnetic tripping current

253.4 A

[Ith] conventional free air thermal current

14 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Connections - terminals

Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² - solid; Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² - flexible without cable end; Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² - flexible with cable end

Tightening torque

1.7 N.m - on screw clamp terminal

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate)

Mounting position

Horizontal; Vertical

Width

45 mm

Height

89 mm

Depth

78.5 mm

Product weight

0.26 kg

Quantity per set

Set of 24

Colour

Dark grey

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-2-40:Annex JJ; IEC/EN 60335-1:Clause 30.2

Product certifications

CCC; UL; CSA; EAC; ATEX; LROS (Lloyds register of shipping); BV; RINA; DNV-GL; UKCA

IK degree of protection

IK04

IP degree of protection

IP20 conforming to IEC 60529

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz

Operating altitude

<= 2000 m

Warranty (in months)

18

EAN

3389110343182

HS Code

8536.20
