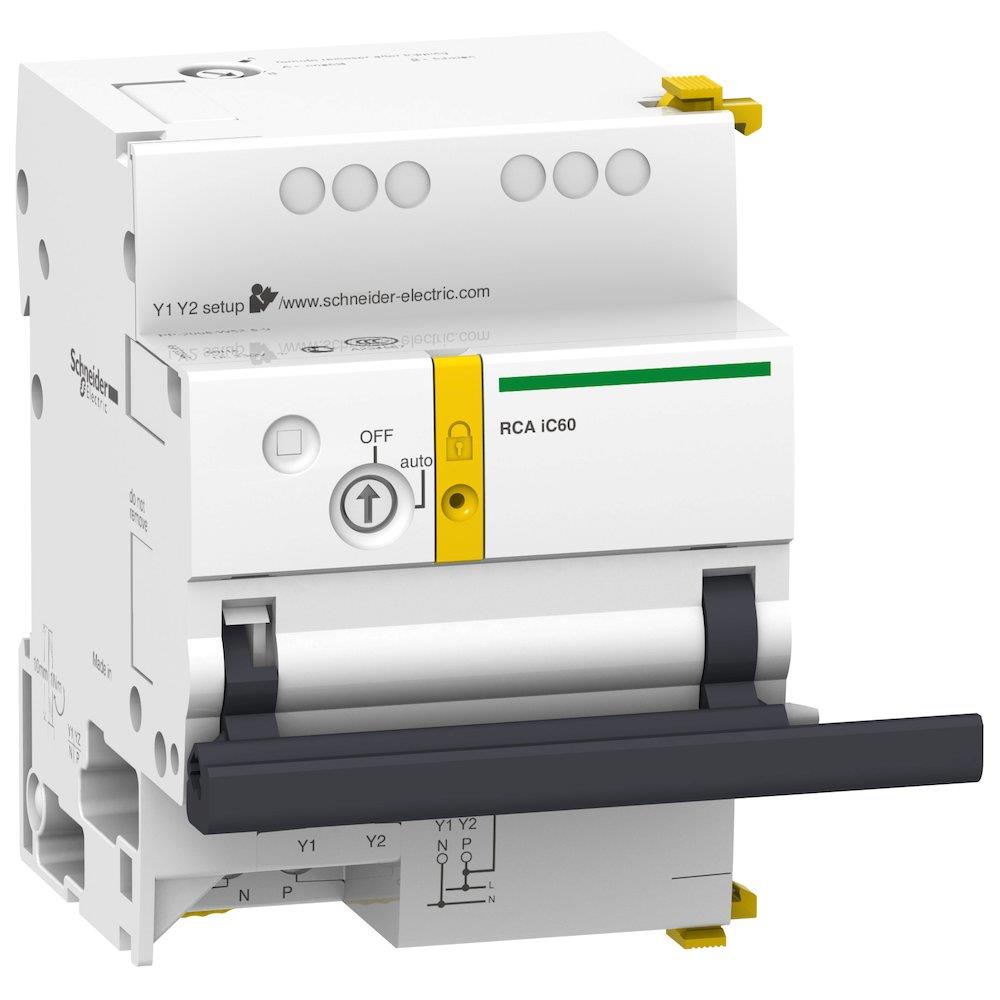

Schneider ACTI9 IC60 Motor Drive - 3606480097942
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 iC60 Motor Drive. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number A9C70112, EAN 3606480097942, HS code 8536.50, country of origin Spain.
Technical Specifications
- Product type
- Accessories for fuses
- Product group
- Components for panels and boxes
- REACH SVHC substance above 0.1%
- Lead, Diboron-trioxide, Lead-monoxide, Lead tetroxide, Octrizole
- Carbon footprint (EPD)
- 3.2267 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 85365080
- HS code
- 8536.50
- Manufacturer part number
- A9C70112
- range of product
- Acti9
- Product or component type
- Remote control auxiliary
- Device short name
- RCA iC60
- Signal contacts composition
- 1 OF volt-free contacts
- Signalling circuit voltage
- Volt-free contact 24...230 V 0.01…1 A AC
- Control type
- Remote control impulse and maintained 230 V AC 50/60 Hz
- Input current
- 5 mA impulse; 5 mA maintained
- Impulse duration
- >= 200 ms control circuit
- Response time
- < 500 ms
- [Us] rated supply voltage
- 230 V AC 50/60 Hz
- Power consumption in W
- 1 W
- [Ui] rated insulation voltage
- 400 V
- [Uimp] rated impulse withstand voltage
- 6 kV
- Value of setting
- Mode A: reclosing authorized after tripping; Mode B: reclosing inhibited after tripping; Auto: remote control authorized; Off: remote control inhibited
- Local signalling
- Flashing green LED: ready to operate; Flashing orange LED: not operational
- mounting mode
- Fixed
- Mounting support
- DIN rail
- Comb busbar and distribution block compatibility
- NO
- 9 mm pitches
- 7
- Height
- 93 mm
- Width
- 63 mm
- Depth
- 75.5 mm
- Product weight
- 400 g
- Colour
- White
- Electrical durability
- 10000 cycles
- Mechanical durability
- 10000 cycles
- Provision for padlocking
- Padlockable
- Wire stripping length
- Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection
- Tightening torque
- Power supply: 1 N.m; Input: 1 N.m; Auxiliary output: 0.7 N.m
- Range compatibility
- Acti9 iC60; Acti9 iC65; Acti9 iMDU voltage adaptor
- Product compatibility
- 1P + N iC60; 2P iC60; 1P iC60; 1P iC65; 2P iC65; iMDU
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to IEC 60947
- Overvoltage category
- II
- Tropicalisation
- 2
- Relative humidity
- 93 % at 40 °C
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…60 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Warranty (in months)
- 18
- EAN
- 3606480097942
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480097942
- MPN A9C70112
