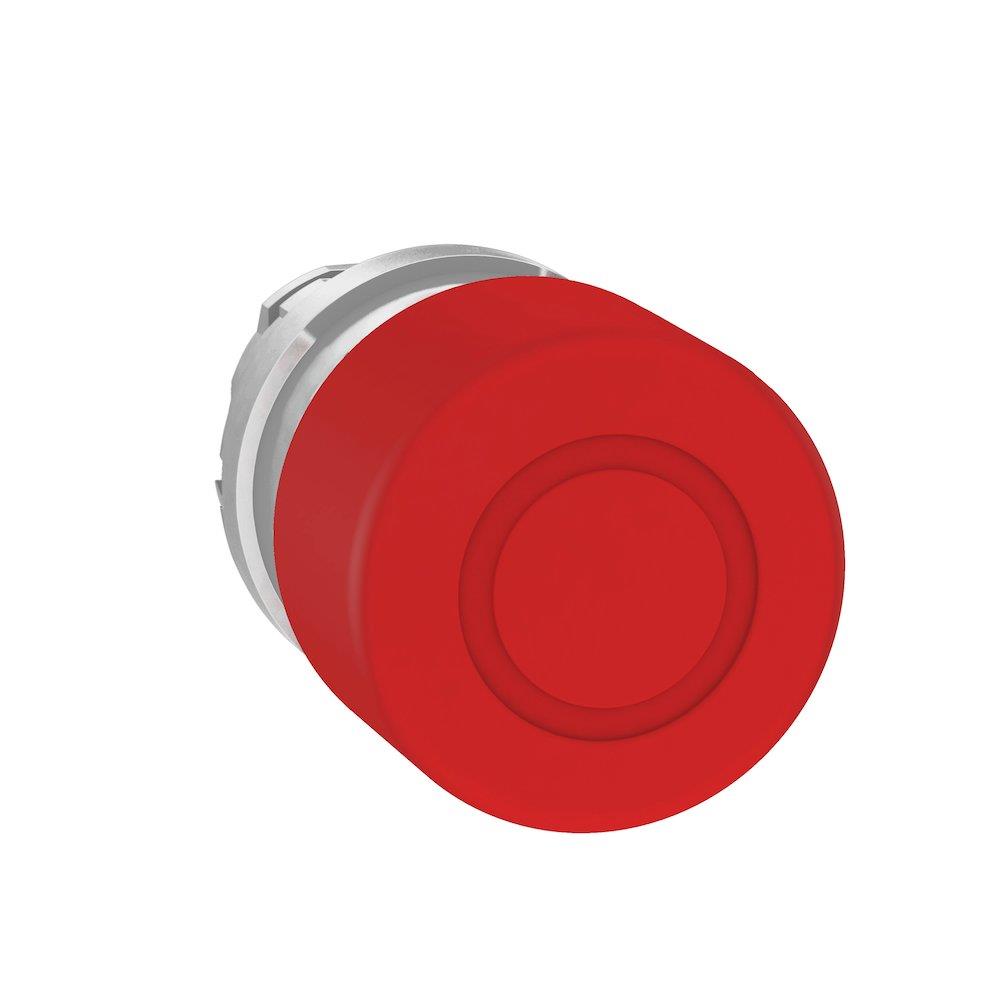

Schneider ZB4 Emergency Stop Head - Harmony XB4, 30mm, red

Schneider ZB4 Emergency Stop Head. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, diameter 30 mm, color Red. Supplied under manufacturer part number ZB4BT844, EAN 3389119048040, HS code 8538.90, country of origin Czechia.

Product type

Pedal pressure and emergency stop button

Product group

Push buttons and signal units

Series

Harmony XB4

Diameter

30 mm

Color

Red

Carbon footprint (EPD)

0.3399 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB4BT844

Range of product

Harmony XB4

Product or component type

Head for emergency switching off push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Push-pull

Operator profile

Red mushroom Ø 30 mm, unmarked

Head type

Standard

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

56 mm

Product weight

0.078 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

300000 cycles

Electrical composition code

C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C10 for <4 contacts using single and double blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

GB 14048.5; UL 508; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; ISO 13850; IEC 60947-5-5; IEC 60364-5-53; JIS C8201-5-1; IEC 60947-5-4; JIS C8201-1

Product certifications

DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

42

Warranty (in months)

18

EAN

3389119048040

HS Code

8538.90

• EAN 3389119048040
• MPN ZB4BT844
