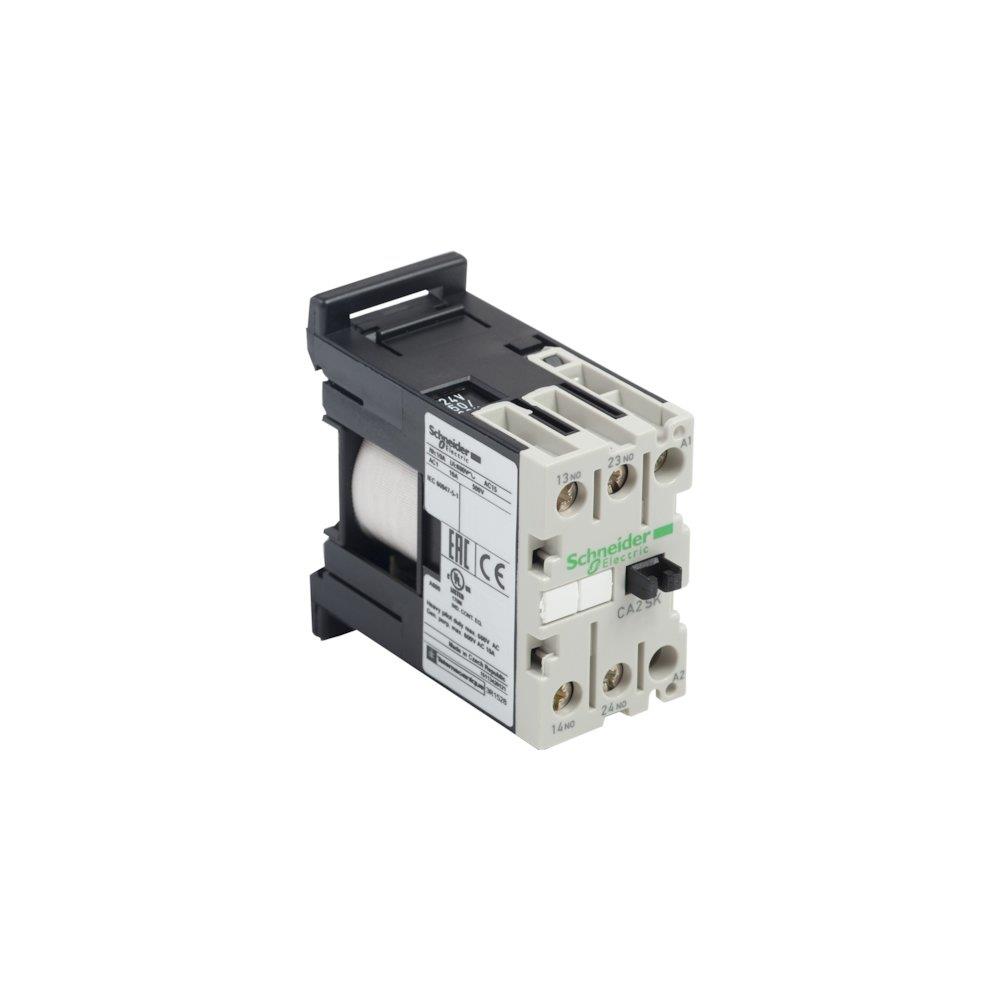

Schneider CA2SK Control Relay - TeSys SK, 2NO, 24V

Schneider CA2SK Control Relay. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys SK, contact type 2NO, voltage 24 V. Supplied under manufacturer part number CA2SK20B7, EAN 3389110564143, HS code 8536.41, country of origin Czechia.

Product type

Contactors and thermal relays motor control

Product group

Components for panels and boxes

Series

TeSys SK

Contact type

2NO

Voltage

24 V

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

1.1175 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85364190

HS code

8536.41

Manufacturer part number

CA2SK20B7

Range

TeSys

Product name

TeSys CASK

Product or component type

Control relay

Device short name

CA2SK

Contactor application

Control circuit

Utilisation category

DC-13; AC-15

Pole contact composition

2 NO

[Ue] rated operational voltage

<= 690 V <= 400 Hz

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

24 V AC 50/60 Hz

[Ith] conventional free air thermal current

10 A (at 55 °C)

Associated fuse rating

10 A gL conforming to VDE 0660; 10 A gL conforming to IEC 60947

[Ui] rated insulation voltage

690 V conforming to IEC 60947; 690 V conforming to VDE 0110 group C; 690 V conforming to BS 5424; 690 V conforming to UL 508; 690 V conforming to CSA C22.2 No 14

Mounting support

Rail; Plate

Connections - terminals

Screw clamp terminals 1 cable(s) 1.5…6 mm²solid; Screw clamp terminals 2 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.5…6 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.35…6 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.35…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.35…2.5 mm²flexible without cable end

Tightening torque

0.8 N.m - on screw clamp terminals pozidriv No 1 screw head

Control circuit voltage limits

Drop-out: 0.2...0.75 Uc (at <50 °C); Operational: 0.85...1.1 Uc (at <50 °C)

Operating time

6...8 ms coil de-energisation and NO opening; 7...14 ms coil energisation and NO closing

Mechanical durability

10 Mcycles

Maximum operating rate

1200 cyc/h

Inrush power in VA

16 VA (at 20 °C)

Hold-in power consumption in VA

4.2 VA (at 20 °C)

Heat dissipation

1.4 W

Height

56 mm

Width

27 mm

Depth

55.5 mm

Product weight

0.132 kg

Standards

EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ

Product certifications

CB Scheme; cULus; EAC; CE; UKCA

IP degree of protection

IP2X

Protective treatment

TC conforming to IEC 60068

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-50…70 °C

Operating altitude

2000 m without derating

Warranty (in months)

18

EAN

3389110564143

HS Code

8536.41

• EAN 3389110564143
• MPN CA2SK20B7
