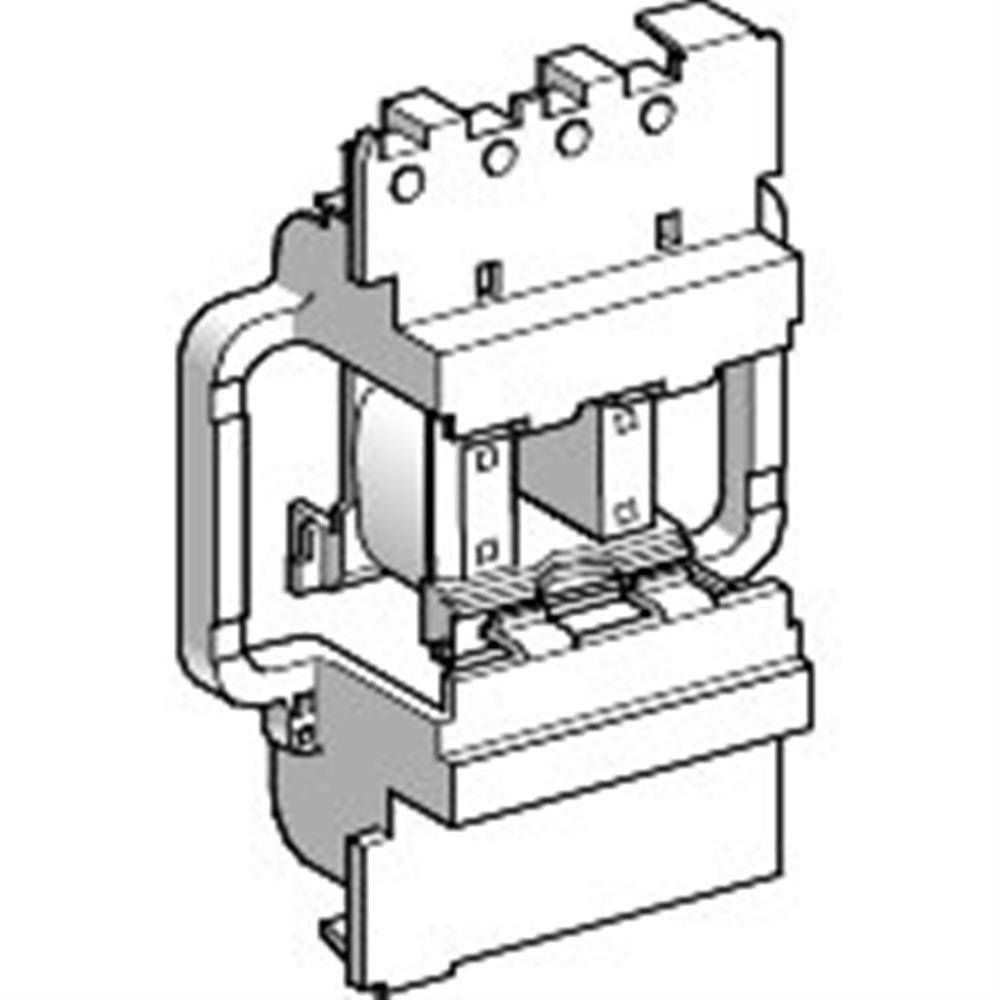

Schneider LX1D Coil - TeSys D 3389110868418

Schneider LX1D Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LX1D8Q7, EAN 3389110868418, HS code 8505.90, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

1.4615 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85059029

HS code

8505.90

Manufacturer part number

LX1D8Q7

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1D8

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

380 V AC 50/60 Hz

Average resistance

21011 Ohm at 20 °C

Inductance of closed circuit

482.42 H

Product compatibility

LC1D115; LC1D150

Mechanical durability

8 Mcycles

Maximum operating rate

1200 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C); Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)

Inrush power in VA

280…350 VA 60 Hz cos phi 0.9 (at 20 °C); 280…350 VA 50 Hz cos phi 0.9 (at 20 °C)

Hold-in power consumption in VA

2…18 VA 60 Hz cos phi 0.9 (at 20 °C); 2…18 VA 50 Hz cos phi 0.9 (at 20 °C)

Heat dissipation

3…4.5 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

EAN

3389110868418

HS Code

8505.90

• EAN 3389110868418
• MPN LX1D8Q7
