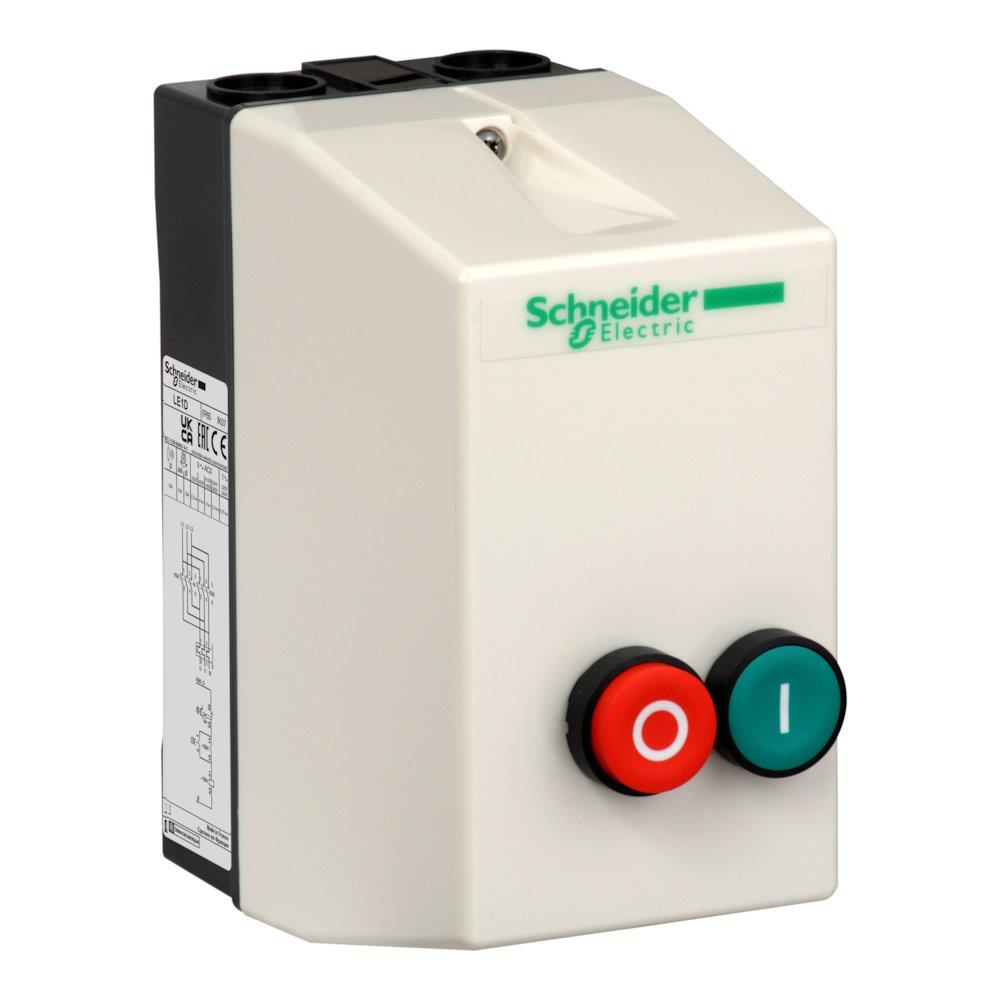

Schneider LE1D Motor Starter - 400V, 11kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LE1D Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 11 kW, protection class (ip) 65. Supplied under manufacturer part number LE1D25V7, EAN 3389110586213, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 400 V
- Power
- 11 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 12.6787 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LE1D25V7
- GTIN (EAN)
- 3389110586213
- Range
- TeSys
- Product name
- TeSys LE
- Device short name
- LE1D
- Product or component type
- Enclosed DOL starter
- Device application
- Standard
- Utilisation category
- AC-3
- Device composition
- Thermal overload relay ordered separately; Contactor
- Control type
- Push-button start green I; Push-button stop/reset red O
- Motor power kW
- 11 kW at 380/400 V AC 50/60 Hz; 11 kW at 415 V AC 50/60 Hz; 11 kW at 440 V AC 50/60 Hz; 15 kW at 500 V AC 50/60 Hz; 15 kW at 660/690 V AC 50/60 Hz; 5.5 kW at 220/230 V AC 50/60 Hz
- [Uc] control circuit voltage
- 400 V AC 50/60 Hz
- [Ith] Conventional free air thermal current
- 22 A
- Cable entry number
- 2 ISO20 top; 2 ISO25 top; 2 ISO20 bottom; 2 ISO25 bottom
- Width
- 101 mm
- Height
- 201 mm
- Depth
- 153.5 mm
- Product weight
- 1.015 kg
- Standards
- IEC 60947-4-1
- Product certifications
- CB Scheme; CE; UKCA
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 60529
- Ambient air temperature for operation
- -5…40 °C
- Material
- Polycarbonate
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110586213
- MPN LE1D25V7
