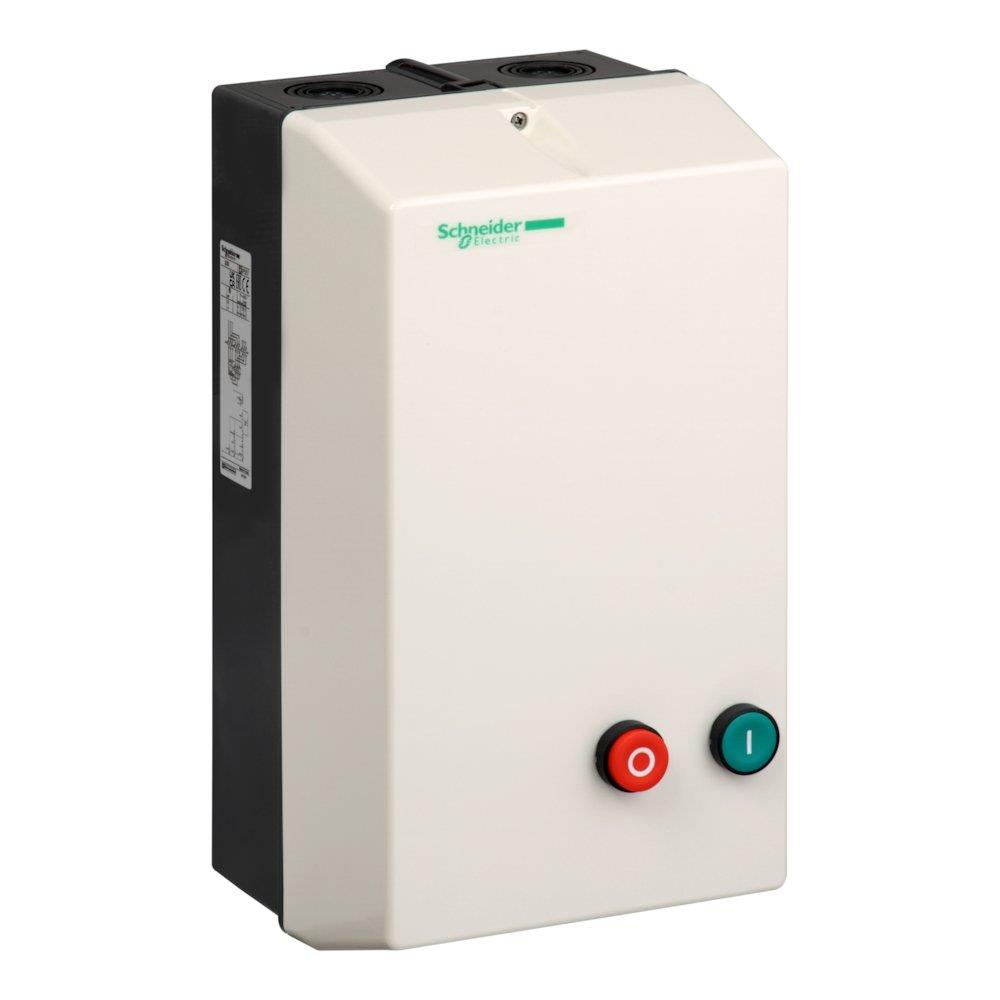

Schneider LE3D Y/D Starter - 400V, 30kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LE3D Y/D Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 30 kW, protection class (ip) 65. Supplied under manufacturer part number LE3D35V7, EAN 3389110628586, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 400 V
- Power
- 30 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 34.9548 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LE3D35V7
- GTIN (EAN)
- 3389110628586
- Range
- TeSys
- Product name
- TeSys LE
- Device short name
- LE3D
- Product or component type
- Enclosed star-delta starter
- Device application
- Standard
- Material
- Polycarbonate
- Utilisation category
- AC-3
- Device composition
- Thermal overload relay ordered separately; Star-delta contactors; Mechanical interlock
- [Ie] rated operational current
- 35 A AC-3
- Motor power kW
- 11 kW at 220 V; 22 kW at 415 V; 26 kW at 440 V; 26 kW at 380/400 V
- [Uc] control circuit voltage
- 400 V AC 50/60 Hz
- Control type
- Push-button start green I; Push-button stop/reset red O
- Connections - terminals
- Power circuit: screw clamp terminals; Control circuit: screw clamp terminals
- Cable entry number
- 2 ISO20 top; 2 ISO25 top; 2 ISO32 top; 2 ISO40 top; 2 ISO20 bottom; 2 ISO25 bottom; 2 ISO32 bottom; 2 ISO40 bottom
- Width
- 186 mm
- Height
- 348 mm
- Depth
- 175.5 mm
- Product weight
- 5.16 kg
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 60529
- Standards
- IEC 60947-4-1
- Ambient air temperature for operation
- -5…40 °C
- Environmental characteristic
- Standard environment
- Product certifications
- UKCA
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110628586
- MPN LE3D35V7
More from Schneider Electric
Schneider Electric
Schneider ClimaSys CU Filter - Polyurethane, NSYCUF800R
Schneider Electric
Schneider LE1D Motor Starter - 400V, 11kW, 65
LE1D25V7
Schneider Electric

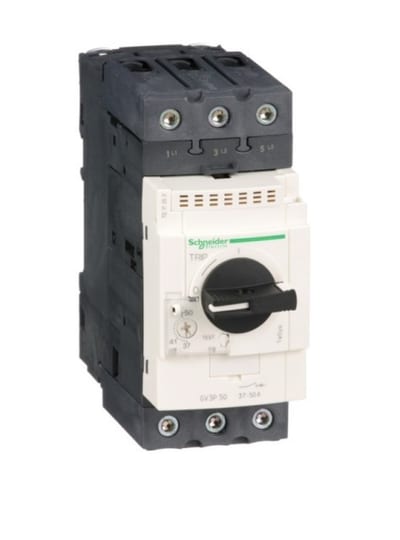

Schneider Electric TeSys GV3P40 Motor Protection Circuit Breaker 30–40 A
