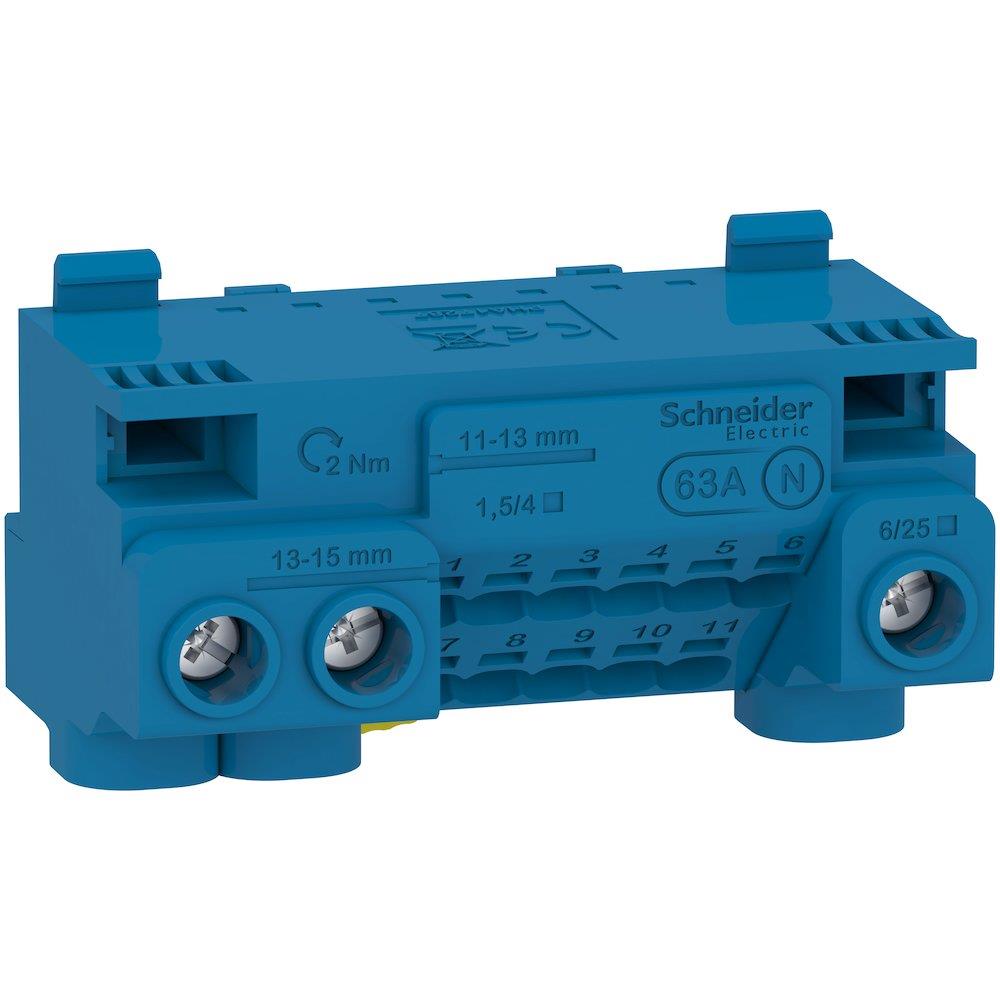

Schneider RESI9 XP Terminal block blue - 3606489579982

Schneider Resi9 XP Terminal block blue. Group and scoreboards (Electrical Engineering / Tables, cabinets, and boxes). Supplied under manufacturer part number LGYT1N14, EAN 3606489579982, HS code 8536.90, country of origin Italy.

Product type

Group and scoreboards

Product group

Tables, cabinets, and boxes

REACH SVHC substance above 0.1%

None

Carbon footprint (EPD)

0.6477 kg CO2e per pcs

Country of origin

Italy

Customs tariff code (EU CN)

85369010

HS code

8536.90

Manufacturer part number

LGYT1N14

Range

Linergy

Product or component type

Terminal block

Accessory / separate part category

Connection accessory

Range compatibility

Resi9 enclosure; Pragma enclosure; Kaedra enclosure

Colour

Blue

Provided equipment

1.0 x jumper

Enclosure mounting

Flush; Surface

[In] rated current

63 A

[Ue] rated operational voltage

440 V AC

Number of terminal blocks

1 neutral (screw and screwless terminals) with 14 outgoers

Distribution block outgoers

3 x 25 mm² for neutral; 11 x 4 mm² for neutral

Connections - terminals

Screwless terminals (neutral) , 11.0 x 6 mm² (rigid) ; Screw terminals (neutral) , 3.0 x 25 mm² (semi-rigid) ; Screwless terminals (neutral) , 11.0 x 4 mm² (flexible) ; Screw terminals (neutral) , 3.0 x 25 mm² (flexible) ; Screwless terminals (neutral) , 11.0 x 6 mm² (semi-rigid) ; Screwless terminals (neutral) , 11.0 x 4 mm² (flexible with ferrule) ; Screw terminals (neutral) , 3.0 x 16 mm² (rigid)

Free slots

2 for jumper to connect an other terminal block

Width

67.2 mm

Height

45.5 mm

Depth

40.5 mm

Market segment

Small commercial; Residential

Ambient air temperature for storage

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

40

Number of Units in Package 3

320

Warranty (in months)

18

EAN

3606489579982

HS Code

8536.90

• EAN 3606489579982
• MPN LGYT1N14
