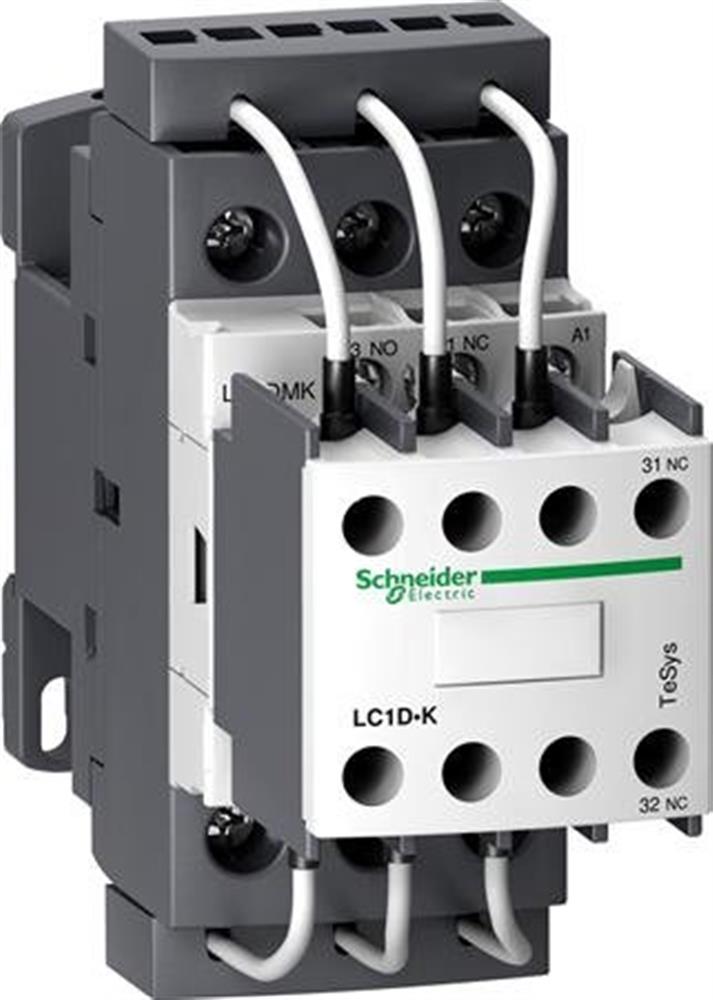

Schneider LC1D Contactor - TeSys D, 3P, 230V

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, number of poles 3P, voltage 230 V. Supplied under manufacturer part number LC1DMKP7, EAN 3606480401855, HS code 8536.49, country of origin France.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

Number of poles

3P

Voltage

230 V

Contact type

3NO

Carbon footprint (EPD)

4.0136 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85364900

HS code

8536.49

Manufacturer part number

LC1DMKP7

Range

TeSys; TeSys Deca

Product name

TeSys LC1D.K; TeSys Deca

Product or component type

Capacitor duty contactor

Device short name

LC1DMK

Device application

Control

Contactor application

Power factor correction

Utilisation category

AC-6b

Poles description

3P

power pole contact composition

3 NO

Device location in system

Line interruption; Inside delta interruption

[Ue] rated operational voltage

Power circuit: 690 V AC 50/60 Hz

Reactive power rating

14 kvar at 230 V AC 50 Hz 60 °C; 25 kvar at 400 V AC 50 Hz 60 °C; 27 kvar at 440 V AC 50 Hz 60 °C; 42 kvar at 690 V AC 50 Hz 60 °C

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

Auxiliary contact composition

1 NO + 2 NC instantaneous

Electrical durability

300000 cycles at Ue 400 V; 200000 cycles at Ue 690 V

Mounting support

DIN rail; Plate

Standards

EN/IEC 60947-1; EN/IEC 60947-4-1; IEC 60335-1

Product certifications

IECEE CB Scheme; UKCA

Connections - terminals

Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid; Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid; Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end

Tightening torque

Control circuit: 1.7 N.m - on screw clamp terminals; Power circuit: 2.5 N.m - on screw clamp terminals

Maximum operating rate

240 cyc/h

Auxiliary contacts type

type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

IP degree of protection

IP20 front face conforming to IEC 60529

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-60…80 °C

Operating altitude

0...3000 m

Height

125 mm

Width

45 mm

Depth

127 mm

Product weight

0.63 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

48

Warranty (in months)

18

EAN

3606480401855

HS Code

8536.49
