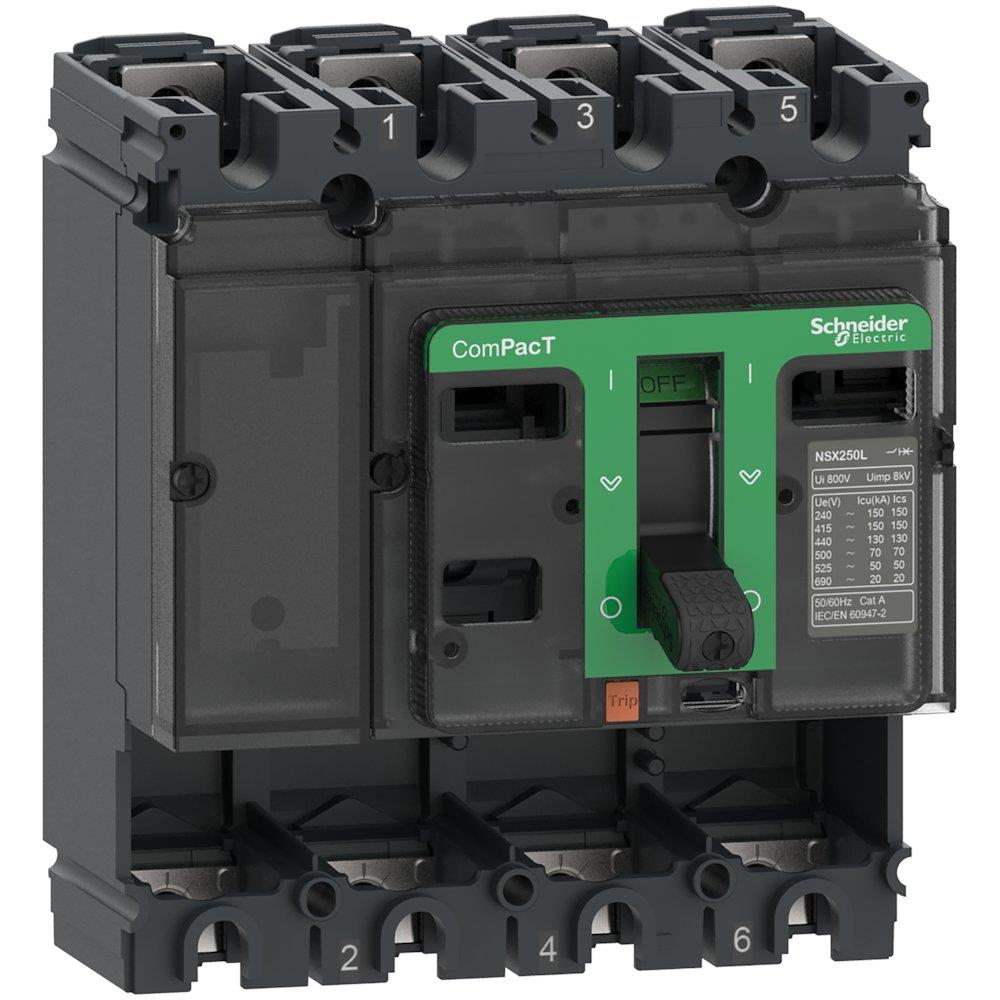

Schneider NSX250F Maximum breaker - 3606481999870

Schneider NSX250F Maximum breaker. Molded case circuit breakers (Electrical Engineering / Components for panels and boxes). Supplied under manufacturer part number C25F4, EAN 3606481999870, HS code 8536.20, country of origin Poland.

Product type

Molded case circuit breakers

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

11.4000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Poland

Customs tariff code (EU CN)

85362090

HS code

8536.20

Manufacturer part number

C25F4

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX250F

Product or component type

Basic frame

Device application

Distribution

Poles description

4P

Neutral position

Left

[In] rated current

250 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

85 kA at 240 V AC 50/60 Hz conforming to UL 508; 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA at 480 V AC 50/60 Hz conforming to UL 508; 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 15 kA at 600 V AC 50/60 Hz conforming to UL 508

Breaking capacity code

F 36 kA 415 V AC

Control type

Toggle

mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

20000 cycles conforming to IEC 60947-2

Electrical durability

10000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 10000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 20000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 5000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Protection type

Without protection

Width (W)

140 mm

Height (H)

161 mm

Depth (D)

86 mm

Standards

EN/IEC 60947-2; UL 60947-4-1

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

EAN

3606481999870

HS Code

8536.20

• EAN 3606481999870
• MPN C25F4
